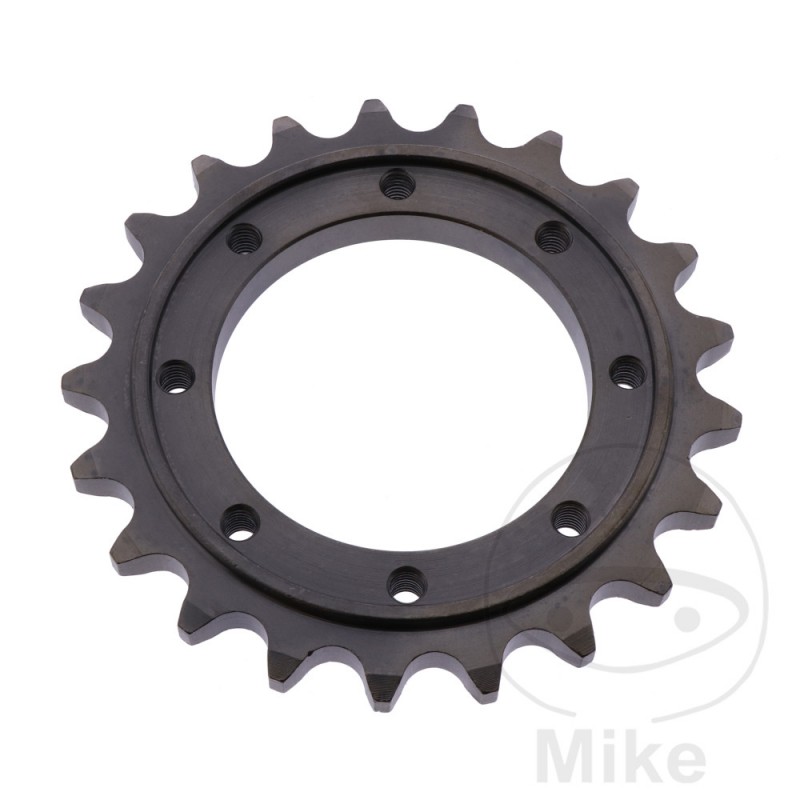

ESJOT round drive sprocket 21T P-525 Ø17.2/20MM 726.04.31

ESJOT gear designed specifically for high OEM requirements and among the world's best sprockets on the market.

A special steel, high-quality hardening and optimum gearing guarantee extremely high strength and durability - ideal for high-wear conditions in all areas

- Steel 16 MnCR 5

- Worked on CNC lathes

- Hardening of 700 HV 40 for a depth of 0.4 mm

- Modern broaching guarantees an exact fit size on the motor shaft

- Radial and axial runout tolerance of less than 0.1mm

- 100% Made in Germany

- OEM quality
DIVISION: 525
CENTRAL FIXATION: ROUND
INSIDE DIAMETER MIN.: 62 MM
MAX INTERNAL DIAMETER: 62 MM
HOLES QUANTITY: 8
HOLES DISTANCE: 74 MM
WIDTH: 12MM
VERSION: STANDARD
QTY TEETH: 21


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Aprilia SRV 850 ie 76 CV, 56 kw 2cil. M55103/M55104 Bastidores: --- 2012-2017
Aprilia SRV 850 ie ABS 76 CV, 56 kw 2cil. M55103/M55104 Bastidores: --- 2012-2018
Gilera GP 800 34 CV, 25 kw 2cil. M55100 Bastidores: --- 2009-2014
Gilera GP 800 34 CV, 25 kw 2cil. M55100 Bastidores: ZAPM55100 henceforth0001001-- 2007-2008
Gilera GP 800 75 CV, 55 kw 2cil. M55100 Bastidores: --- 2009-2014
Gilera GP 800 75 CV, 55 kw 2cil. M55100 Bastidores: ZAPM55100 henceforth0001001-- 2007-2008
