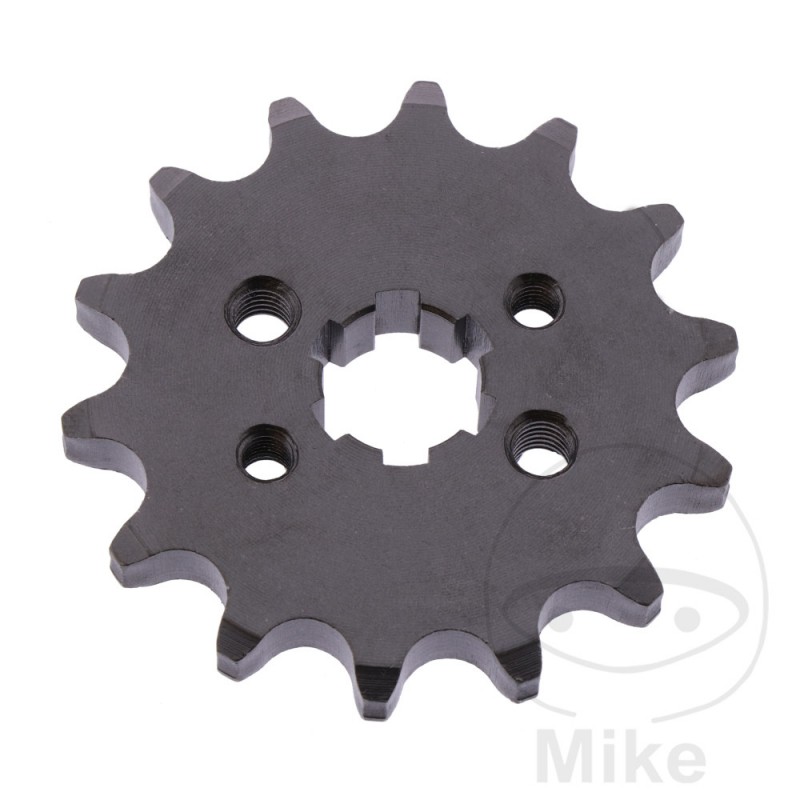

ESJOT coarse gear transmission pinion 14T P-428 4 Ø14/17MM 726.04.16

ESJOT sprocket has been specifically developed to meet OEM requirements and is among the world's best sprockets on the market.

A special steel, high-quality hardening and precise teeth provide extremely high strength and durability - ideal for wear-intensive conditions in all areas

- Steel 16 MnCR 5

- worked on CNC lathes

- hardening of 700 HV 40, for a depth of 0.4 mm

- modern broaching ensure a precise fit size on the motor shaft

- radial and axial run-out tolerance of less than 0.1 mm

- 100% Made in Germany

- OEM quality
DIVISION: 428
CENTRAL FIXING: COARSE GEAR
INSIDE DIAMETER MIN.: 14 MM
MAX INTERNAL DIAMETER: 17 MM
INNER GEAR (QUANTITY OF TEETH): 6
INNER GEAR (DISTANCE): 4 MM
HOLES QUANTITY: 2
HOLES DISTANCE: 28 MM
WIDTH: 9MM
VERSION: STANDARD
QTY TEETH: 14


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
FBMondial HPS 125 i CBS 13,6 CV, 10 kw 1cil. - Bastidores: --- 2017-2019
FBMondial HPS 125 i Limited Edition CBS 13,6 CV, 10 kw 1cil. - Bastidores: --- 2019
FBMondial SMX 125 i Enduro CBS 15 CV, 11 kw 1cil. - Bastidores: --- 2017-2021
FBMondial SMX 125 i Supermoto CBS 15 CV, 11 kw 1cil. - Bastidores: --- 2017-2020
FBMondial Sport Classic 125 i Pagani 1948 ABS 13,6 CV, 10 kw 1cil. - Bastidores: --- 2020-2021
Malaguti Dune 125 Enduro CBS 15 CV, 11 kw 1cil. - Bastidores: --- 2019-2020
Malaguti Dune 125 Enduro CBS Euro4 15 CV, 11 kw 1cil. - Bastidores: --- 2021
Malaguti Dune 125 X Black Edition CBS 15 CV, 11 kw 1cil. - Bastidores: --- 2019-2020
Malaguti Dune 125 X Black Edition CBS Euro4 15 CV, 11 kw 1cil. - Bastidores: --- 2021
Malaguti Monte Pro 125 Anniversay Edition CBS 15 CV, 11 kw 1cil. - Bastidores: --- 2020-2021
Malaguti Monte Pro 125 CBS 15 CV, 11 kw 1cil. - Bastidores: --- 2019-2021
Malaguti RST 125 CBS 15 CV, 11 kw 1cil. - Bastidores: --- 2019-2021
Malaguti XSM 125 Supermoto CBS 15 CV, 11 kw 1cil. - Bastidores: --- 2019-2020
Malaguti XTM 125 Enduro CBS 15 CV, 11 kw 1cil. - Bastidores: --- 2019-2020
UM DSR 125 EX i 14.8 CV, 11 kw 1cil. - UM125-DEX Bastidores: --- 2018-2020
UM DSR 125 i Adventure llanta de fundición 14.8 CV, 11 kw 1cil. - UM125-ADV Bastidores: --- 2018-2020
UM DSR 125 SM i Supermotard 14.8 CV, 11 kw 1cil. - UM125-DSM Bastidores: --- 2018-2020
UM DSR 125 TT ie Adventure llanta de radios 14.8 CV, 11 kw 1cil. - UM125-ADT Bastidores: --- 2018-2020
UM Renegade 125 i Scrambler Classic llanta de radios 14.8 CV, 11 kw 1cil. - UM125-SC Bastidores: --- 2018-2020
UM Renegade 125 S i Scrambler Sport llanta de fundición 14.8 CV, 11 kw 1cil. - UM125-SS Bastidores: --- 2018-2020
Zündapp ZXA 125 ie Adventure CBS 15 CV, 11 kw 1cil. - Bastidores: --- 2018-2020
Zündapp ZXA 125 TT ie Adventure CBS 15 CV, 11 kw 1cil. - Bastidores: --- 2018-2021
Zündapp ZXE 125 ie Enduro CBS 15 CV, 11 kw 1cil. - Bastidores: --- 2018-2021
Zündapp ZXM 125 ie Supermoto CBS 15 CV, 11 kw 1cil. - Bastidores: --- 2018-2021
Zündapp ZXS 125 ie Scrambler CBS 15 CV, 11 kw 1cil. - Bastidores: --- 2018-2021
Zündapp ZXS 125 S ie Sport CBS 15 CV, 11 kw 1cil. - Bastidores: --- 2018-2021
