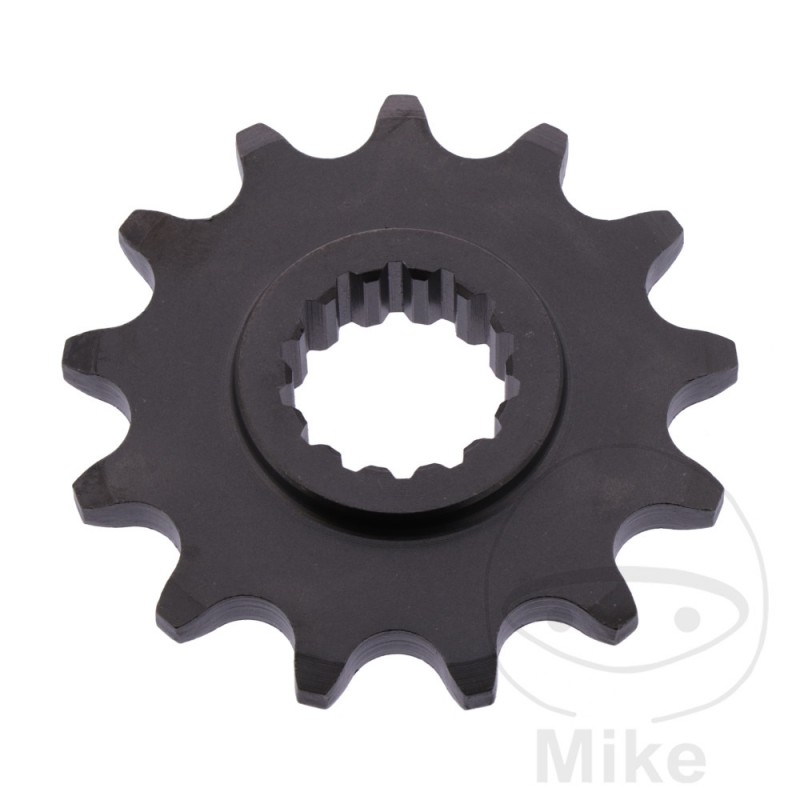

ESJOT Fine gear transmission pinion 13T P-520 Ø22/25MM 726.03.37

ESJOT gear designed specifically for high OEM requirements and among the world's best sprockets on the market.

A special steel, high-quality hardening and optimum gearing guarantee extremely high strength and durability - ideal for high-wear conditions in all areas

- Steel 16 MnCR 5

- Worked on CNC lathes

- Hardening of 700 HV 40 for a depth of 0.4 mm

- Modern broaching guarantees an exact fit size on the motor shaft

- Radial and axial runout tolerance of less than 0.1mm

- 100% Made in Germany

- OEM quality
DIVISION: 520
CENTRAL FIXATION: FINE GEAR
INSIDE DIAMETER MIN.: 22 MM
MAX INTERNAL DIAMETER: 25 MM
INNER GEAR (QUANTITY OF TEETH): 14
QUANTITY OF HOLES: WITHOUT HOLE
WIDTH: 11..5MM
VERSION: STANDARD
QTY TEETH: 13


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Sherco SC 250 R 2T Factory Cross Country 1cil. - Bastidores: --- 2019-2020
Sherco SC 250 R 2T Racing 1cil. - Bastidores: --- 2017
Sherco SC 300 R 2T Factory Cross Country 1cil. - Bastidores: --- 2019-2020
Sherco SC 300 R 2T Racing 1cil. - Bastidores: --- 2017
Sherco SCF 450 Factory 1cil. - Bastidores: --- 2020
Sherco SCF 450 R Factory 1cil. - Bastidores: --- 2019
Sherco SCF 500 R Factory 1cil. - Bastidores: --- 2019-2020
Sherco SE 250 2T Enduro 1cil. - Bastidores: --- 2014-2017
Sherco SE 250 R 2T Factory 1cil. - Bastidores: --- 2014-2017
Sherco SE 250 R 2T Factory 1cil. - Bastidores: --- 2019-2020
Sherco SE 250 R 2T Factory 19 CV, 14 kw 1cil. - Bastidores: --- 2018
Sherco SE 250 R 2T Racing 1cil. - Bastidores: --- 2014-2020
Sherco SE 250 R 2T Sixdays 1cil. - Bastidores: --- 2015-2018
Sherco SE 300 2T Enduro 1cil. - Bastidores: --- 2014-2017
Sherco SE 300 R 2T Factory 1cil. - Bastidores: --- 2014-2020
Sherco SE 300 R 2T Racing 1cil. - Bastidores: --- 2014-2017
Sherco SE 300 R 2T Racing 1cil. - Bastidores: --- 2019-2020
Sherco SE 300 R 2T Racing 20,4 CV, 15 kw 1cil. - Bastidores: --- 2018
Sherco SE 300 R 2T Sixdays 1cil. - Bastidores: --- 2015-2018
Sherco SE 450 45 i Enduro 1cil. - Bastidores: --- 2007-2008
Sherco SE 450 45 i Enduro Factory Replica 1cil. - Bastidores: --- 2007
Sherco SE 450 45 iF Enduro 1cil. - Bastidores: --- 2009-2011
Sherco SE 450 45 iFR Racing 1cil. - Bastidores: --- 2010-2011
Sherco SE 450 i Enduro 1cil. - Bastidores: --- 2012
Sherco SE 450 iR Racing 1cil. - Bastidores: --- 2012-2014
Sherco SE 510 51 i Enduro 1cil. - Bastidores: --- 2007-2008
Sherco SE 510 51 i Enduro Factory Replica 1cil. - Bastidores: --- 2007
Sherco SE 510 51 iF Enduro 1cil. - Bastidores: --- 2009-2011
Sherco SE 510 51 iFR Racing 1cil. - Bastidores: --- 2010-2011
Sherco SE 510 i Enduro 1cil. - Bastidores: --- 2012
Sherco SE 510 iR Racing 1cil. - Bastidores: --- 2012-2014
Sherco SEF 250 R Factory 1cil. - Bastidores: --- 2015
Sherco SEF 300 R Factory 1cil. - Bastidores: --- 2015
Sherco SEF 450 R Factory 1cil. - Bastidores: --- 2016-2023
Sherco SEF 450 R Racing 1cil. - Bastidores: --- 2015-2021
Sherco SEF 450 R Sixdays 1cil. - Bastidores: --- 2016-2018
Sherco SEF 500 R Factory 1cil. - Bastidores: --- 2019-2021
Sherco SEF 500 R Factory 1cil. - Bastidores: --- 2023-2023
Sherco SEF 500 R Racing 1cil. - Bastidores: --- 2019-2021
Sherco SM 450 45 i Supermotard 1cil. - Bastidores: --- 2007
Sherco SM 510 51 i Supermotard 1cil. - Bastidores: --- 2007-2010
