JT SPROCKETS Fine gear transmission pinion 12T P-520 Ø18/22MM 726.03.20

JT Sprockets Manufacturing is today the largest and most modern production facility for sprockets and pinions worldwide,

equipped, among others, with the latest generation of CNC manufacturing machines.

JT Sprockets produces the entire range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages, going through more than ten individual quality controls to successfully leave the production line.

JT Sprockets manufactures the right way - turning, milling and drilling! This is the only way to achieve the highest quality with the tightest tolerances and the best tooth profile.

After post heat treatment, each item is checked by hand, thus setting new JT Sprockets quality standards in the motorcycle industry.

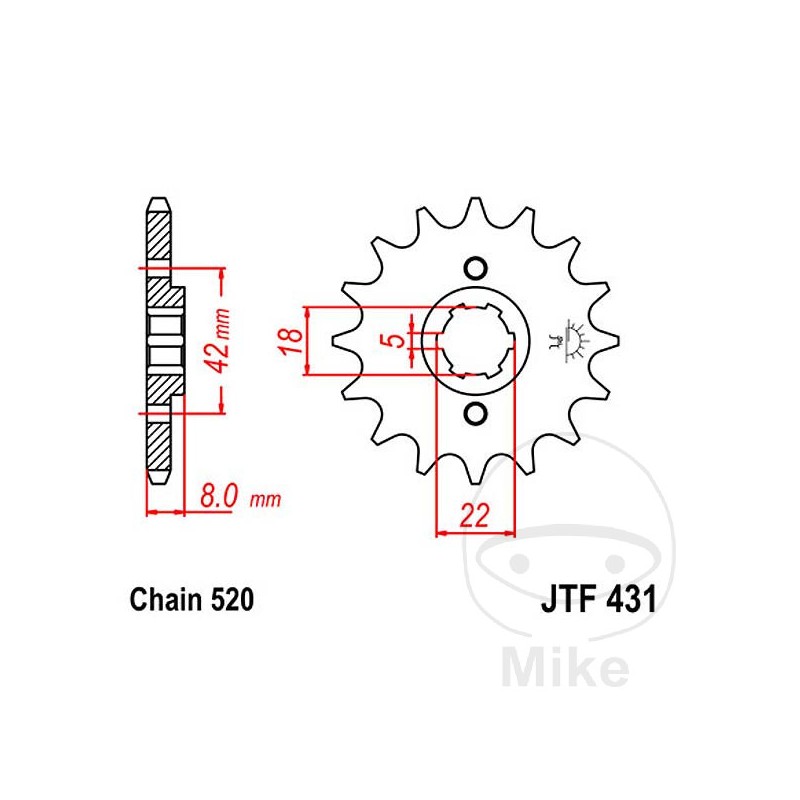

DIVISION: 520
CENTRAL FIXATION: FINE GEAR
INSIDE DIAMETER MIN.: 18 MM
MAX INTERNAL DIAMETER: 22 MM
INNER GEAR (DISTANCE): 5 MM
HOLES QUANTITY: 2
HOLES DISTANCE: 42 MM
WIDTH: 8MM
VERSION: STANDARD
QTY TEETH: 12


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki PE 250 35 CV, 26 kw 1cil. PE250 B Bastidores: PE250-10001-PE250-15664 1977
Suzuki PE 250 35 CV, 26 kw 1cil. PE250 C Bastidores: PE250-15665-PE250-22662 1978
Suzuki PE 250 35 CV, 26 kw 1cil. PE250 N Bastidores: PE250-22663-- 1979
Suzuki PE 250 35 CV, 26 kw 1cil. PE250 T Bastidores: PE250-200030-PE250-204150 1980
Suzuki PE 250 35 CV, 26 kw 1cil. PE250 X Bastidores: PE250-204151-- 1981
Suzuki PE 250 38,5 CV, 28,5 kw 1cil. PJ11A Z Bastidores: PJ11A-2100001-- 1982
Suzuki PE 400 1cil. PE400 T Bastidores: PE400-300001-PE400-303646 1980
Suzuki PE 400 1cil. PE400 X Bastidores: PE400-303647-- 1981
Suzuki RM 250 37 CV, 27 kw 1cil. RM250 N Bastidores: RM250-38554-RM250-43877 1979
Suzuki RM 250 37 CV, 27 kw 1cil. RM250 T Bastidores: RM250-43878-RM250-100000 1980
Suzuki RM 250 37 CV, 27 kw 1cil. RM250 X Bastidores: RM250-100001-RM250-102087 1981
Suzuki RM 400 1cil. RM400 C Bastidores: RM400-100001-RM400-105259 1978
Suzuki RM 400 1cil. RM400 N Bastidores: RM400-105260-RM400-109705 1979
Suzuki RM 400 1cil. RM400 T Bastidores: RM400-109706-- 1980
Suzuki RM 465 51 CV, 38 KW 1cil. RM465 X Bastidores: RM465-100001-RM465-101152 1981
