JT SPROCKETS coarse gear transmission pinion 14T P-520 5 Ø18/22MM 726.03.01

The JT Sprockets production is today the largest and most modern production facility for sprockets and sprockets in the world.

equipped with the latest generation of CNC manufacturing machines.

JT Sprockets produces the full range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages and undergoes more than ten individual quality tests to successfully leave production.

JT Sprockets manufactures the right way: turning, milling, and drilling. This is the only way to achieve the highest quality with the lowest tolerances and the best tooth profile.

After subsequent heat treatment, each element is checked by hand; this is how JT Sprockets sets new standards of quality in the motorcycle industry.

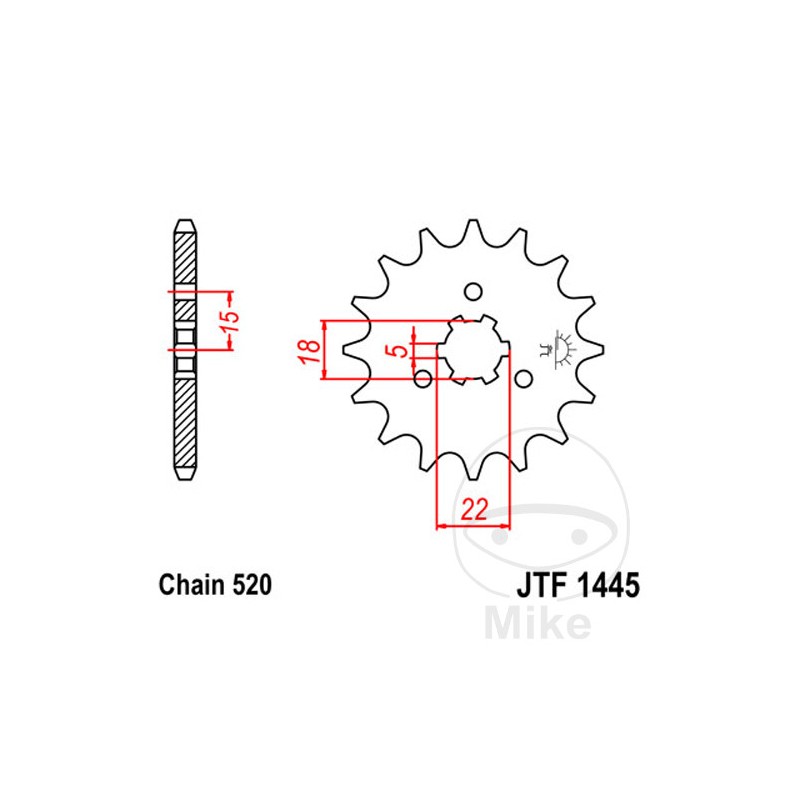

DIVISION: 520
CENTRAL FIXING: COARSE GEAR
INSIDE DIAMETER MIN.: 18 MM
MAX INTERNAL DIAMETER: 22 MM
INNER GEAR (QUANTITY OF TEETH): 6
INNER GEAR (DISTANCE): 5 MM
QUANTITY OF HOLES: WITHOUT HOLE
HOLES DISTANCE: 15 MM
VERSION: STANDARD
QTY TEETH: 14


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Kawasaki KX 125 K 39,5 CV, 29 kw 1cil. KX125K 1 Bastidores: KX125K henceforth00001-KX125K-999999 1994
Kawasaki KX 125 K 39,5 CV, 29 kw 1cil. KX125K 2 Bastidores: KX125K henceforth06001-KX125K-999999 1995
Kawasaki KX 125 K 39,5 CV, 29 kw 1cil. KX125K 3 Bastidores: KX125K henceforth13001-KX125K-999999 1996
Kawasaki KX 125 K 39,5 CV, 29 kw 1cil. KX125K 4 Bastidores: KX125K henceforth20001-KX125K-999999 1997
Kawasaki KX 125 K 39,5 CV, 29 kw 1cil. KXRKCWA 5 Bastidores: KXRKCWA henceforth26001-KXRKCWA-999999 1998
Kawasaki KX 125 L 39,5 CV, 29 kw 1cil. KX125LLA 1 Bastidores: KX125LLA henceforth00001-KX125LLA-999999 1999
Kawasaki KX 125 L 39,5 CV, 29 kw 1cil. KX125LLA 2 Bastidores: KX125LLA henceforth09001-KX125LLA henceforth20000 2000
Kawasaki KX 125 L 39,5 CV, 29 kw 1cil. KX125LLA 3 Bastidores: KX125LLA henceforth20001-KX125LLA henceforth30000 2001
Kawasaki KX 125 L 39,5 CV, 29 kw 1cil. KX125LLA 4 Bastidores: KX125LLA henceforth30001-KX125LLA-999999 2002
Kawasaki KX 125 M 40,5 CV, 29,8 kw 1cil. KX125MMA 1 Bastidores: KX125MMA henceforth00001-KX125MMA henceforth10000 2003
Kawasaki KX 125 M 41 CV, 30,2 kw 1cil. KX125MMA 2 Bastidores: KX125MMA henceforth10001-KX125MMA henceforth16000 2004
Kawasaki KX 125 M 41 CV, 30,2 kw 1cil. KX125MMA 3 Bastidores: KX125MMA henceforth16001-KX125MMA henceforth21000 2005
Kawasaki KX 125 M 41 CV, 30,2 kw 1cil. KX125MMA 6F Bastidores: KX125MMA henceforth21001-KX125MMA henceforth25000 2006
Kawasaki KX 125 M 41 CV, 30,2 kw 1cil. KX125MMA 7F Bastidores: KX125MMA henceforth25001-KX125MMA henceforth27000 2007
Kawasaki KX 125 M 41 CV, 30,2 kw 1cil. KX125MMA 8F Bastidores: KX125MMA henceforth27001-KX125MMA-999999 2008
