ESJOT Fine gear transmission pinion 12T P-520 Ø17/21MM 726.02.46

ESJOT gear designed specifically for high OEM requirements and among the world's best sprockets on the market.

A special steel, high-quality hardening and optimum gearing guarantee extremely high strength and durability - ideal for high-wear conditions in all areas

- Steel 16 MnCR 5

- Worked on CNC lathes

- Hardening of 700 HV 40 for a depth of 0.4 mm

- Modern broaching guarantees an exact fit size on the motor shaft

- Radial and axial runout tolerance of less than 0.1mm

- 100% Made in Germany

- OEM quality

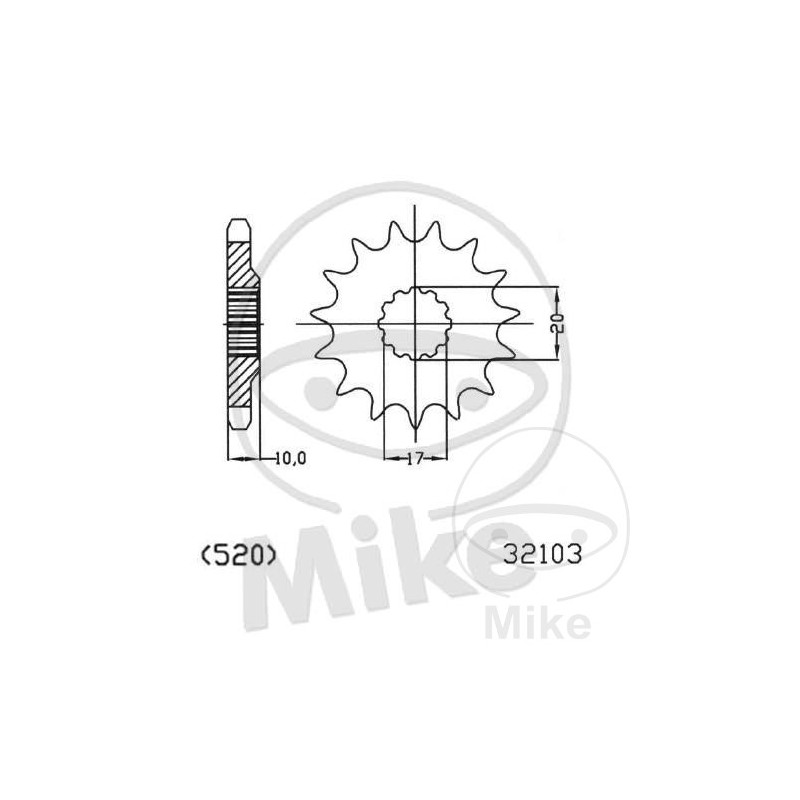

DIVISION: 520
CENTRAL FIXATION: FINE GEAR
INSIDE DIAMETER MIN.: 17 MM
MAX INTERNAL DIAMETER: 21 MM
INNER GEAR (QUANTITY OF TEETH): 12
QUANTITY OF HOLES: WITHOUT HOLE
WIDTH: 10MM
VERSION: STANDARD
QTY TEETH: 12


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Husqvarna CR 125 1cil. 2H00AA Bastidores: ZCG 2H00AA-6V050001-ZCG 2H00AA-6V050300 2006
Husqvarna CR 125 1cil. 2H00AA Bastidores: ZCG 2H00AA-7V050001-- 2007
Husqvarna CR 125 1cil. 2H00AA Bastidores: ZCG 2H00AA-8V050001-ZCG 2H00AA-8V059999 2008
Husqvarna CR 125 1cil. 4H00AA Bastidores: --- 2011-2011
Husqvarna CR 125 1cil. 4H00AA Bastidores: --- 2014-2014
Husqvarna CR 125 1cil. 4H00AA Bastidores: ZKH 4H00AA-9V050001-ZKH 4H00AA-9V050151 2009
Husqvarna CR 125 1cil. 4H00AA Bastidores: ZKH 4H00AA-9V050152-- 2010
Husqvarna CR 125 1cil. 4H00AA Bastidores: ZKH 4H00AA-CV050001-- 2012
Husqvarna CR 125 1cil. 4H00AA Bastidores: ZKH 4H00AA-DV050001-- 2013
Husqvarna CR 125 37 CV, 27 kw 1cil. 1A1 Bastidores: 1A1 henceforth50001-- 1997
Husqvarna CR 125 37 CV, 27 kw 1cil. 2H00AA Bastidores: ZCG 2H00AA-2V051613-- 2002
Husqvarna CR 125 37 CV, 27 kw 1cil. 2H00AA Bastidores: ZCG 2H00AA-3V052000-ZCG 2H00AA-3V052113 2003
Husqvarna CR 125 37 CV, 27 kw 1cil. 2H00AA Bastidores: ZCG 2H00AA-4V051680-ZCG 2H00AA-4V052353 2004
Husqvarna CR 125 37 CV, 27 kw 1cil. 2H00AA Bastidores: ZCG 2H00AA-5V052300-ZCG 2H00AA-5V052499 2005
Husqvarna CR 125 37 CV, 27 kw 1cil. H100AA Bastidores: ZCG H100AA-1V051430-ZCG H100AA-1V051612 2001
Husqvarna CR 125 37 CV, 27 kw 1cil. H100AA Bastidores: ZCG H100AA-XV050386-ZCG H100AA-XV051006 1999
Husqvarna CR 125 37 CV, 27 kw 1cil. H100AA Bastidores: ZCG H100AA-YV051007-ZCG H100AA-YV051429 2000
Husqvarna CR 125 37 CV, 27 kw 1cil. H100AA Bastidores: ZGG H100AA-WV060001-- 1998
Husqvarna WR 125 15 CV, 11 kw 1cil. 2H00AA Bastidores: ZCG 2H00AA-6V000011-ZCG 2H00AA-6V000662 2006
Husqvarna WR 125 15 CV, 11 kw 1cil. 2H00AA Bastidores: ZCG 2H00AA-7V000001-- 2007
Husqvarna WR 125 35/10 CV, 26/7 kw 1cil. H100AA Bastidores: ZCG H100AA-WV000010-ZCG H100AA-WV000403 1998
Husqvarna WR 125 35/10 CV, 26/7 kw 1cil. H100AA Bastidores: ZCG H100AA-XV000404-ZCG H100AA-XV000863 1999
Husqvarna WR 125 35/15 CV, 26/11 kw 1cil. 2H00AA Bastidores: ZCG 2H00AA-2V001803-- 2002
Husqvarna WR 125 35/15 CV, 26/11 kw 1cil. 2H00AA Bastidores: ZCG 2H00AA-3V002000-ZCG2H00AA-3V002172 2003
Husqvarna WR 125 35/15 CV, 26/11 kw 1cil. 2H00AA Bastidores: ZCG 2H00AA-4V002173-ZCG 2H00AA-4V002647 2004
Husqvarna WR 125 35/15 CV, 26/11 kw 1cil. 2H00AA Bastidores: ZCG 2H00AA-5V003000-ZCG 2H00AA-5V003479 2005
Husqvarna WR 125 35/15 CV, 26/11 kw 1cil. H100AA Bastidores: ZCG H100AA-1V001473-ZCG H100AA-1V001802 2001
Husqvarna WR 125 35/15 CV, 26/11 kw 1cil. H100AA Bastidores: ZCG H100AA-YV000864-ZCG H100AA-YV001472 2000
Husqvarna WR 125 8 CV, 6 kw 1cil. 2H00AA Bastidores: ZCG 2H00AA-8V000001-ZCG 2H00AA-8V009999 2008
Husqvarna WR 125 8 CV, 6 kw 1cil. 4H00AA Bastidores: --- 2011-2011
Husqvarna WR 125 8 CV, 6 kw 1cil. 4H00AA Bastidores: --- 2014-2014
Husqvarna WR 125 8 CV, 6 kw 1cil. 4H00AA Bastidores: ZKH 4H00AA-9V000001-ZKH 4H00AA-9V000498 2009
Husqvarna WR 125 8 CV, 6 kw 1cil. 4H00AA Bastidores: ZKH 4H00AA-9V000499-- 2010
Husqvarna WR 125 8 CV, 6 kw 1cil. 4H00AA Bastidores: ZKH 4H00AA-CV000001-ZKH 4H00AA-CV050000 2012
Husqvarna WR 125 8 CV, 6 kw 1cil. 4H00AA Bastidores: ZKH 4H00AA-DV000001-ZKH 4H00AA-DV050000 2013
