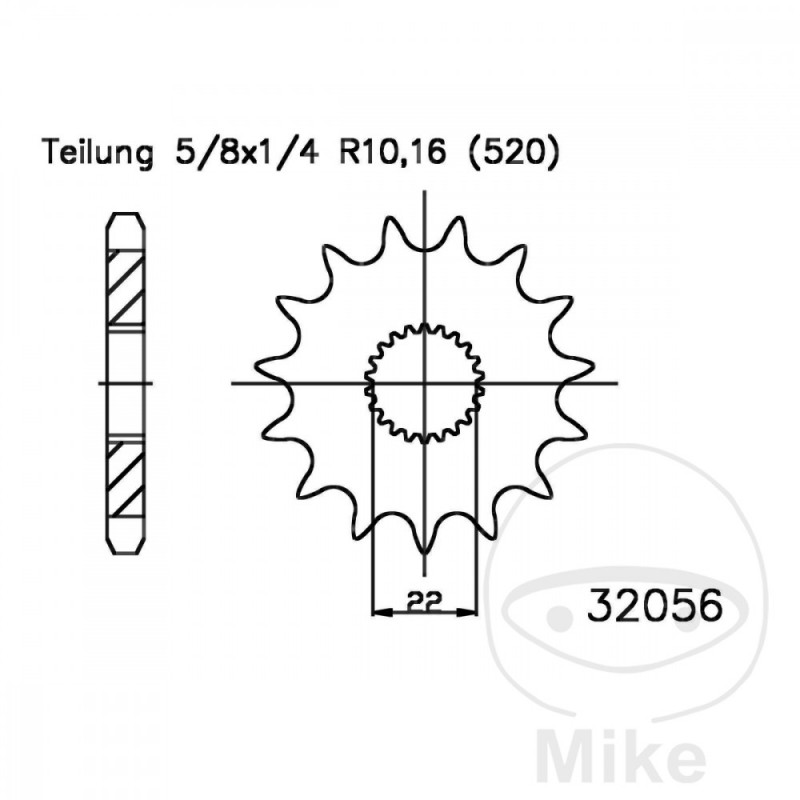

ESJOT Fine gear transmission pinion 12T P-520 Ø22/24MM 726.02.45

ESJOT gear designed specifically for high OEM requirements and among the world's best sprockets on the market.

A special steel, high-quality hardening and optimum gearing guarantee extremely high strength and durability - ideal for high-wear conditions in all areas

- Steel 16 MnCR 5

- Worked on CNC lathes

- Hardening of 700 HV 40 for a depth of 0.4 mm

- Modern broaching guarantees an exact fit size on the motor shaft

- Radial and axial runout tolerance of less than 0.1mm

- 100% Made in Germany

- OEM quality
DIVISION: 520
CENTRAL FIXATION: FINE GEAR
INSIDE DIAMETER MIN.: 22 MM
MAX INTERNAL DIAMETER: 24 MM
INNER GEAR (QUANTITY OF TEETH): 22
QUANTITY OF HOLES: WITHOUT HOLE
VERSION: STANDARD
QTY TEETH: 12


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Aprilia AF1 125 Futura 30 CV, 22 kw 1cil. FM/FG Bastidores: --- 1990-1991
Aprilia AF1 125 Sintesi 27 CV, 20 kw 1cil. EH Bastidores: --- 1988
Aprilia AF1 125 Sintesi Replica 27 CV, 20 kw 1cil. EU Bastidores: --- 1989
Aprilia AF1 125 Sport Pro 25 CV, 18 kw 1cil. FM/GE Bastidores: --- 1992-1993
Aprilia Classic 125 11,6 CV, 8,5 kw 1cil. MF000 Bastidores: --- 1999-2001
Aprilia Classic 125 27/11 CV, 20/8 kw 1cil. MF000 Bastidores: --- 1997-1998
Aprilia ETX 125 11 CV, 8 kw 1cil. PH Bastidores: --- 1998
Aprilia ETX 125 12,3 CV, 9 kw 1cil. PH Bastidores: --- 1999-2001
Aprilia ETX 125 15 CV, 11 kw 1cil. PH Bastidores: --- 1998
Aprilia Europa 125 30 CV, 22 kw 1cil. FV Bastidores: --- 1990-1991
Aprilia MX 125 Supermoto 15 CV, 11 kw 1cil. TZ000 Bastidores: --- 2004-2007
Aprilia MX 125 Supermoto 24,5 CV, 18 kw 1cil. TZ000 Bastidores: --- 2004-2007
Aprilia Pegaso 125 K 31 CV, 23 kw 1cil. ET Bastidores: --- 1989
Aprilia Pegaso 125 L 31 CV, 23 kw 1cil. ET Bastidores: --- 1990
Aprilia Pegaso 125 M 31 CV, 23 kw 1cil. GQ Bastidores: --- 1991
Aprilia Pegaso 125 N 31 CV, 23 kw 1cil. GQ Bastidores: --- 1992
Aprilia Pegaso 125 P 31 CV, 23 kw 1cil. GQ Bastidores: --- 1993
Aprilia Pegaso 125 R 31 CV, 23 kw 1cil. GQ Bastidores: --- 1994-1995
Aprilia Red Rose 125 H 1cil. FA Bastidores: --- 1987
Aprilia Red Rose 125 J 1cil. FA Bastidores: --- 1988
Aprilia Red Rose 125 K 1cil. FA Bastidores: --- 1989
Aprilia Red Rose 125 L 27 CV, 20 kw 1cil. FQ Bastidores: --- 1990
Aprilia Red Rose 125 M 27 CV, 20 kw 1cil. FQ Bastidores: --- 1991
Aprilia Red Rose 125 N 27 CV, 20 kw 1cil. FQ Bastidores: --- 1992
Aprilia Red Rose 125 P 27 CV, 20 kw 1cil. FQ Bastidores: --- 1993
Aprilia Red Rose 125 R 27 CV, 20 kw 1cil. FQ Bastidores: --- 1994-1996
Aprilia RS 125 Extrema/Replica 15 CV, 11 kw 1cil. MPA00 Bastidores: --- 1996-1998
Aprilia RS 125 Extrema/Replica 15 CV, 11 kw 1cil. MPB10 Bastidores: --- 1999-2001
Aprilia RS 125 Extrema/Replica 15 CV, 11 kw 1cil. RD000 Bastidores: --- 2008
Aprilia RS 125 Extrema/Replica 15 CV, 11 kw 1cil. RD000/RDA00 Bastidores: --- 2009
Aprilia RS 125 Extrema/Replica 15 CV, 11 kw 1cil. RDA00 Bastidores: --- 2010-2012
Aprilia RS 125 Extrema/Replica 15 CV, 11 kw 1cil. SFA00 Bastidores: --- 2002-2003
Aprilia RS 125 Extrema/Replica 15 CV, 11 kw 1cil. SFG00 Bastidores: --- 2004-2005
Aprilia RS 125 Extrema/Replica 24,5 CV, 18 kw 1cil. RM000 Bastidores: --- 2008-2012
Aprilia RS 125 Extrema/Replica 29,2 CV, 21,5 kw 1cil. PYA00 Bastidores: --- 2006-2007
Aprilia RS 125 Extrema/Replica 29,2 CV, 21,5 kw 1cil. SFG00 Bastidores: --- 2004-2005
Aprilia RS 125 Extrema/Replica 30 CV, 22 kw 1cil. MPB10 Bastidores: --- 1999-2001
Aprilia RS 125 Extrema/Replica 30 CV, 22 kw 1cil. SFA00 Bastidores: --- 2002-2003
Aprilia RS 125 Extrema/Replica 31 CV, 23 kw 1cil. MPA00 Bastidores: --- 1997-1998
Aprilia RS 125 Extrema/Replica 33/27 CV, 24/20 kw 1cil. GS Bastidores: --- 1992-1994
Aprilia RS 125 Extrema/Replica 33/27 CV, 24/20 kw 1cil. MP000 Bastidores: --- 1995
Aprilia RS 125 Extrema/Replica 6,8 CV, 5 kw 1cil. RM000 Bastidores: --- 2009-2012
Aprilia RS 125 Sport Pro 34/27 CV, 25/20 kw 1cil. LA Bastidores: --- 1993-1994
Aprilia RX 125 15 CV, 11 kw 1cil. RVA00 Bastidores: --- 2008-2013
Aprilia RX 125 23 CV, 17 kw 1cil. RVA00 Bastidores: --- 2008-2013
Aprilia RX 125 K 1cil. GF Bastidores: --- 1989
Aprilia RX 125 L 1cil. GF Bastidores: --- 1990
Aprilia RX 125 M 1cil. GF Bastidores: --- 1991
Aprilia RX 125 N 1cil. GF Bastidores: --- 1992
Aprilia RX 125 P 1cil. GF Bastidores: --- 1993
Aprilia SX 125 15 CV,11 kw 1cil. RV000 Bastidores: --- 2008-2014
Aprilia SX 125 23 CV,17 kw 1cil. RV000 Bastidores: --- 2008-2014
Aprilia Tuareg 125 K Rally 25 CV, 18,6 kw 1cil. GA Bastidores: --- 1989
Aprilia Tuareg 125 L Rally 25 CV, 18,6 kw 1cil. GB Bastidores: --- 1990
Aprilia Tuareg 125 M Rally 25 CV, 18,6 kw 1cil. GG Bastidores: --- 1991
Aprilia Tuareg 125 N Rally 25 CV, 18,6 kw 1cil. GG Bastidores: --- 1992
Aprilia Tuareg 125 Wind 1cil. - Bastidores: --- 1988-1990
Aprilia Tuono 125 15 CV, 11 kw 1cil. SFD00 Bastidores: --- 2003-2004
Aprilia Tuono 125 29,2 CV, 21,5 kw 1cil. SFD00 Bastidores: --- 2003-2004
CAN-AM DS 450 International 45,3 CV, 33,8 kw 1cil. - Bastidores: --- 2008-2009
CAN-AM DS 450 X International 45,3 CV, 33,8 kw 1cil. - Bastidores: --- 2008-2009
CAN-AM DS 450 X-mx 45,3 CV, 33,8 kw 1cil. - Bastidores: --- 2010-2013
CAN-AM DS 450 X-mx International 45,3 CV, 33,8 kw 1cil. - Bastidores: --- 2014-2015
CAN-AM DS 450 X-xc 45,3 CV, 33,8 kw 1cil. - Bastidores: --- 2009
HM-Moto CRE-B 125 2T Six Competition 15/27 CV, 11/20 kw 1cil. B12500E Bastidores: ZENB12500EB100001-ZENB12500EB119999 2011-2013
HM-Moto CRE-B 125 RR 2T Baja 15/27 CV, 11/20 kw 1cil. B12500E Bastidores: ZENB12500EB120001-- 2011-2013
HM-Moto CRM-B 125 2T Derapage Competition 15/27 CV, 11/20 kw 1cil. B12500MB Bastidores: ZENB12500MB100001-ZENB12500MB119999 2011-2013
HM-Moto CRM-B 125 RR 2T Derapage 15/27 CV, 11/20 kw 1cil. B12500MB Bastidores: ZENB12500MB120001-- 2011-2013
