JT SPROCKETS transmission sprocket 15T P-520 ALTN: 7260347 726.02.43

JT Sprockets Manufacturing is today the largest and most modern production facility for sprockets and pinions worldwide,

equipped, among others, with the latest generation of CNC manufacturing machines.

JT Sprockets produces the entire range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages, going through more than ten individual quality controls to successfully leave the production line.

JT Sprockets manufactures the right way - turning, milling and drilling! This is the only way to achieve the highest quality with the tightest tolerances and the best tooth profile.

After post heat treatment, each item is checked by hand, thus setting new JT Sprockets quality standards in the motorcycle industry.

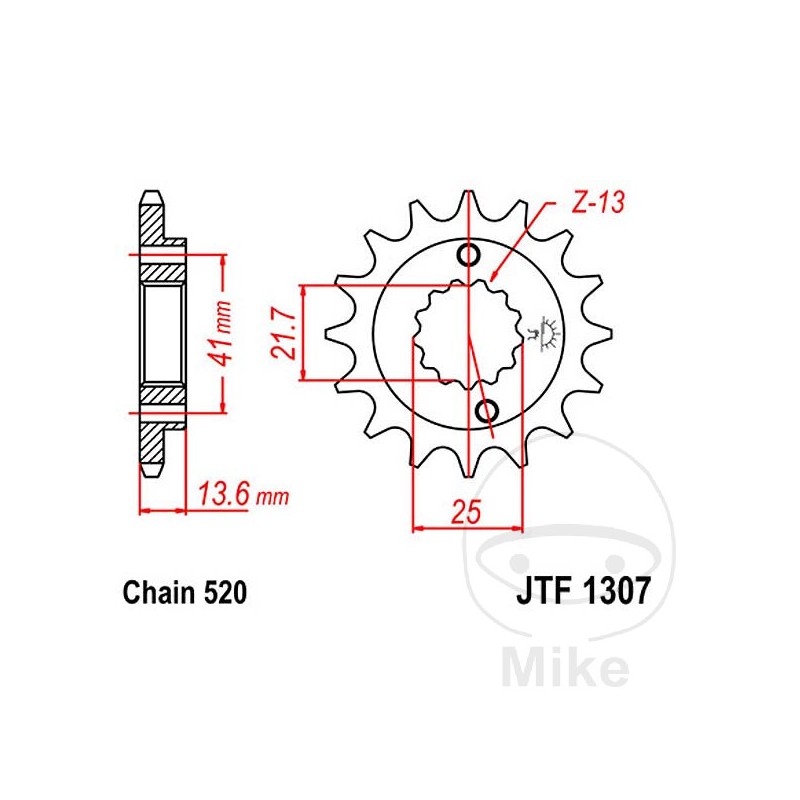

DIVISION: 520
CENTRAL FIXATION: FINE GEAR
INSIDE DIAMETER MIN.: 21.7 MM
MAX INTERNAL DIAMETER: 25 MM
INNER GEAR (QUANTITY OF TEETH): 13
HOLES QUANTITY: 2
HOLES DISTANCE: 41 MM
WIDTH: 13.6MM
VERSION: STANDARD
QTY TEETH: 15


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda XR 650 R 61 CV, 45 kw 1cil. RE01A 1 Bastidores: JH2 RE01A-1K200001-JH2 RE01A-1K299999 2001
Honda XR 650 R 61 CV, 45 kw 1cil. RE01A 2 Bastidores: JH2 RE01A-2K210001-JH2 RE01A-2K299999 2002
Honda XR 650 R 61 CV, 45 kw 1cil. RE01A 3 Bastidores: JH2 RE01A-3M220001-JH2 RE01A-3M229999 2003
Honda XR 650 R 61 CV, 45 kw 1cil. RE01A 4 Bastidores: JH2 RE01A-4K240001-JH2 RE01A-4K299999 2004
Honda XR 650 R 61 CV, 45 kw 1cil. RE01A 5 Bastidores: JH2 RE01A-5K250001-JH2 RE01A-5K299999 2005
Honda XR 650 R 61 CV, 45 kw 1cil. RE01A 6 Bastidores: JH2 RE01A-6K300001-JH2 RE01A-6K399999 2006
Honda XR 650 R 61 CV, 45 kw 1cil. RE01A 7 Bastidores: JH2 RE01A-7K400001-- 2007
Honda XR 650 R 61 CV, 45 kw 1cil. RE01A Y Bastidores: JH2 RE01A-YK100001-JH2 RE01A-YK199999 2000
Kawasaki ZX-6R 600 G Ninja 107/98 CV, 79/72 kw 4cil. ZX600GGA 2 Bastidores: ZX600GGA henceforth24001-ZX600GGA-999999 1999
Kawasaki ZX-6R 600 G Ninja 98/34 CV, 72/25 kw 4cil. ZX600GGA 1 Bastidores: ZX600GGA henceforth00001-ZX600GGA henceforth24000 1998
Kawasaki ZX-6R 600 H Ninja catalizador 108/98 CV, 79,4/72 kw 4cil. ZX600GHA 2 Bastidores: ZX600GHA henceforth24001-ZX600GHA-999999 1999
Kawasaki ZX-6R 600 H Ninja catalizador 98/34 CV, 72/25 kw 4cil. ZX600GHA 1 Bastidores: ZX600GHA henceforth00001-ZX600GHA henceforth24000 1998
Kawasaki ZX-6R 600 J Ninja 111/98/34 CV, 82/72/25 kw 4cil. ZX600JJA 1H Bastidores: ZX600JJA henceforth00001-ZX600JJA henceforth30000 2000
Kawasaki ZX-6R 600 J Ninja 111/98/34 CV, 82/72/25 kw 4cil. ZX600JJA 2H Bastidores: ZX600JJA henceforth30001-ZX600JJA-999999 2001-2002
Kawasaki ZX-6R 636 A Ninja 113 CV, 83 kw 4cil. ZX636AAA 1H Bastidores: ZX636AAA henceforth00001-ZX636AAA-999999 2002
Kawasaki ZX-6R 636 A Ninja 34 CV, 25 kw 4cil. ZX636AAA 1H Bastidores: ZX636AAA henceforth00001-ZX636AAA-999999 2002
Kawasaki ZX-6R 636 A Ninja 98 CV, 72 kw 4cil. ZX636AAA 1H Bastidores: ZX636AAA henceforth00001-ZX636AAA-999999 2002
Kawasaki ZX-6R 636 B Ninja 118 CV, 87 kw 4cil. ZX636BBA 1H Bastidores: ZX636BBA henceforth00001-ZX636BBA henceforth23000 2003
Kawasaki ZX-6R 636 B Ninja 118 CV, 87 kw 4cil. ZX636BBA 2H Bastidores: ZX636BBA henceforth23001-ZX636BBA-999999 2004
Kawasaki ZX-6R 636 B Ninja 34 CV, 25 kw 4cil. ZX636BBA 1H Bastidores: ZX636BBA henceforth00001-ZX636BBA henceforth23000 2003
Kawasaki ZX-6R 636 B Ninja 34 CV, 25 kw 4cil. ZX636BBA 2H Bastidores: ZX636BBA henceforth23001-ZX636BBA-999999 2004
Kawasaki ZX-6R 636 B Ninja 98 CV, 72 kw 4cil. ZX636BBA 1H Bastidores: ZX636BBA henceforth00001-ZX636BBA henceforth23000 2003
Kawasaki ZX-6R 636 B Ninja 98 CV, 72 kw 4cil. ZX636BBA 2H Bastidores: ZX636BBA henceforth23001-ZX636BBA-999999 2004
Kawasaki ZX-6R 636 C Ninja 130 CV, 96 kw 4cil. ZX636CCA 1H Bastidores: ZX636CCA henceforth00001-ZX636CCA henceforth29999 2005
Kawasaki ZX-6R 636 C Ninja 130 CV, 96 kw 4cil. ZX636CCA 6F Bastidores: ZX636CCA henceforth30001-ZX636CCA-999999 2006
Kawasaki ZX-6R 636 C Ninja 34 CV, 25 kw 4cil. ZX636CCA 1H Bastidores: ZX636CCA henceforth00001-ZX636CCA henceforth29999 2005
Kawasaki ZX-6R 636 C Ninja 34 CV, 25 kw 4cil. ZX636CCA 6F Bastidores: ZX636CCA henceforth30001-ZX636CCA-999999 2006
Kawasaki ZX-6R 636 C Ninja 98 CV, 72 kw 4cil. ZX636CCA 1H Bastidores: ZX636CCA henceforth00001-ZX636CCA henceforth29999 2005
Kawasaki ZX-6R 636 C Ninja 98 CV, 72 kw 4cil. ZX636CCA 6F Bastidores: ZX636CCA henceforth30001-ZX636CCA-999999 2006
Kawasaki ZX-6RR 600 K Ninja 113 CV, 83 kw 4cil. ZX600KKA 1H Bastidores: ZX600KKA henceforth00001-ZX600KKA-999999 2003
Kawasaki ZX-6RR 600 M Ninja 117 CV, 86 kw 4cil. ZX600KMA 1H Bastidores: ZX600KMA henceforth07001-ZX600KMA-999999 2004
Kawasaki ZX-6RR 600 N Ninja 123 CV, 90,6 kw 4cil. ZX600NNA 1H Bastidores: ZX600NNA henceforth00001-ZX600NNA-999999 2005-2006
