JT SPROCKETS coarse gear transmission pinion 16T P-428 6 Ø16/20MM 726.02.25

JT Sprockets Manufacturing is today the largest and most modern production facility for sprockets and pinions worldwide,

equipped, among others, with the latest generation of CNC manufacturing machines.

JT Sprockets produces the entire range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages, going through more than ten individual quality controls to successfully leave the production line.

JT Sprockets manufactures the right way - turning, milling and drilling! This is the only way to achieve the highest quality with the tightest tolerances and the best tooth profile.

After post heat treatment, each item is checked by hand, thus setting new JT Sprockets quality standards in the motorcycle industry.

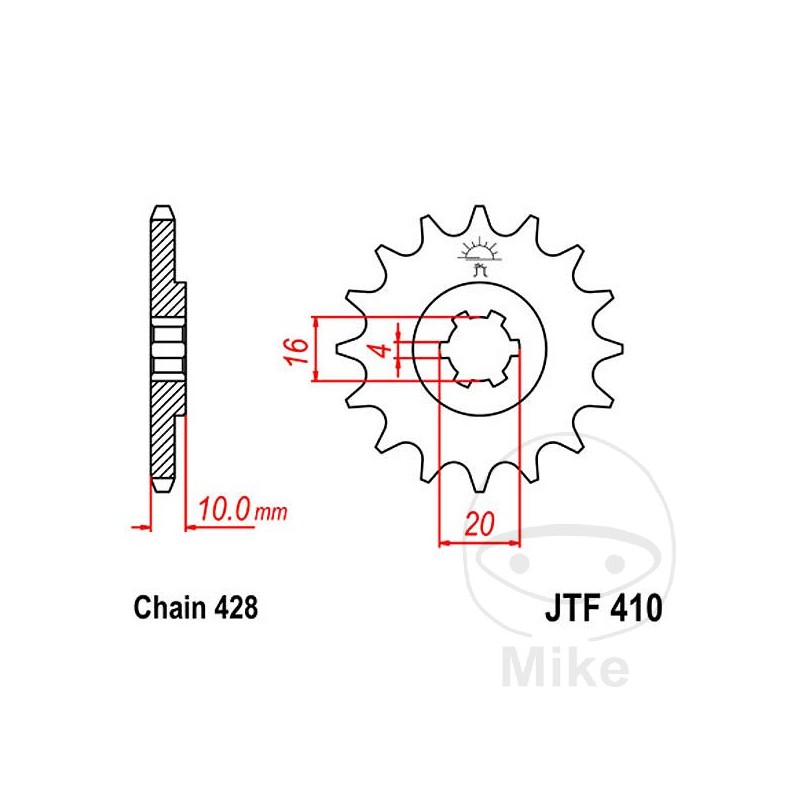

DIVISION: 428
CENTRAL FIXING: COARSE GEAR
INSIDE DIAMETER MIN.: 16 MM
MAX INSIDE DIAMETER: 20 MM
INNER GEAR (QUANTITY OF TEETH): 6
INNER GEAR (DISTANCE): 4 MM
QUANTITY OF HOLES: WITHOUT HOLE
WIDTH: 10MM
VERSION: STANDARD
QTY TEETH: 16


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Hyosung GA 125 4V Cruise II 14,3 CV, 10,5 kw 1cil. KM4MF47A7 Bastidores: --- 1997-2000
Hyosung GA 125 4V Cruise II Classic 14,3 CV, 10,5 kw 1cil. KM4MF47A7 Bastidores: --- 1999-2001
Hyosung GA 125 4V Cruise II De Luxe 14,3 CV, 10,5 kw 1cil. KM4MF47A7 Bastidores: --- 1999-2001
Hyosung GF 125 4V Speed 14,3 CV, 10,5 kw 1cil. KM4NF47A7 Bastidores: --- 1998-2003
Hyosung GT 125 N Naked 14,4 CV, 10,6 kw 2cil. KM4MF51B Bastidores: --- 2003-2006
Hyosung GT 125 N Naked Euro3 14,8 CV, 10,9 kw 2cil. KM4MF52B Bastidores: --- 2007-2008
Hyosung GT 125 N Naked Version E 14,8 CV, 10,9 kw 2cil. KM4MF55B Bastidores: --- 2009-2017
Hyosung GT 125 R Pro Comet 14,8 CV, 10,9 kw 2cil. KM4MF55D Bastidores: --- 2015-2017
Hyosung GT 125 R Supersport Euro2 14,4 CV, 10,6 kw 2cil. KM4MF51E Bastidores: --- 2006
Hyosung GT 125 R Supersport Euro3 14,8 CV, 10,9 kw 2cil. KM4MF52C Bastidores: --- 2007-2008
Hyosung GT 125 R Supersport Version F 14,8 CV, 10,9 kw 2cil. KM4MF55C Bastidores: --- 2009-2014
Hyosung GV 125 Aquila 15 CV, 11 kw 2cil. KM4MF51A Bastidores: --- 2000-2006
Hyosung GV 125 M Aquila 14,4 CV, 10,6 kw 2cil. KM4MF52A Bastidores: --- 2007-2008
Hyosung GV 125 M Aquila Classic Version C 13,5 CV, 9,9 kw 2cil. KM4MF53A Bastidores: --- 2011-2017
Hyosung GV 125 M Aquila Classic Version C 14,8 CV, 10,8 kw 2cil. KM4MF53A Bastidores: --- 2009-2010
Hyosung GV 125 S Aquila Euro4 CBS 14 CV, 10,3 kw 2cil. KM4MC12V0 Bastidores: --- 2018-2019
Hyosung GV 125 S Aquila Euro5 CBS 14 CV, 10,3 kw 2cil. HA7KJADA7 Bastidores: --- 2020-2021
Hyosung RT 125 D Karion Citytrail 13,7 CV, 10,1 kw 1cil. KM4SF42A Bastidores: --- 2007-2017
Hyosung RT 125 Karion Citytrail 11,8 CV, 8,7 kw 1cil. KM4SF41A Bastidores: --- 2003-2006
Hyosung RTV 125 11,8 CV, 8,7 kw 1cil. - Bastidores: --- 2013-2014
Hyosung XRX 125 AC D Enduro RX125 11,4 CV, 8,4 kw 1cil. KM4PF42A Bastidores: --- 2007-2008
Hyosung XRX 125 AC D Enduro RX125 12,9 CV, 9,5 kw 1cil. KM4PF42A Bastidores: --- 2009-2014
Hyosung XRX 125 AC Enduro RX125 12,1 CV, 8,9 kw 1cil. KM4PF41A Bastidores: --- 1999-2006
Hyosung XRX 125 AC SM Supermoto RX125 11,4 CV, 8,4 kw 1cil. KM4PF42B Bastidores: --- 2007-2008
Hyosung XRX 125 AC SM Supermoto RX125 12,9 CV, 9,5 kw 1cil. KM4PF42B Bastidores: --- 2009-2014
Kreidler Street 125 DD 11,5 CV, 8,4 kw 1cil. KR004Q Bastidores: --- 2009-2013
Kreidler Street 125 DD 80 Km/h 9 CV, 6,6 kw 1cil. KR004Q Bastidores: --- 2009-2013
Qingqi QM125-2D 125 DD Sport 11,6 CV, 8,5 kw 1cil. QM125-2D Bastidores: --- 2010-2012
Sachs Roadster 125 9 CV, 6,7 kw 1cil. QM125-2D Bastidores: --- 2010
Sachs X-Road 125 15 CV, 11 kw 1cil. 679 679 Bastidores: --- 2005-2006
Sachs XTC 125 4T 15 CV, 11 kw 1cil. 677 677 Bastidores: --- 2002-2007
SFM Roadster 125 9,1 CV, 6,7 kw 1cil. QM125-2D Bastidores: --- 2011-2012
Suzuki GN 125 10,7 CV, 7,9 kw 1cil. NF41A W Bastidores: NF41A-248475-NF41A-268498 1998
Suzuki GN 125 10,7 CV, 7,9 kw 1cil. NF41A X Bastidores: NF41A-268499-- 1999
Suzuki GN 125 11,8 CV, 8,7 kw 1cil. NF41A V Bastidores: NF41A-232733-NF41A-248474 1997
Suzuki GN 125 U 80 Km/h 11,8 CV, 8,7 kw 1cil. NF41A V Bastidores: NF41A-232733-NF41A-248474 1997
Suzuki GN 125 U 80 Km/h 9,1 CV, 6,7 kw 1cil. NF41A W Bastidores: NF41A-248475-NF41A-268498 1998
Suzuki GN 125 U 80 Km/h 9,1 CV, 6,7 kw 1cil. NF41A X Bastidores: NF41A-268499-- 1999
Suzuki GZ 125 Marauder 10,2 CV, 7,5 kw 1cil. AP1311 W Bastidores: AP1311 henceforth0100001-AP1311 henceforth0105343 1998
Suzuki GZ 125 Marauder 10,2 CV, 7,5 kw 1cil. AP1311 X Bastidores: AP1311 henceforth0105344-AP1311 henceforth0108142 1999
Suzuki GZ 125 Marauder 10,2 CV, 7,5 kw 1cil. AP1311 Y Bastidores: AP1311 henceforth0105344-AP1311 henceforth0108142 2000-2002
Suzuki GZ 125 Marauder 10,2 CV, 7,5 kw 1cil. AP1711 K3 Bastidores: AP1711 henceforth0100001-AP1711 henceforth0101036 2003
Suzuki GZ 125 Marauder 10,2 CV, 7,5 kw 1cil. AP1711 L0 Bastidores: AP1711 henceforth0106967-- 2010-2013
Suzuki GZ 125 Marauder 11,7 CV, 8,6 kw 1cil. AP1711 K4 Bastidores: AP1711 henceforth0101037-AP1711 henceforth0106425 2004
Suzuki GZ 125 Marauder 11,7 CV, 8,6 kw 1cil. AP1711 K5 Bastidores: AP1711 henceforth0101757-- 2005-2007
Suzuki GZ 125 Marauder 11.7 CV, 8,6 kw 1cil. AP1711 K8 Bastidores: AP1711 henceforth0106426-AP1711 henceforth0106786 2008
Suzuki GZ 125 Marauder 11.7 CV, 8,6 kw 1cil. AP1711 K9 Bastidores: AP1711 henceforth0106787-AP1711 henceforth0106966 2009
Suzuki GZ 125 U Marauder 80 Km/h 7,5 CV, 5,5 kw 1cil. AP2111 K3 Bastidores: AP2111 henceforth0100001-- 2003
Suzuki GZ 125 U Marauder 80 Km/h 7,5 CV, 5,5 kw 1cil. AP2111 W Bastidores: AP2111 henceforth0100001-AP2111 henceforth0101708 1998
Suzuki GZ 125 U Marauder 80 Km/h 7,5 CV, 5,5 kw 1cil. AP2111 X Bastidores: AP2111 henceforth0101709-- 1999
Suzuki GZ 125 U Marauder 80 Km/h 7,5 CV, 5,5 kw 1cil. AP2111 Y Bastidores: AP2111 henceforth0101709-- 2000-2002
Suzuki GZ 125 U Marauder 80 Km/h 9,1 CV, 6,7 kw 1cil. AP2111 K4 Bastidores: AP2111 henceforth0100001-- 2004
Suzuki TU 125 XT 10,9 CV, 8 CV 1cil. AZ1211 X Bastidores: AZ1211 henceforth0100001-- 1999
Suzuki TU 125 XTU 80 Km/h 8,2 CV, 6 kw 1cil. AZ2111 X Bastidores: AZ2111 henceforth0100001-- 1999
Suzuki VL 125 LC Intruder 12,2 CV, 9 kw 2cil. WVA41112 K5 Bastidores: A41112 henceforth0102375-A41112 henceforth0103602 2005
Suzuki VL 125 LC Intruder 12,2 CV, 9 kw 2cil. WVA41112 K6 Bastidores: A41112 henceforth0103603-A41112 henceforth0105491 2006
Suzuki VL 125 LC Intruder 12,2 CV, 9 kw 2cil. WVA41112 K7 Bastidores: A41112 henceforth0105492-- 2007-2008
Suzuki VL 125 LC Intruder 13,5 CV, 10 kw 2cil. A41312 K1 Bastidores: A41312 henceforth0104370-- 2001
Suzuki VL 125 LC Intruder 13,5 CV, 10 kw 2cil. A41312 Y Bastidores: A41312 henceforth0100001-A41312 henceforth0104369 2000
Suzuki VL 125 LC Intruder 13,5 CV, 10 kw 2cil. WVA41112 K2 Bastidores: A41112 henceforth0100011-A41112 henceforth0101364 2002
Suzuki VL 125 LC Intruder 13,5 CV, 10 kw 2cil. WVA41112 K3 Bastidores: A41112 henceforth0101365-A41112 henceforth0101966 2003
Suzuki VL 125 LC Intruder 13,5 CV, 10 kw 2cil. WVA41112 K4 Bastidores: A41112 henceforth0101967-A41112 henceforth0102374 2004
Suzuki VL 125 LC U Intruder 80 Km/h 11 CV, 8 kw 2cil. A42112 K1 Bastidores: A42112 henceforth0100742-A42112 henceforth0100791 2001
Suzuki VL 125 LC U Intruder 80 Km/h 11 CV, 8 kw 2cil. A42112 Y Bastidores: A42112 henceforth0100001-A42112 henceforth0100741 2000
Suzuki VL 125 LC U Intruder 80 Km/h 11 CV, 8 kw 2cil. WVA42112 K2 Bastidores: A42112 henceforth0100792-- 2002
