JT SPROCKETS coarse gear transmission pinion 15T P-520 4 Ø17/20MM 726.02.09

JT Sprockets Manufacturing is today the largest and most modern production facility for sprockets and pinions worldwide,

equipped, among others, with the latest generation of CNC manufacturing machines.

JT Sprockets produces the entire range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages, going through more than ten individual quality controls to successfully leave the production line.

JT Sprockets manufactures the right way - turning, milling and drilling! This is the only way to achieve the highest quality with the tightest tolerances and the best tooth profile.

After post heat treatment, each item is checked by hand, thus setting new JT Sprockets quality standards in the motorcycle industry.

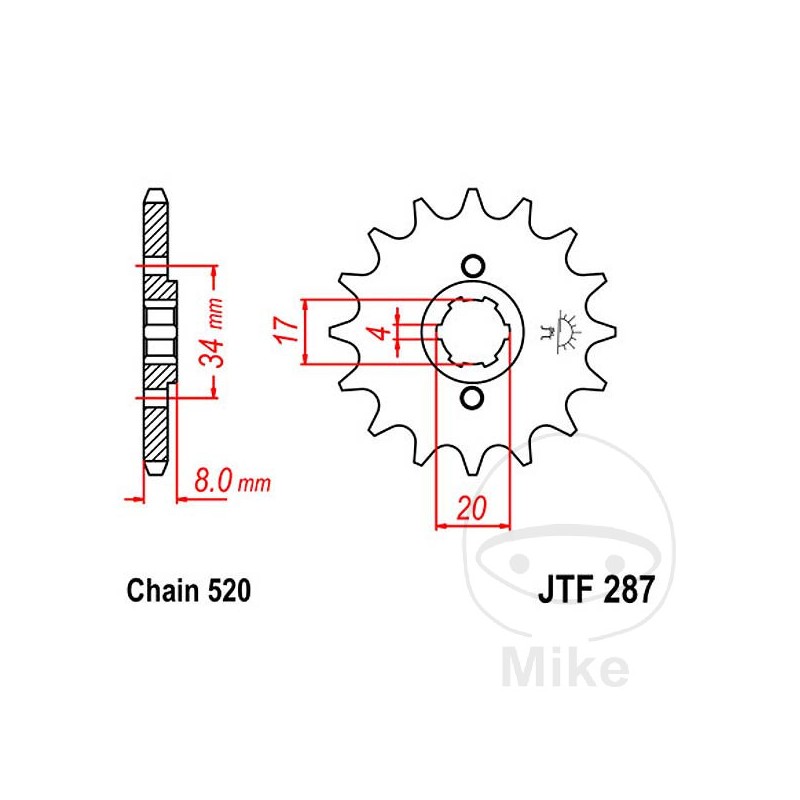

DIVISION: 520
CENTRAL FIXING: COARSE GEAR
INSIDE DIAMETER MIN.: 17 MM
MAX INSIDE DIAMETER: 20 MM
INNER GEAR (QUANTITY OF TEETH): 6
INNER GEAR (DISTANCE): 4 MM
HOLES QUANTITY: 2
HOLES DISTANCE: 34 MM
WIDTH: 8MM
VERSION: STANDARD
QTY TEETH: 15


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda XL 250 R 17 CV, 13 kw 1cil. MD11 E Bastidores: MD11-6000003-MD11-6001156 1984
Honda XL 250 R 17 CV, 13 kw 1cil. MD11 F Bastidores: MD11-6100001-MD11-6199999 1985-1988
Honda XL 250 R 24,5 CV, 18 kw 1cil. MD11 E Bastidores: MD11-5000024-MD11-5099999 1984
Honda XL 250 R 24,5 CV, 18 kw 1cil. MD11 F Bastidores: MD11-5100004-MD11-5106774 1985-1988
Honda XL 350 R 17 CV, 13 kw 1cil. ND03 G Bastidores: ND03-6000004-ND03-6000208 1986
Honda XL 350 R 17 CV, 13 kw 1cil. ND03 H Bastidores: ND03-6100001-ND03-6199999 1987-1988
Honda XL 350 R 27 CV, 20 kw 1cil. ND03 F Bastidores: ND03-5100013-ND03-5104353 1985
Honda XL 350 R 27 CV, 20 kw 1cil. ND03 H Bastidores: ND03-5300001-ND03-5399999 1987-1988
