JT SPROCKETS coarse gear transmission pinion 12T P-428 4 Ø16/20MM 726.01.88

JT Sprockets Manufacturing is today the largest and most modern production facility for sprockets and pinions worldwide,

equipped, among others, with the latest generation of CNC manufacturing machines.

JT Sprockets produces the entire range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages, going through more than ten individual quality controls to successfully leave the production line.

JT Sprockets manufactures the right way - turning, milling and drilling! This is the only way to achieve the highest quality with the tightest tolerances and the best tooth profile.

After post heat treatment, each item is checked by hand, thus setting new JT Sprockets quality standards in the motorcycle industry.

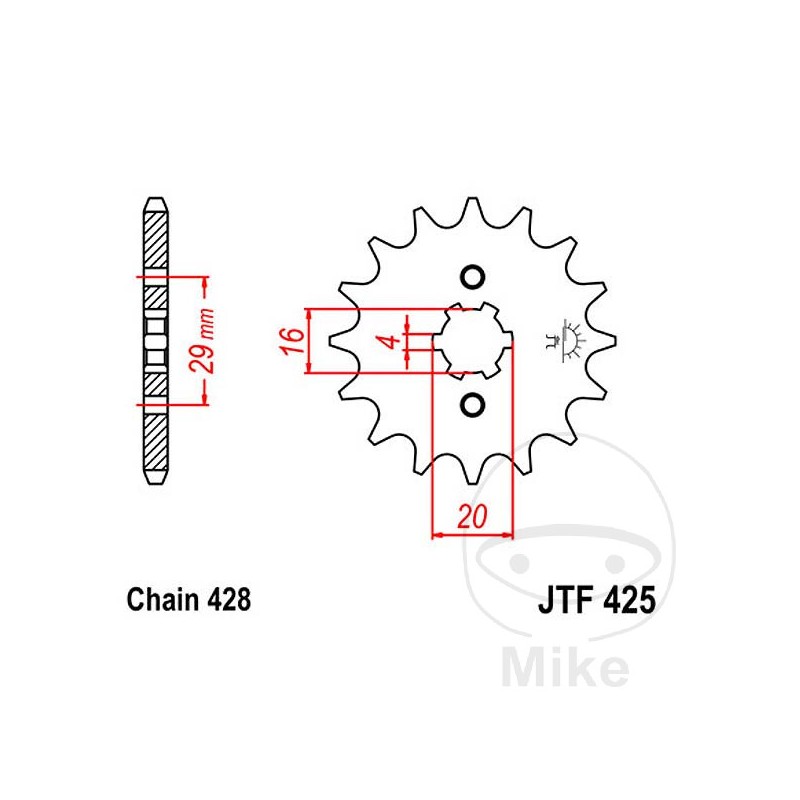

DIVISION: 428
CENTRAL FIXING: COARSE GEAR
INSIDE DIAMETER MIN.: 16 MM
MAX INSIDE DIAMETER: 20 MM
INNER GEAR (QUANTITY OF TEETH): 6
INNER GEAR (DISTANCE): 4 MM
HOLES QUANTITY: 2
HOLES DISTANCE: 29 MM
VERSION: STANDARD
QTY TEETH: 12


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki RG 125 F Gamma 33 CV, 24 kw 1cil. NF13A N Bastidores: NF13A-100001-NF13A-104427 1992
Suzuki RG 125 F Gamma 33 CV, 24 kw 1cil. NF13A P Bastidores: NF13A-104428-NF13A-107351 1993
Suzuki RG 125 F Gamma 33 CV, 24 kw 1cil. NF13A R Bastidores: NF13A-107352-- 1994
Suzuki RG 125 F Gamma 33 CV, 24 kw 1cil. NF13A S Bastidores: --- 1995
Suzuki RG 125 F Gamma 33 CV, 24 kw 1cil. NF13A T Bastidores: NF13A-108620-- 1996
Suzuki RG 125 FU Gamma 33 CV, 24 kw 1cil. NF13B N Bastidores: NF13B-100001-NF13B-101559 1992
Suzuki RG 125 FU Gamma 33 CV, 24 kw 1cil. NF13B P Bastidores: NF13B-101560-NF13B-103012 1993
Suzuki RG 125 FU Gamma 33 CV, 24 kw 1cil. NF13B R Bastidores: NF13B-103013-- 1994
