JT SPROCKETS Fine gear transmission pinion 13T P-520 Ø21/23MM 726.00.65

JT Sprockets Manufacturing is today the largest and most modern production facility for sprockets and pinions worldwide,

equipped, among others, with the latest generation of CNC manufacturing machines.

JT Sprockets produces the entire range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages, going through more than ten individual quality controls to successfully leave the production line.

JT Sprockets manufactures the right way - turning, milling and drilling! This is the only way to achieve the highest quality with the tightest tolerances and the best tooth profile.

After post heat treatment, each item is checked by hand, thus setting new JT Sprockets quality standards in the motorcycle industry.

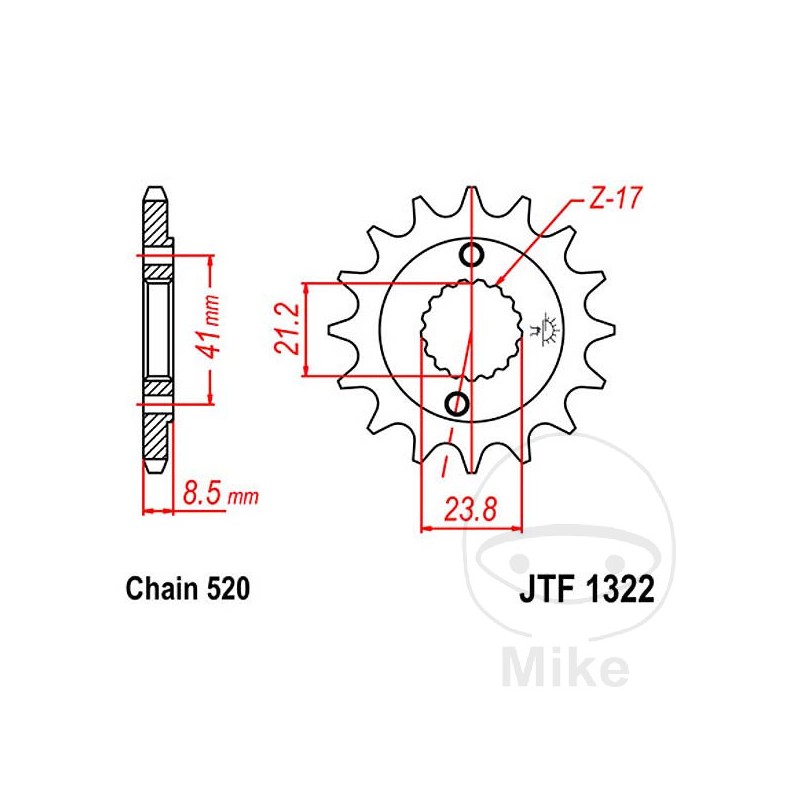

DIVISION: 520
CENTRAL FIXATION: FINE GEAR
INSIDE DIAMETER MIN.: 21.2 MM
MAX INSIDE DIAMETER: 23.8 MM
INNER GEAR (QUANTITY OF TEETH): 17
HOLES QUANTITY: 2
HOLES DISTANCE: 41 MM
WIDTH: 8.5MM
VERSION: STANDARD
QTY TEETH: 13


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda TRX 400 EX Fourtrax 34 CV, 25 kw 1cil. TE230 1 Bastidores: 478 TE230-14100001-478 TE230-14199999 2001
Honda TRX 400 EX Fourtrax 34 CV, 25 kw 1cil. TE230 X Bastidores: 478 TE230-XA000001-478 TE230-XA099999 1999
Honda TRX 400 EX Fourtrax 34 CV, 25 kw 1cil. TE230 Y Bastidores: 478 TE230-Y4000001-478 TE230-Y4099999 2000
Honda TRX 400 EX Fourtrax 34 CV, 25 kw 1cil. TE232 1 Bastidores: 478 TE232-14100001-478 TE232-14199999 2001
Honda TRX 400 EX Fourtrax 34 CV, 25 kw 1cil. TE232 X Bastidores: 478 TE232-XA000001-478 TE232-XA099999 1999
Honda TRX 400 EX Fourtrax 34 CV, 25 kw 1cil. TE232 Y Bastidores: 478 TE232-Y4000001-478 TE232-Y4099999 2000
Honda TRX 400 EX Sportrax 34 CV, 25 kw 1cil. TE230 2 Bastidores: 478 TE230-24200001-478 TE230-24299999 2002
Honda TRX 400 EX Sportrax 34 CV, 25 kw 1cil. TE230 3 Bastidores: 478 TE230-34300001-478 TE230-34399999 2003
Honda TRX 400 EX Sportrax 34 CV, 25 kw 1cil. TE232 2 Bastidores: 478 TE232-24200001-478 TE232-24299999 2002
Honda TRX 400 EX Sportrax 34 CV, 25 kw 1cil. TE232 3 Bastidores: 478 TE232-34300001-478 TE232-34399999 2003
Honda TRX 400 EX Sportrax 34 CV, 25 kw 1cil. TE23U 3 Bastidores: 478 TE23U-34300001-478 TE23U-34399999 2003
Honda TRX 400 EX Sportrax 34 CV, 25 kw 1cil. TE23U 4 Bastidores: 478 TE23U-44400001-478 TE23U-44499999 2004
Honda XR 400 R 34 CV, 25 kw 1cil. NE03A T Bastidores: JH2 NE03A-TM000001-JH2 NE03A-TM001983 1996
Honda XR 400 R 34 CV, 25 kw 1cil. NE03A V Bastidores: JH2 NE03A-VM100001-JH2 NE03A-VM102099 1997
Honda XR 400 R 35 CV, 26 kw 1cil. NE03A 1 Bastidores: JH2 NE03A-1K420001-JH2 NE03A-1K429999 2001
Honda XR 400 R 35 CV, 26 kw 1cil. NE03A 2 Bastidores: JH2 NE03A-2K430001-JH2 NE03A-2K439999 2002
Honda XR 400 R 35 CV, 26 kw 1cil. NE03A W Bastidores: JH2 NE03A-WK300001-JH2 NE03A-WK301190 1998
Honda XR 400 R 35 CV, 26 kw 1cil. NE03A W Bastidores: JH2 NE03A-WM200001-JH2 NE03A-WM200629 1998
Honda XR 400 R 35 CV, 26 kw 1cil. NE03A X Bastidores: JH2 NE03A-XK400001-JH2 NE03A-XK400153 1999
Honda XR 400 R 35 CV, 26 kw 1cil. NE03A Y Bastidores: JH2 NE03A-YK410001-JH2 NE03A-YK419999 2000
Mash Adventure 400 R ie 27 CV, 19,5 kw 1cil. - Bastidores: --- 2016
Mash Cafe Racer 400 ie TT40 ABS 27,6 CV, 20,4 kw 1cil. - Bastidores: --- 2017-2020
Mash Cafe Racer 400 ie TT40 ABS Euro4 27,6 CV, 20,4 kw 1cil. - Bastidores: --- 2021
Mash Family Side Car 400 ie ABS 27,6 CV, 20,4 kw 1cil. - Bastidores: --- 2017-2020
Mash Five Hundred 400 ie 27 CV, 19,5 kw 1cil. - Bastidores: --- 2015-2016
Mash Five Hundred 400 ie ABS 27,6 CV, 20,4 kw 1cil. - Bastidores: --- 2017-2018
Mash Scrambler 400 ie ABS 27,6 CV, 20,4 kw 1cil. - Bastidores: --- 2017-2019
Mash Von Dutch 400 27 CV, 19,5 kw 1cil. - Bastidores: --- 2015
Mash Von Dutch 400 ie 27 CV, 19,5 kw 1cil. - Bastidores: --- 2016
SWM Ace of Spades 440 ABS 30 CV, 22 kw 1cil. B300ABH Bastidores: --- 2019-2020
SWM Gran Milano Outlaw 440 ABS 30 CV, 22 kw 1cil. B300AEK Bastidores: --- 2019-2022
SWM Gran Turismo 440 30 CV, 22 kw 1cil. A302AAG Bastidores: --- 2016
SWM Gran Turismo 440 30 CV, 22 kw 1cil. B300ACH Bastidores: --- 2017-2018
SWM Gran Turismo 440 ABS 30 CV, 22 kw 1cil. B300ACH Bastidores: --- 2017-2018
SWM Silver Vase 440 30 CV, 22 kw 1cil. A300AAG Bastidores: --- 2016
SWM Silver Vase 440 30 CV, 22 kw 1cil. B101AAH Bastidores: --- 2017-2018
SWM Silver Vase 440 ABS 30 CV, 22 kw 1cil. B101AAH Bastidores: --- 2017-2018
SWM Six Days 440 ABS 30 CV, 22 kw 1cil. B300ADHV Bastidores: --- 2018-2020
SWM Six Days 500 ABS Euro5 27 CV, 20 kw 1cil. - Bastidores: --- 2021-2022
