JT SPROCKETS Fine gear transmission pinion 12T P-520 Ø18.4/21.6MM 726.00.64

JT Sprockets Manufacturing is today the largest and most modern production facility for sprockets and pinions worldwide,

equipped, among others, with the latest generation of CNC manufacturing machines.

JT Sprockets produces the entire range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages, going through more than ten individual quality controls to successfully leave the production line.

JT Sprockets manufactures the right way - turning, milling and drilling! This is the only way to achieve the highest quality with the tightest tolerances and the best tooth profile.

After post heat treatment, each item is checked by hand, thus setting new JT Sprockets quality standards in the motorcycle industry.

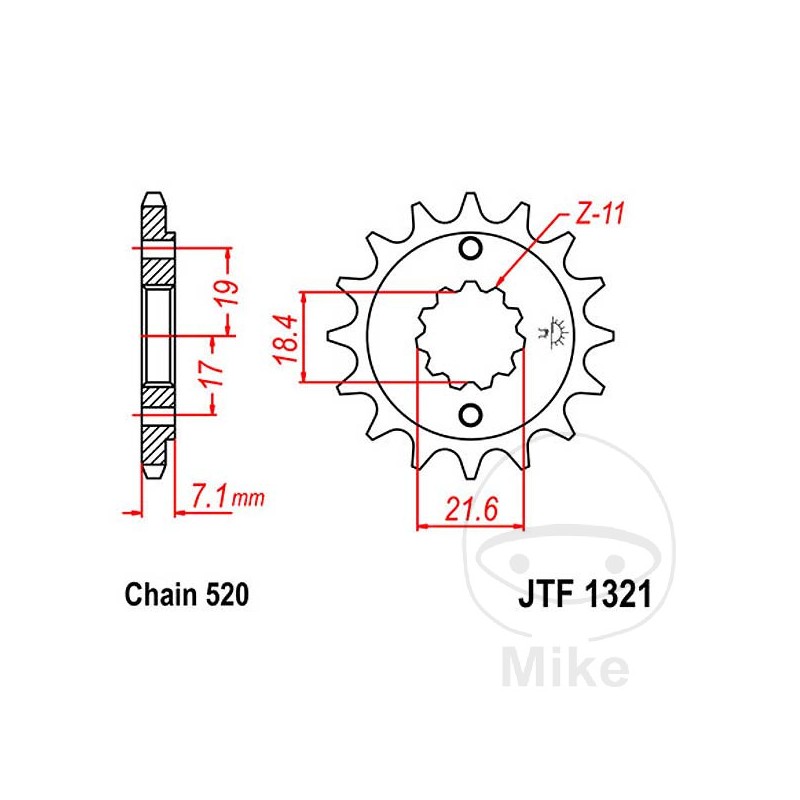

DIVISION: 520
CENTRAL FIXATION: FINE GEAR
INSIDE DIAMETER MIN.: 18.4 MM
MAX INSIDE DIAMETER: 21.6 MM
INNER GEAR (QUANTITY OF TEETH): 11
HOLES QUANTITY: 2
HOLES DISTANCE: 17
WIDTH: 7.1MM
VERSION: STANDARD
QTY TEETH: 12


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda CB 300 R NA Neo Sports Cafe ABS 31 CV, 22,7 kw 1cil. NC55 J Bastidores: MLH NC55A-J5000001-MLH NC55A-J509999 2018
Honda CB 300 R NA Neo Sports Cafe ABS 31 CV, 22,7 kw 1cil. NC55 K Bastidores: MLH NC55A-K5100001-- 2019-2021
Honda CBF 250 22 CV, 16 kw 1cil. MC35A 4 Bastidores: 9C2 MC35A henceforth4R600001-- 2004-2005
Honda CBF 250 22 CV, 16 kw 1cil. MC35A 6 Bastidores: --- 2006
Honda CBR 250 R 26,4 CV, 19,4 kw 2cil. MC41A B Bastidores: MLH-MC41A-B5000001-MLH MC41A-B5099999 2011-2012
Honda CBR 250 R 26,4 CV, 19,4 kw 2cil. MC41A D Bastidores: MLH MC41A-D5200001-- 2013-2014
Honda CBR 250 RA ABS 26,4 CV, 19,4 kw 2cil. MC41B B Bastidores: MLH MC41B-B5000001-MLH MC41B-B5099999 2011-2012
Honda CBR 250 RA ABS 26,4 CV, 19,4 kw 2cil. MC41B D Bastidores: MLH MC41B-D5100001-- 2013-2014
Honda CBR 250 RA ABS 26,4 CV, 19,4 kw 2cil. MC41B F Bastidores: MLH MC41B-F5200001-MLH MC41B-F5299999 2015
Honda CBR 250 RR 38 CV, 28 kw 2cil. - G Bastidores: --- 2016
Honda CBR 300 RA ABS 31 CV, 22,7 kw 1cil. NC51B F Bastidores: MLH NC51B-F5100001-MLH NC51B-F5199999 2014-2015
Honda CBR 300 RA ABS 31 CV, 22,7 kw 1cil. NC51B G Bastidores: MLH NC51B-G5200001-- 2016-2017
Honda CRF 250 L 23 CV, 17 kw 1cil. MD38A D Bastidores: MLH MD38A-D5000001-MLH MD38A-D5099999 2013-2014
Honda CRF 250 L 23 CV, 17 kw 1cil. MD38A F Bastidores: MLH MD38A-F5100001-MLH MD38A F5199999 2015-2016
Honda CRF 250 LA ABS 25 CV, 18 kw 1cil. MD44A H Bastidores: MLH MD44A-H5000001-- 2017-2018
Honda CRF 250 LA ABS 25 CV, 18 kw 1cil. MD44A K Bastidores: MLH MD44A-K5100001-- 2019-2020
Honda CRF 250 M 23 CV, 17 kw 1cil. MD38B E Bastidores: MLH MD38B-E5000001-MLH MD38B-E5099999 2014
Honda CRF 250 M 23 CV, 17 kw 1cil. MD38B F Bastidores: MLH MD38B-F5100001-MLH MD38B-F5199999 2015-2016
Honda CRF 250 RLA Rally ABS 25 CV, 18 kw 1cil. MD44B H Bastidores: MLH MD44B-H5000001-MLH MD44B-H5099999 2017
Honda CRF 250 RLA Rally ABS 25 CV, 18 kw 1cil. MD44B J Bastidores: MLH MD44B-J5100001-- 2018
Honda CRF 250 RLA Rally ABS 25 CV, 18 kw 1cil. MD44B K Bastidores: MLH MD44B-K5200001-- 2019-2020
Honda CRF 250 RLA Rally ABS Euro4 25 CV, 18 kw 1cil. MD44B K Bastidores: MLH MD44B-K5200001-- 2021
Honda CRF 300 L A ABS 27 CV, 20 kw 1cil. ND16B M Bastidores: MLH ND16B-M5000001-- 2021-2022
Honda CRF 300 LRA Rally ABS 27 CV, 20 kw 1cil. ND16A M Bastidores: MLH ND16A-M5000001-- 2021-2022
Honda NSR 250 R 45 CV, 33 kw 2cil. MC16 G Bastidores: MC16-1000033-MC16-1020966 1987
Honda NSR 250 R 45 CV, 33 kw 2cil. MC18 2J Bastidores: MC18-1000020-MC18-1026996 1988
Honda NSR 250 R 45 CV, 33 kw 2cil. MC18 5K Bastidores: MC18-1100017-MC18-1119489 1989
Honda NSR 250 R 45 CV, 33 kw 2cil. MC21 7L Bastidores: MC21-1000001-MC21-1024051 1990-1991
Honda NSR 250 R 45 CV, 33 kw 2cil. MC21 7N Bastidores: MC21-1060001-MC21-1075471 1992
Honda NSR 250 R SE 45 CV, 33 kw 2cil. MC21 9N Bastidores: MC21-1060006-MC21-1074871 1992
Honda NSR 250 R SP 45 CV, 33 kw 2cil. MC18 4J Bastidores: MC18-1008557-MC18-1020796 1988
Honda NSR 250 R SP 45 CV, 33 kw 2cil. MC18 6K Bastidores: MC18-1100038-MC18-1118089 1989
Honda NSR 250 R SP 45 CV, 33 kw 2cil. MC21 8L Bastidores: MC21-1000001-MC21-1014511 1990-1991
Honda NSR 250 R SP 45 CV, 33 kw 2cil. MC21 8N Bastidores: MC21-1060012-MC21-1069021 1992-1993
Honda XR 250 R 19 CV, 14 kw 1cil. ME08A 1 Bastidores: JH2 ME08A-1K420001-- 2001
Honda XR 250 R 19 CV, 14 kw 1cil. ME08A 2 Bastidores: JH2 ME08A-2K430001-- 2002
Honda XR 250 R 19 CV, 14 kw 1cil. ME08A 3 Bastidores: JH2 ME08A-3M440001-- 2003
Honda XR 250 R 19 CV, 14 kw 1cil. ME08A 4 Bastidores: JH2 ME08A-4K460001-- 2004
Honda XR 250 R 19 CV, 14 kw 1cil. ME08A T Bastidores: JH2 ME08A-TM000001-JH2 ME08A-TM000316 1996
Honda XR 250 R 19 CV, 14 kw 1cil. ME08A V Bastidores: JH2 ME08A-VM100001-JH2 ME08A-VM100469 1997
Honda XR 250 R 19 CV, 14 kw 1cil. ME08A W Bastidores: JH2 ME08A-WK300001-- 1998
Honda XR 250 R 19 CV, 14 kw 1cil. ME08A W Bastidores: JH2 ME08A-WM100001-JH2 ME08A-WM100196 1998
Honda XR 250 R 19 CV, 14 kw 1cil. ME08A X Bastidores: JH2 ME08A-XK400001-- 1999
Honda XR 250 R 19 CV, 14 kw 1cil. ME08A Y Bastidores: JH2 ME08A-YK410001-- 2000
