JT SPROCKETS coarse gear transmission pinion 15T P-520 6 Ø21/25MM 726.00.30

JT Sprockets Manufacturing is today the largest and most modern production facility for sprockets and pinions worldwide,

equipped, among others, with the latest generation of CNC manufacturing machines.

JT Sprockets produces the entire range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages, going through more than ten individual quality controls to successfully leave the production line.

JT Sprockets manufactures the right way - turning, milling and drilling! This is the only way to achieve the highest quality with the tightest tolerances and the best tooth profile.

After post heat treatment, each item is checked by hand, thus setting new JT Sprockets quality standards in the motorcycle industry.

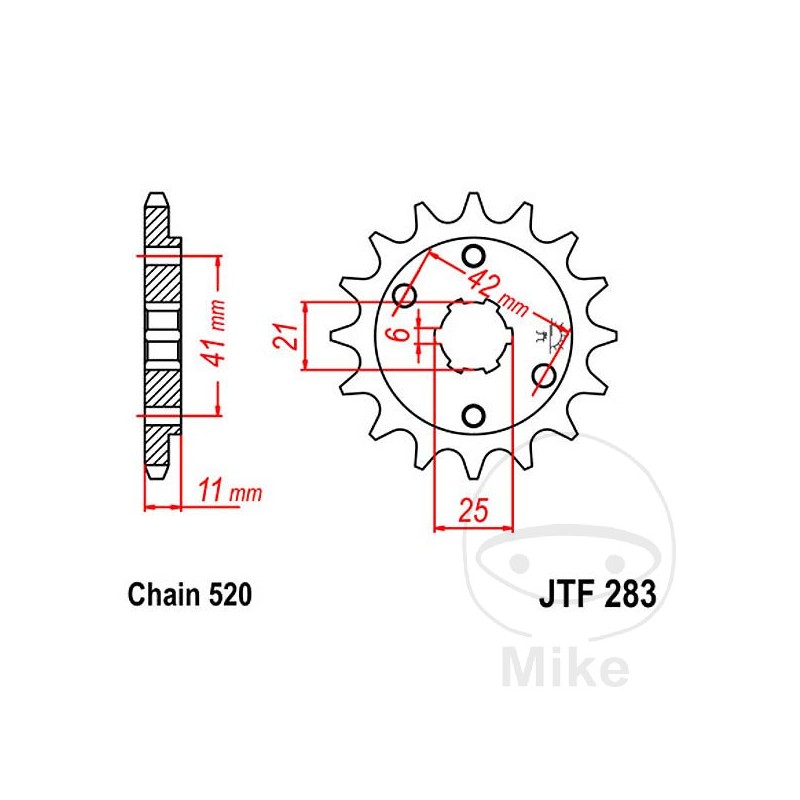

DIVISION: 520
CENTRAL FIXING: COARSE GEAR
INSIDE DIAMETER MIN.: 21 MM
MAX INTERNAL DIAMETER: 25 MM
INNER GEAR (QUANTITY OF TEETH): 6
INNER GEAR (DISTANCE): 6 MM
HOLES QUANTITY: 2
HOLES DISTANCE: 41
WIDTH: 11MM
VERSION: STANDARD
QTY TEETH: 15


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda NSR 250 R 40 CV, 29 kw 2cil. MC28 R Bastidores: MC28-1000001-MC28-1002443 1994
Honda NSR 250 R 45 CV, 33 kw 2cil. MC16 G Bastidores: MC16-1000033-MC16-1020966 1987
Honda NSR 250 R 45 CV, 33 kw 2cil. MC18 2J Bastidores: MC18-1000020-MC18-1026996 1988
Honda NSR 250 R 45 CV, 33 kw 2cil. MC18 5K Bastidores: MC18-1100017-MC18-1119489 1989
Honda NSR 250 R 45 CV, 33 kw 2cil. MC21 7L Bastidores: MC21-1000001-MC21-1024051 1990-1991
Honda NSR 250 R 45 CV, 33 kw 2cil. MC21 7N Bastidores: MC21-1060001-MC21-1075471 1992
Honda NSR 250 R SE 40 CV, 29 kw 2cil. MC28 2R Bastidores: MC28-1000001-MC28-1006513 1994-1995
Honda NSR 250 R SE 40 CV, 29 kw 2cil. MC28 2T Bastidores: MC28-1200001-- 1996
Honda NSR 250 R SE 40 CV, 29 kw 2cil. MC28 T Bastidores: MC28-1200001-- 1997-1999
Honda NSR 250 R SE 45 CV, 33 kw 2cil. MC21 9N Bastidores: MC21-1060006-MC21-1074871 1992
Honda NSR 250 R SP 40 CV, 29 kw 2cil. MC28 3R Bastidores: MC28-1000001-MC28-1006013 1994
Honda NSR 250 R SP 40 CV, 29 kw 2cil. MC28 3S Bastidores: MC28-1100001-MC28-1100901 1995
Honda NSR 250 R SP 40 CV, 29 kw 2cil. MC28 3T Bastidores: MC28-1200001-- 1996
Honda NSR 250 R SP 45 CV, 33 kw 2cil. MC18 4J Bastidores: MC18-1008557-MC18-1020796 1988
Honda NSR 250 R SP 45 CV, 33 kw 2cil. MC18 6K Bastidores: MC18-1100038-MC18-1118089 1989
Honda NSR 250 R SP 45 CV, 33 kw 2cil. MC21 8L Bastidores: MC21-1000001-MC21-1014511 1990-1991
Honda NSR 250 R SP 45 CV, 33 kw 2cil. MC21 8N Bastidores: MC21-1060012-MC21-1069021 1992-1993
Honda VT 250 F 35 CV, 26,5 kw 2cil. MC08 D Bastidores: MC08-2000019-- 1983-1987
