JT SPROCKETS coarse gear transmission pinion 15T P-520 5 Ø21/25MM 726.00.25

JT Sprockets Manufacturing is today the largest and most modern production facility for sprockets and pinions worldwide,

equipped, among others, with the latest generation of CNC manufacturing machines.

JT Sprockets produces the entire range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages, going through more than ten individual quality controls to successfully leave the production line.

JT Sprockets manufactures the right way - turning, milling and drilling! This is the only way to achieve the highest quality with the tightest tolerances and the best tooth profile.

After post heat treatment, each item is checked by hand, thus setting new JT Sprockets quality standards in the motorcycle industry.

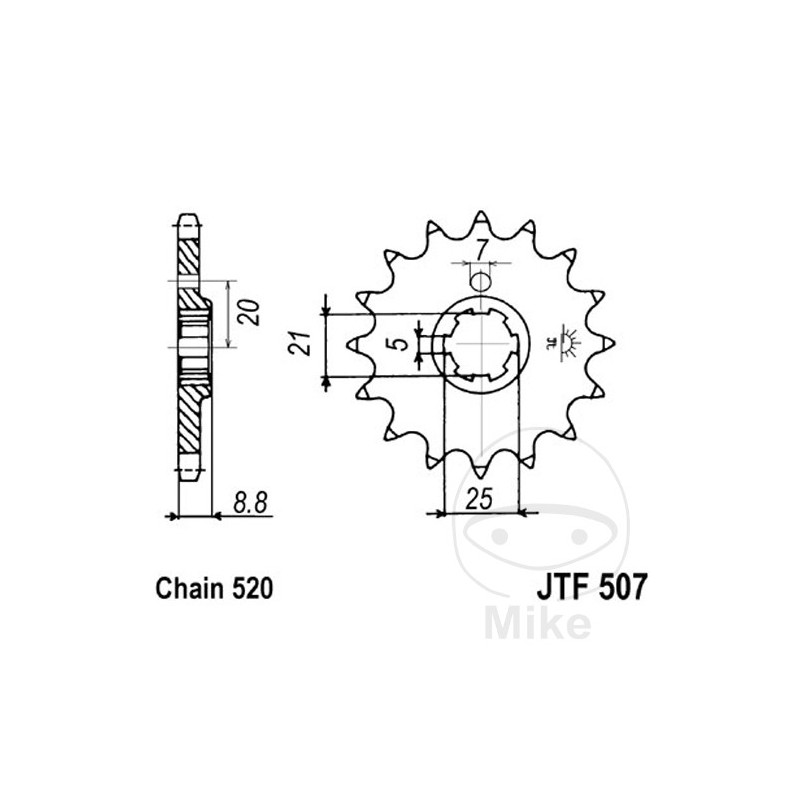

DIVISION: 520
CENTRAL FIXING: COARSE GEAR
INSIDE DIAMETER MIN.: 21 MM
MAX INTERNAL DIAMETER: 25 MM
INNER GEAR (QUANTITY OF TEETH): 6
INNER GEAR (DISTANCE): 5 MM
HOLES QUANTITY: 1
HOLES DISTANCE: 20
WIDTH: 8.8MM
VERSION: STANDARD
QTY TEETH: 15


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Husqvarna CR 250 52 CV, 38 kw 1cil. - Bastidores: --- 1993-1994
Husqvarna CR 250 54 CV, 40 kw 1cil. 5A0 Bastidores: 5A0-50001-- 1996-1998
Husqvarna CR 250 54 CV, 40 kw 1cil. 5A0 Bastidores: 5A0-50509-- 1995
Husqvarna CR 360 56 CV, 41 kw 1cil. - Bastidores: --- 1993-1994
Husqvarna WR 250 48/10 CV, 35/7,4 kw 1cil. 5A0 Bastidores: 5A0 henceforth0001-- 1996-1997
Husqvarna WR 250 48/10 CV, 35/7,4 kw 1cil. H300AA Bastidores: ZCG H300AA-WV000900-- 1998
Husqvarna WR 250 48/17 CV, 35/13 kw 1cil. 5A0 Bastidores: 5A0 henceforth0001-- 1993
Husqvarna WR 250 48/17 CV, 35/13 kw 1cil. 5A0 Bastidores: 5A0 henceforth1458-- 1994
Husqvarna WR 250 48/17 CV, 35/13 kw 1cil. 5A0 Bastidores: 5A0 henceforth2314-- 1995
Husqvarna WR 360 52 CV,38 kw 1cil. 4A0 Bastidores: 4A0 henceforth00001-- 1993
Husqvarna WR 360 52 CV,38 kw 1cil. 4A0 Bastidores: 4A0 henceforth1684-- 1994
Husqvarna WR 360 52 CV,38 kw 1cil. 4A0 Bastidores: 4A0 henceforth2743-- 1995
Husqvarna WR 360 52/17 CV, 38/13 kw 1cil. 4A0 Bastidores: 4A0 henceforth0001-- 1996-1997
Husqvarna WR 360 52/17 CV, 38/13 kw 1cil. H400AA Bastidores: ZCG H400AA-WV000700-ZCG H400AA-WV001160 1998
Husqvarna WR 360 52/17 CV, 38/13 kw 1cil. H400AA Bastidores: ZCG H400AA-XV001161-ZCG H400AA-XV001441 1999
Husqvarna WR 360 58/17 CV, 43/13 kw 1cil. H400AA Bastidores: ZCG H400AA-1V001731-ZCG H400AA-1V001781 2001
Husqvarna WR 360 58/17 CV, 43/13 kw 1cil. H400AA Bastidores: ZCG H400AA-YV001441-ZCG H400AA-YV001730 2000
Kawasaki KDX 250 A 1cil. - 1 Bastidores: --- 1980
Kawasaki KDX 250 B 1cil. - 1 Bastidores: --- 1981
Kawasaki KX 250 A 1cil. - Bastidores: --- 1974-1975
Kawasaki KX 250 A 1cil. - 3 Bastidores: --- 1976-1977
Kawasaki KX 250 A 1cil. - 4 Bastidores: --- 1978
Kawasaki KX 250 A 1cil. - 5 Bastidores: --- 1979
Kawasaki KX 250 A 1cil. - 6 Bastidores: --- 1980
Kawasaki KX 250 A 1cil. - 7 Bastidores: --- 1981
Kawasaki KX 250 B 1cil. - 1 Bastidores: --- 1982
Kawasaki KX 250 C 1cil. - 1 Bastidores: --- 1983
Kawasaki KX 250 C 1cil. - 2 Bastidores: --- 1984
Kawasaki KX 250 D 1cil. - 1 Bastidores: --- 1985
Kawasaki KX 250 D 1cil. - 2 Bastidores: --- 1986
Kawasaki KX 420 A 1cil. - 1 Bastidores: --- 1980
Kawasaki KX 500 A 1cil. - 1 Bastidores: --- 1983
Kawasaki KX 500 A 1cil. - 2 Bastidores: --- 1984
Kawasaki KX 500 B 1cil. - 1 Bastidores: --- 1985
Kawasaki KX 500 B 1cil. - 2 Bastidores: --- 1986
