JT SPROCKETS coarse gear transmission pinion 16T P-520 5 Ø21/25MM 726.00.22

JT Sprockets Manufacturing is today the largest and most modern production facility for sprockets and pinions worldwide,

equipped, among others, with the latest generation of CNC manufacturing machines.

JT Sprockets produces the entire range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages, going through more than ten individual quality controls to successfully leave the production line.

JT Sprockets manufactures the right way - turning, milling and drilling! This is the only way to achieve the highest quality with the tightest tolerances and the best tooth profile.

After post heat treatment, each item is checked by hand, thus setting new JT Sprockets quality standards in the motorcycle industry.

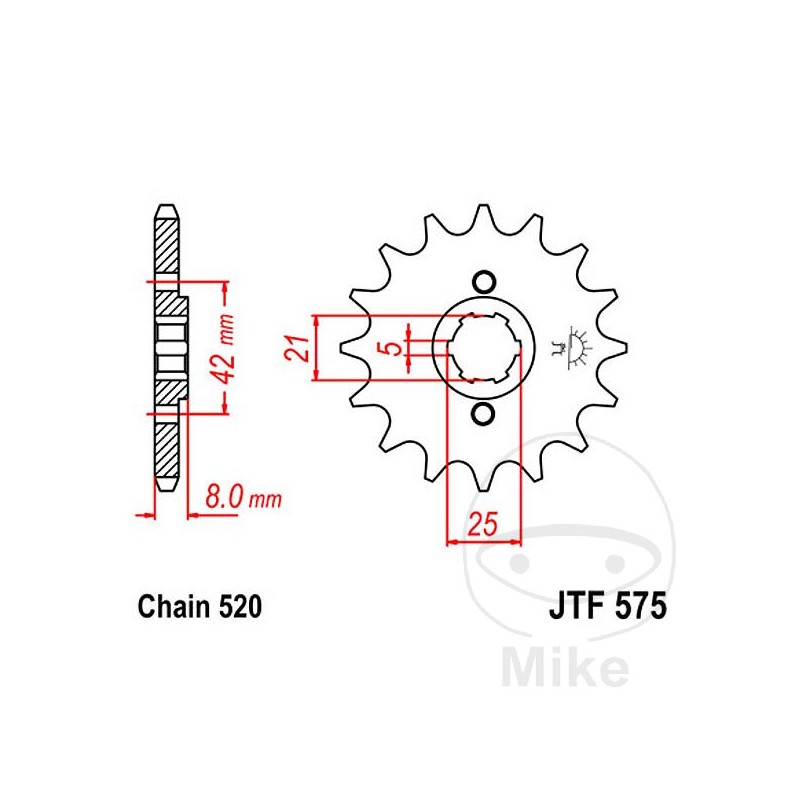

DIVISION: 520
CENTRAL FIXING: COARSE GEAR
INSIDE DIAMETER MIN.: 21 MM
MAX INTERNAL DIAMETER: 25 MM
INNER GEAR (QUANTITY OF TEETH): 6
INNER GEAR (DISTANCE): 5 MM
HOLES QUANTITY: 2
HOLES DISTANCE: 42 MM
WIDTH: 8MM
VERSION: STANDARD
QTY TEETH: 16


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha SRX 600 H 45 CV, 33 kw 1cil. 1XL 1XL Bastidores: 1XL henceforth00101-1XL henceforth05000 1986
Yamaha SRX 600 H 45 CV, 33 kw 1cil. 1XL 1XL Bastidores: 1XL henceforth05101-1XL henceforth12000 1987-1989
Yamaha SRX 600 N 27 CV, 20 kw 1cil. 1XM 1XM Bastidores: 1XM henceforth00101-1XM henceforth03000 1986
Yamaha SRX 600 N 27 CV, 20 kw 1cil. 1XM 1XM Bastidores: 1XM henceforth03101-1XM henceforth05000 1987-1989
Yamaha TT 600 1cil. 3SW 3SW2 Bastidores: 3SW henceforth00101-3SW henceforth02000 1990
Yamaha TT 600 1cil. 3SW 3SW3 Bastidores: 3SW henceforth02101-3SW henceforth03000 1991
Yamaha TT 600 1cil. 3SW 3SW4 Bastidores: 3SW henceforth03101-3SW henceforth04000 1992
Yamaha TT 600 1cil. 3SW 3SW5 Bastidores: 3SW henceforth04101-- 1993
Yamaha TT 600 1cil. 59X 2JT Bastidores: 59X henceforth10101-59X henceforth16000 1987-1988
Yamaha TT 600 1cil. 59X 3SW1 Bastidores: 59X henceforth16101-59X henceforth23000 1989
Yamaha TT 600 1cil. 59X 59X Bastidores: 59X henceforth00101-59X henceforth07000 1985-1986
Yamaha TT 600 K 43 CV, 32 kw 1cil. 36A 36A Bastidores: 36A henceforth00101-36A henceforth14000 1983-1984
Yamaha XJR 400 53,7 CV, 39,5 kw 4cil. 4HM 4HM1 Bastidores: 4HM henceforth00101-- 1993-1994
Yamaha XJR 400 53,7 CV, 39,5 kw 4cil. 4HM 4HM4 Bastidores: 4HM henceforth75101-4HM henceforth87999 1995
Yamaha XJR 400 53,7 CV, 39,5 kw 4cil. 4HM 4HM7 Bastidores: 4HM-102243-- 1996
Yamaha XJR 400 R 53,7 CV, 39,5 kw 4cil. 4HM 4HM3 Bastidores: 4HM henceforth50101-4HM henceforth74999 1995
Yamaha XJR 400 R 53,7 CV, 39,5 kw 4cil. 4HM 4HM6 Bastidores: 4HM henceforth98101-- 1996-1997
Yamaha XJR 400 R 53,7 CV, 39,5 kw 4cil. 4HM 4HM9 Bastidores: 4HM-112761-- 1998
Yamaha XJR 400 R 53,7 CV, 39,5 kw 4cil. 4HM 4HMA Bastidores: 4HM-118390-- 1999
Yamaha XJR 400 R 53,7 CV, 39,5 kw 4cil. 4HM 4HMB Bastidores: 4HM-118340- 1999
Yamaha XJR 400 R2 53,7 CV, 39,5 kw 4cil. 4HM 4HM5 Bastidores: 4HM henceforth96101-- 1996
Yamaha XJR 400 S 53,7 CV, 39,5 kw 4cil. 4HM 4HM2 Bastidores: 4HM henceforth25101-4HM henceforth50099 1994
Yamaha XT 550 27 CV, 20 kw 1cil. 5Y3 28E Bastidores: 5Y3-130101-5Y3-200000 1983
Yamaha XT 550 27 CV, 20 kw 1cil. 5Y3 5Y3 Bastidores: 5Y3 henceforth00101-5Y3-100000 1982
Yamaha XT 550 27 CV, 20 kw 1cil. 5Y3 5Y5 Bastidores: 5Y3-100101-5Y3-130000 1982
Yamaha XT 550 38 CV, 28 kw 1cil. 5Y3 28E Bastidores: 5Y3-130101-5Y3-200000 1983
Yamaha XT 550 38 CV, 28 kw 1cil. 5Y3 5Y3 Bastidores: 5Y3 henceforth00101-5Y3-100000 1982
Yamaha XT 550 38 CV, 28 kw 1cil. 5Y3 5Y5 Bastidores: 5Y3-100101-5Y3-130000 1982
Yamaha XT 600 H 44 CV, 32 kw 1cil. 43F 43F Bastidores: 43F henceforth00101-43F henceforth36000 1984-1986
Yamaha XT 600 N 27 CV, 20 kw 1cil. 43F 49H Bastidores: 43F henceforth36101-43F henceforth41000 1984-1986
Yamaha XT 600 Z Tenere 27 CV, 20 kw 1cil. 55W 55W Bastidores: 55W henceforth00101-55W henceforth20000 1985
Yamaha XT 600 Z Tenere 44 CV, 32 kw 1cil. 34L 34L Bastidores: 34L henceforth00101-34L henceforth20000 1983
Yamaha XT 600 Z Tenere 44 CV, 32 kw 1cil. 34L 50T Bastidores: 34L henceforth20101-34L henceforth33000 1984
Yamaha XT 600 Z Tenere 46 CV, 34 kw 1cil. 1VJ 1VJ Bastidores: 1VJ henceforth00101-1VJ henceforth41000 1986-1987
Yamaha XT 600 Z Tenere 46 CV, 34 kw 1cil. 55W 55W Bastidores: 55W henceforth00101-55W henceforth20000 1985
