JT SPROCKETS Pinion transmission racing fine gear 14T P-520 Ø21.2/23.8MM 726.00.21

JT Racing Sprocket Advantages

- Less weight through relief holes

- Self-cleaning effect through specially milled teeth.

- Made of high quality SCM420 Chromoly steel for maximum durability.

- Ideal for motocross and enduro.

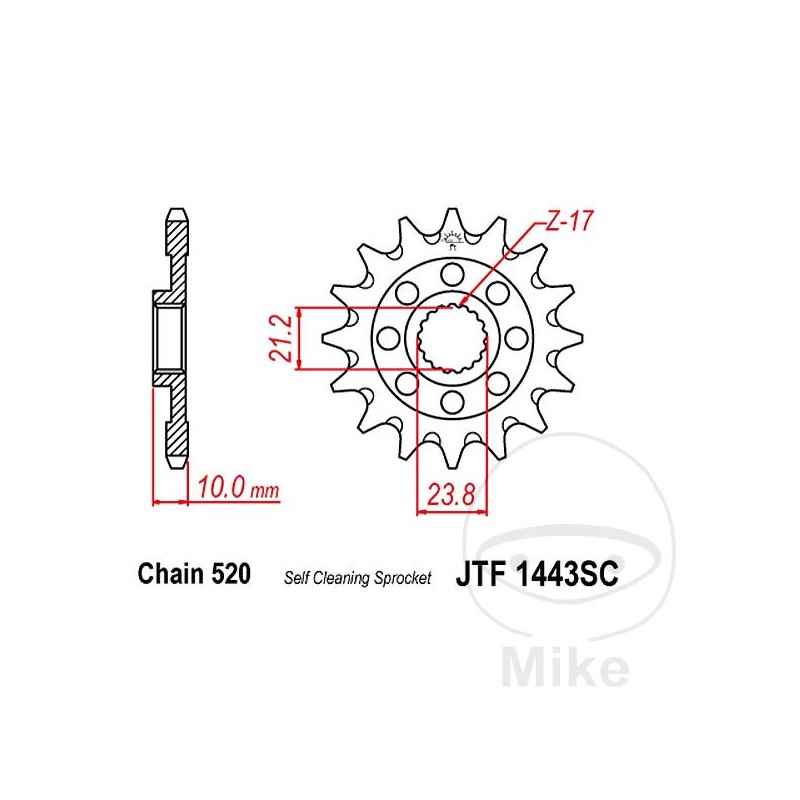

DIVISION: 520
CENTRAL FIXATION: FINE GEAR
INSIDE DIAMETER MIN.: 21.2 MM
MAX INSIDE DIAMETER: 23.8 MM
INNER GEAR (QUANTITY OF TEETH): 17
QUANTITY OF HOLES: WITHOUT HOLE
WIDTH: 10MM
VERSION: REDUCED WEIGHT
QTY TEETH: 14


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki RM-Z 450 57 CV, 42 kw 1cil. RL42A L3 Bastidores: RL42A henceforth00509746-- 2013
Suzuki RM-Z 450 57 CV, 42 kw 1cil. RL42A L4 Bastidores: RL42A henceforth00512422-- 2014
Suzuki RM-Z 450 57 CV, 42 kw 1cil. RL42A L5 Bastidores: RL42A henceforth00512452-RL42A henceforth00519999 2015
Suzuki RM-Z 450 57 CV, 42 kw 1cil. RL42A L6 Bastidores: RL42A henceforthG0500001-RL42A henceforthG0599999 2016
Suzuki RM-Z 450 57 CV, 42 kw 1cil. RL42A L7 Bastidores: RL42A henceforthH0500001-RL42A henceforthH0599999 2017
Suzuki RM-Z 450 58 CV, 43 kw 1cil. DZ117Z L8 Bastidores: DZ117Z-J2100001-DZ117Z-J2199999 2018
Suzuki RM-Z 450 58 CV, 43 kw 1cil. DZ117Z L9 Bastidores: DZ117Z-K7100001-DZ117Z-K7199999 2019
Suzuki RM-Z 450 58 CV, 43 kw 1cil. DZ117Z M0 Bastidores: DZ117Z-L7100001-DZ117Z-L7199999 2020
Suzuki RM-Z 450 58 CV, 43 kw 1cil. DZ117Z M1 Bastidores: DZ117Z-M7100001-DZ117Z-M7999999 2021
Suzuki RM-Z 450 58 CV, 43 kw 1cil. DZ117Z M2 Bastidores: DZ117Z-N7100001-DZ117Z-N7199999 2022
