JT SPROCKETS Pinion transmission racing fine gear 14T P-520 Ø19.5/22.5MM 726.00.19

JT Racing Sprocket Advantages

- Less weight through relief holes

- Self-cleaning effect through specially milled teeth.

- Made of high quality SCM420 Chromoly steel for maximum durability.

- Ideal for motocross and enduro.

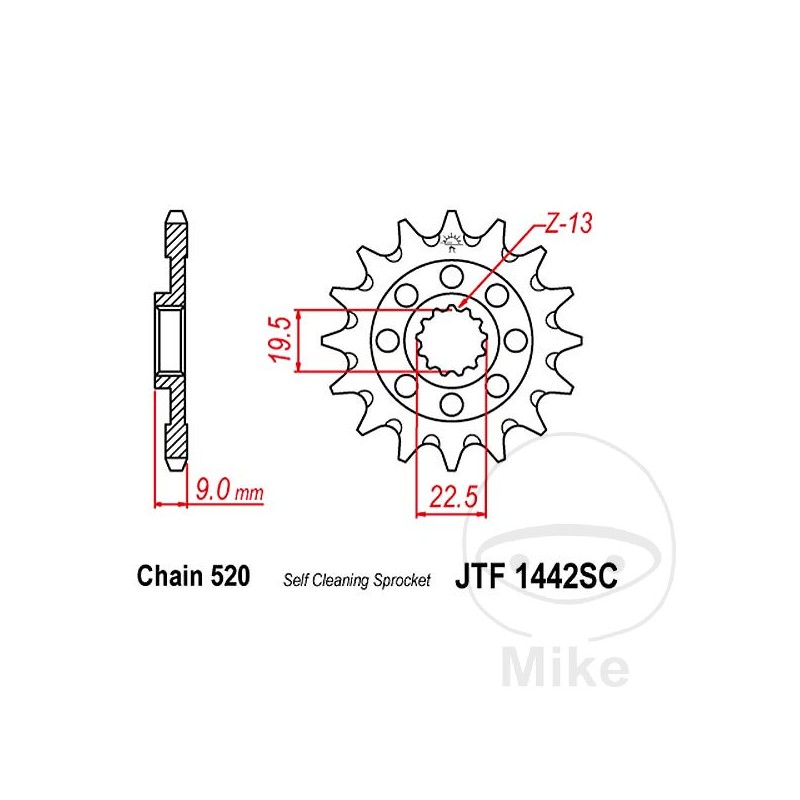

DIVISION: 520
CENTRAL FIXATION: FINE GEAR
INSIDE DIAMETER MIN.: 19.5 MM
MAX INSIDE DIAMETER: 22.5 MM
INNER GEAR (QUANTITY OF TEETH): 13
QUANTITY OF HOLES: WITHOUT HOLE
WIDTH: 9MM
VERSION: REDUCED WEIGHT
QTY TEETH: 14


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki RM-Z 250 1cil. RJ42A L3 Bastidores: RJ42A henceforth00508330-RJ42A henceforth00510690 2013
Suzuki RM-Z 250 40 CV, 29 kw 1cil. RJ42A L4 Bastidores: RJ42A henceforth00510691-RJ42A henceforth00512700 2014
Suzuki RM-Z 250 40 CV, 29 kw 1cil. RJ42A L5 Bastidores: RJ42A henceforth00512701-RJ42A henceforth00513958 2015
Suzuki RM-Z 250 40 CV, 29 kw 1cil. RJ42A L6 Bastidores: RJ42A henceforth00513959-RJ42A henceforth00519999 2016
Suzuki RM-Z 250 40 CV, 29 kw 1cil. RJ42A L7 Bastidores: RJ42A henceforthH0500001-RJ42A henceforthH0599999 2017
Suzuki RM-Z 250 40 CV, 29 kw 1cil. RJ42A L8 Bastidores: RJ42A henceforthJ0500001-RJ42A henceforthJ0599999 2018
Suzuki RM-Z 250 42 CV, 31 kw 1cil. EC117Z L9 Bastidores: EC117Z-K7100001-EC117Z-K9999999 2019
Suzuki RM-Z 250 42 CV, 31 kw 1cil. EC117Z M0 Bastidores: EC117Z-L7100001-EC117Z-L7199999 2020
Suzuki RM-Z 250 42 CV, 31 kw 1cil. EC117Z M1 Bastidores: EC117Z-M7100001-EC117Z-M7999999 2021
Suzuki RM-Z 250 42 CV, 31 kw 1cil. EC117Z M2 Bastidores: EC117Z-N7100001-EC117Z-N7999999 2022
