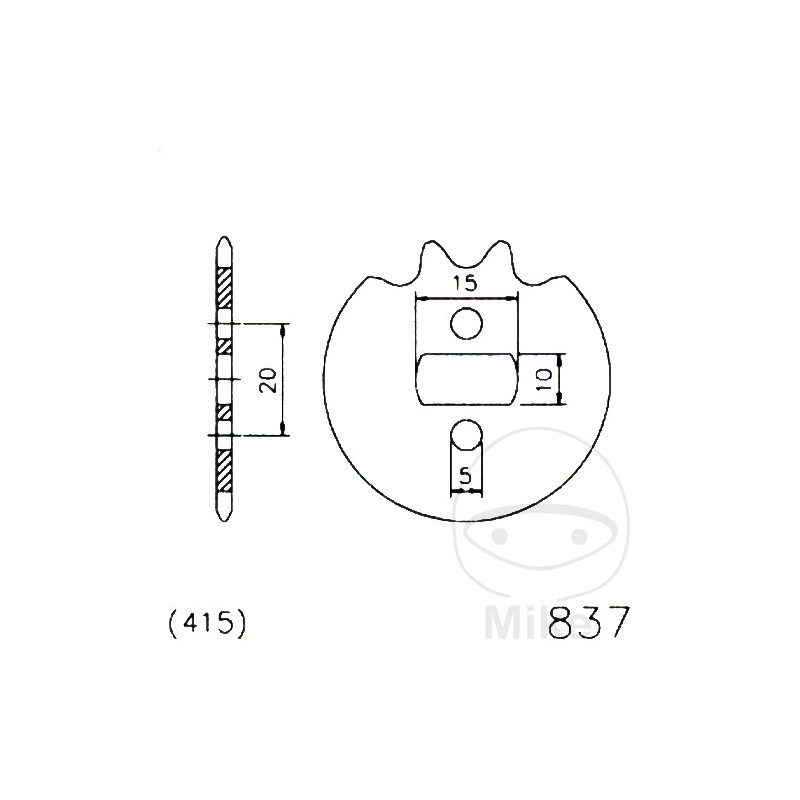

ESJOT Transmission sprocket long hole 11T 415 10/15 726.91.37

For Zündapp ZD30 model 446-200 from Fg.-Nr.9030749 to 9.235.092

with rear drum brakes with a diameter of 118 mm.
DIVISION: 415
CENTER FIXATION: LANGLOCH
MIN. INTERNAL DIAMETER: 10 MM
MAX INTERNAL DIAMETER: 15 MM
HOLES QUANTITY: 2
HOLES DISTANCE: 20 MM
VERSION: STANDARD
QTY TEETH: 11


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Zündapp ZA 25 25 1,7 CV, 1,25 kw 1cil. - 460 henceforth20 Bastidores: 9 304 576-9 423 459 1980-1981
Zündapp ZA 25 25 1,7 CV, 1,25 kw 1cil. - 460 henceforth21 Bastidores: 9 423 460-- 1981-1982
Zündapp ZA 25 25 1,7 CV, 1,25 kw 1cil. - 460 henceforth24 Bastidores: 6 021 343-- 1983-1984
Zündapp ZA 40 50 3,1 CV, 2,3 kw 1cil. - 460 henceforth30 Bastidores: 9 304 576-9 423 634 1980-1981
Zündapp ZA 40 50 3,1 CV, 2,3 kw 1cil. - 460 henceforth31 Bastidores: 9 350 185-- 1980-1981
Zündapp ZA 40 50 3,1 CV, 2,3 kw 1cil. - 460 henceforth33 Bastidores: 9 423 635-- 1982-1983
Zündapp ZB 22 25 1,7 CV, 1,25 kw 1cil. - 447 henceforth21 Bastidores: 9 268 032-9 279 947 1979
Zündapp ZD 10 25 1,7 CV, 1,25 kw 1cil. - 446-210 Bastidores: 9 101 887-9 264 539 1977-1978
Zündapp ZD 10 25 1,7 CV, 1,25 kw 1cil. - 446-211 Bastidores: 9 264 540-9 302 303 1979
Zündapp ZD 30 50 3,4 CV, 2,5 kw 1cil. - 446-200 Bastidores: 9 101 877-9 265 014 1977-1978
Zündapp ZD 30 50 3,4 CV, 2,5 kw 1cil. - 446-201 Bastidores: 9 265 015-9 302 303 1979
Zündapp ZR 10 25 1,4 CV, 1 kw 1cil. - 447-111 Bastidores: 9 280 373-9 304 575 1979
Zündapp ZR 10 25 llanta de fundición 1,4 CV, 1 kw 1cil. - 447-110 Bastidores: 9 079 009-9 280 372 1977-1979
Zündapp ZR 10 25 llanta de radios 1,4 CV, 1 kw 1cil. - 447-110 Bastidores: 9 079 009-9 280 372 1977-1979
Zündapp ZR 20 25 1,4 CV, 1 kw 1cil. - 447 henceforth22 Bastidores: 9 279 948-9 304 575 1979
Zündapp ZR 20 25 llanta de fundición 1,4 CV, 1 kw 1cil. - 447 henceforth20 Bastidores: 9 043 689-9 268 031 1977-1979
Zündapp ZR 20 25 llanta de radios 1,4 CV, 1 kw 1cil. - 447 henceforth20 Bastidores: 9 043 689-9 268 031 1977-1979
Zündapp ZR 30 50 2,5 CV, 1,8 kw 1cil. - 447-101 Bastidores: 9 280 298-9 304 575 1979
Zündapp ZR 30 50 llanta de radios 2,5 CV, 1,8 kw 1cil. - 447-100 Bastidores: 9 088 164-9 280 297 1977-1979
