ESJOT Fine gear transmission pinion 15T 520 Ø22/25 726.90.12

ESJOT sprocket has been specifically developed to meet OEM requirements and is among the world's best sprockets on the market.

A special steel, high-quality hardening and precise teeth provide extremely high strength and durability - ideal for wear-intensive conditions in all areas

- Steel 16 MnCR 5

- worked on CNC lathes

- hardening of 700 HV 40, for a depth of 0.4 mm

- modern broaching ensure a precise fit size on the motor shaft

- radial and axial run-out tolerance of less than 0.1 mm

- 100% Made in Germany

- OEM quality

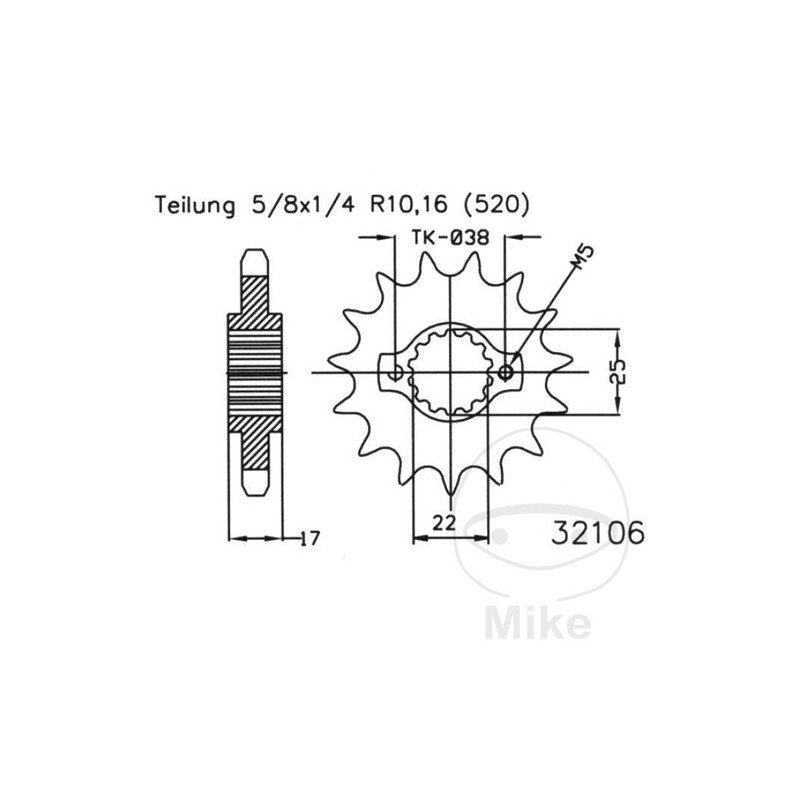

DIVISION: 520
CENTRAL FIXATION: FINE GEAR
INSIDE DIAMETER MIN.: 22 MM
MAX INTERNAL DIAMETER: 25 MM
INNER GEAR (QUANTITY OF TEETH): 14
HOLES QUANTITY: 2
HOLES DISTANCE: 38 MM
WIDTH: 17MM
VERSION: STANDARD
QTY TEETH: 15


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Ducati Monster 900 ie 78 CV, 57 kw 2cil. M200AA Bastidores: --- 2000-2001
Ducati Monster 900 ie City 78 CV, 57 kw 2cil. M200AA Bastidores: --- 2000
Ducati Monster 900 ie City Dark 78 CV, 57 kw 2cil. M200AA Bastidores: --- 2000
Ducati Monster 900 ie Cromo 78 CV, 57 kw 2cil. M200AA Bastidores: --- 2001
Ducati Monster 900 ie Dark 78 CV, 57 kw 2cil. M200AA Bastidores: --- 2000-2001
Ducati Monster 900 ie Metallic 78 CV, 57 kw 2cil. M200AA Bastidores: --- 2000-2001
Ducati Monster 900 S ie Special 78 CV, 57 kw 2cil. M200AA Bastidores: --- 2000-2001
