JT SPROCKETS Fine gear transmission pinion 15T 632 Ø24/28.5 726.50.10

The JT Sprockets production is today the largest and most modern production facility for sprockets and sprockets in the world.

equipped with the latest generation of CNC manufacturing machines.

JT Sprockets produces the full range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages and undergoes more than ten individual quality tests to successfully leave production.

JT Sprockets manufactures the right way: turning, milling, and drilling. This is the only way to achieve the highest quality with the lowest tolerances and the best tooth profile.

After subsequent heat treatment, each element is checked by hand; this is how JT Sprockets sets new standards of quality in the motorcycle industry.

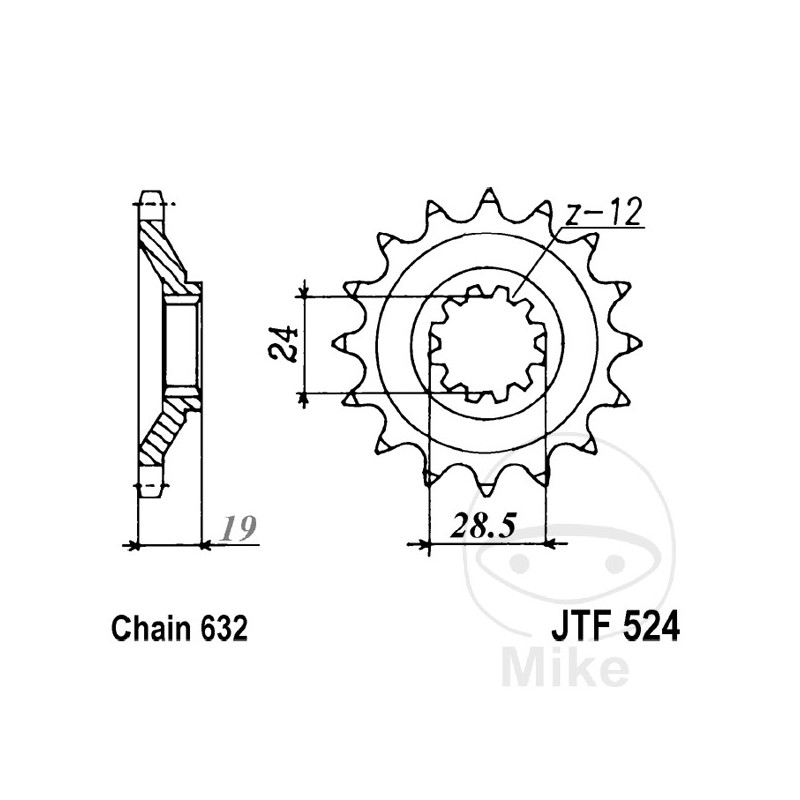

DIVISION: 632
CENTRAL FIXATION: FINE GEAR
INSIDE DIAMETER MIN.: 24 MM
MAX INSIDE DIAMETER: 28.5 MM
INNER GEAR (QUANTITY OF TEETH): 12
QUANTITY OF HOLES: WITHOUT HOLE
VERSION: STANDARD
QTY TEETH: 15


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Kawasaki GPZ 1000 RX Ninja 100 CV, 74 kw 4cil. ZXT00A A1 Bastidores: ZXT00A henceforth00001-ZXT00A henceforth14800 1986
Kawasaki GPZ 1000 RX Ninja 100 CV, 74 kw 4cil. ZXT00A A2 Bastidores: ZXT00A henceforth14801-ZX00A henceforth224000 1987
