JT SPROCKETS Fine gear transmission pinion 13T 520 Ø18.5/22 726.49.63

JT Sprockets Manufacturing is today the largest and most modern production facility for sprockets and pinions worldwide,

equipped, among others, with the latest generation of CNC manufacturing machines.

JT Sprockets produces the entire range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages, going through more than ten individual quality controls to successfully leave the production line.

JT Sprockets manufactures the right way - turning, milling and drilling! This is the only way to achieve the highest quality with the tightest tolerances and the best tooth profile.

After post heat treatment, each item is checked by hand, thus setting new JT Sprockets quality standards in the motorcycle industry.

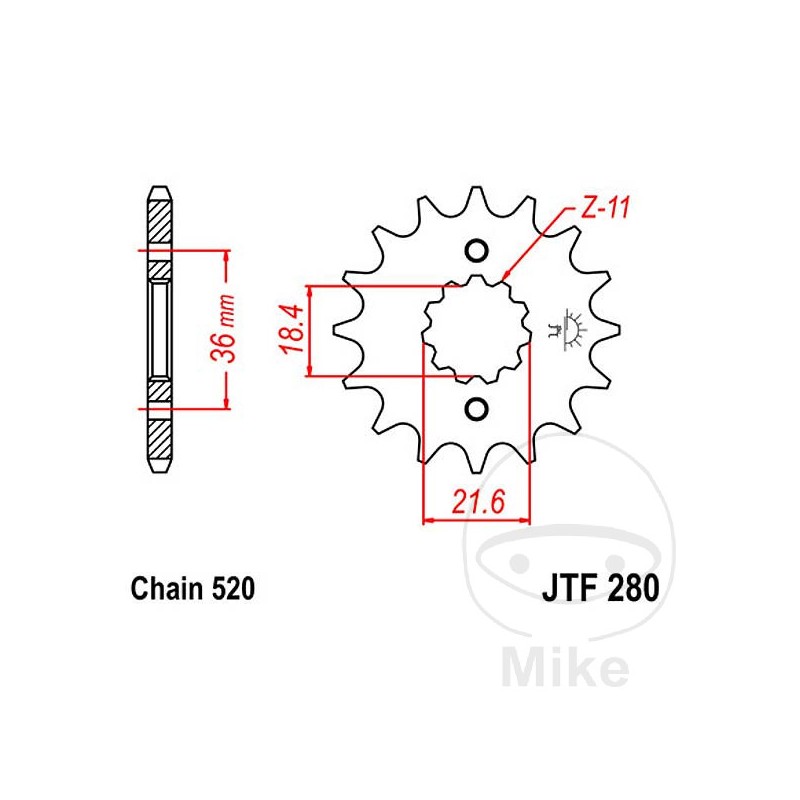

DIVISION: 520
CENTRAL FIXATION: FINE GEAR
INSIDE DIAMETER MIN.: 18.4 MM
MAX INSIDE DIAMETER: 21.6 MM
INNER GEAR (QUANTITY OF TEETH): 11
HOLES QUANTITY: 2
HOLES DISTANCE: 36 MM
VERSION: STANDARD
QTY TEETH: 13


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda NX 250 17 CV, 12,5 kw 1cil. MD25 2L Bastidores: MD25-3100001-MD25-3100511 1990-1992
Honda NX 250 17 CV, 12,5 kw 1cil. MD25 2L Bastidores: MD25-6000001-MD25-6000435 1990-1992
Honda NX 250 17 CV, 12,5 kw 1cil. MD25 2P Bastidores: MD25-3300001-- 1993-1995
Honda NX 250 17 CV, 13 kw 1cil. MD21 J Bastidores: MD21-6000001-MD21-6000803 1988
Honda NX 250 17 CV, 13 kw 1cil. MD21 K Bastidores: MD21-6100001-MD21-6100245 1989
Honda NX 250 17 CV, 13 kw 1cil. MD21 L Bastidores: MD21-6200001-MD21-6200340 1990-1992
Honda NX 250 23 CV, 17 kw 1cil. MD25 2L Bastidores: MD25-5000007-MD25-5000788 1990-1992
Honda NX 250 23 CV, 17 kw 1cil. MD25 2L Bastidores: MD25-5100011-MD25-5101115 1990-1992
Honda NX 250 23 CV, 17 kw 1cil. MD25 2P Bastidores: MD25-5300173-- 1993-1995
Honda NX 250 26 CV, 19 kw 1cil. MD21 J Bastidores: MD21-5000008-MD21-5002045 1988
Honda NX 250 26 CV, 19 kw 1cil. MD21 K Bastidores: MD21-5100001-MD21-5100130 1989
Honda NX 250 26 CV, 19 kw 1cil. MD21 L Bastidores: MD21-5200001-MD21-5201051 1990-1992
