JT SPROCKETS Fine gear transmission pinion 15T 428 Ø21.4/23 726.48.64

JT Sprockets Manufacturing is today the largest and most modern production facility for sprockets and pinions worldwide,

equipped, among others, with the latest generation of CNC manufacturing machines.

JT Sprockets produces the entire range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages, going through more than ten individual quality controls to successfully leave the production line.

JT Sprockets manufactures the right way - turning, milling and drilling! This is the only way to achieve the highest quality with the tightest tolerances and the best tooth profile.

After post heat treatment, each item is checked by hand, thus setting new JT Sprockets quality standards in the motorcycle industry.

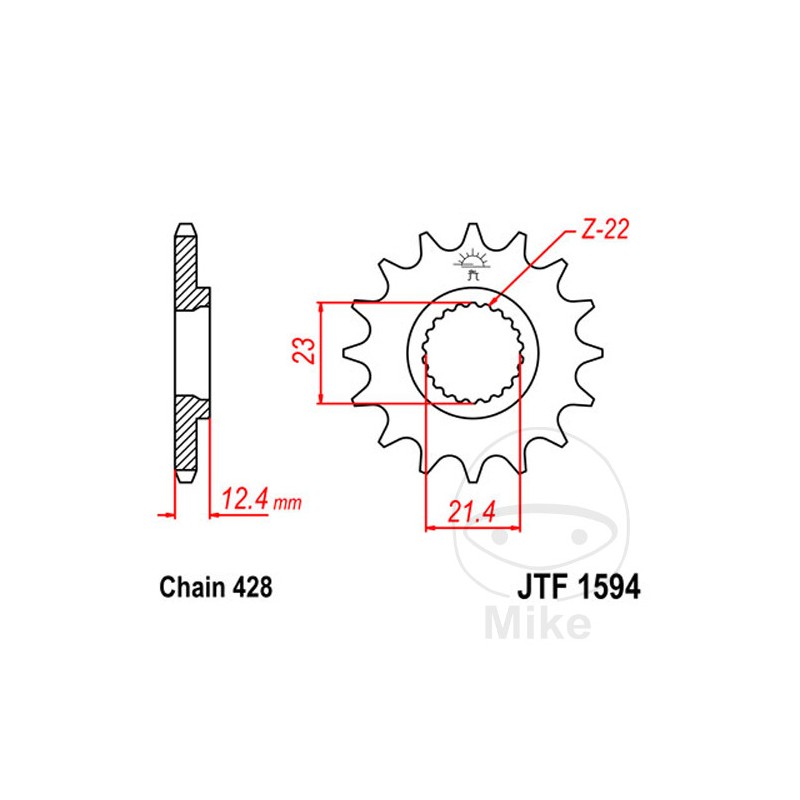

DIVISION: 428
CENTRAL FIXATION: FINE GEAR
INSIDE DIAMETER MIN.: 21.4 MM
MAX INTERNAL DIAMETER: 23 MM
INNER GEAR (QUANTITY OF TEETH): 22
QUANTITY OF HOLES: WITHOUT HOLE
WIDTH: 12.4MM
VERSION: STANDARD
QTY TEETH: 15


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha XG 250 Tricker 19 CV, 14 kw 1cil. DG141 4D61 Bastidores: DG141 henceforth00301-- 2005-2006
Yamaha XG 250 Tricker 19 CV, 14 kw 1cil. DG141 4D62 Bastidores: DG141 henceforth00371-- 2005-2006
Yamaha XT 250 1cil. - Bastidores: --- 2008-2015
Yamaha YBR 250 21 CV, 15,7 kw 1cil. RG021 5D11 Bastidores: RG021 henceforth00103-- 2007-2008
Yamaha YBR 250 21 CV, 15,7 kw 1cil. RG021 5D13 Bastidores: RG021 henceforth09601-- 2009-2010
Yamaha YBR 250 21 CV, 15,7 kw 1cil. RG021 5D14 Bastidores: RG021 henceforth10201-- 2011-2013
