ESJOT Transmission sprocket long hole 10T 415 12.2/15 726.43.10

ESJOT gear designed specifically for high OEM requirements and among the world's best sprockets on the market.

A special steel, high-quality hardening and optimum gearing guarantee extremely high strength and durability - ideal for high-wear conditions in all areas

- Steel 16 MnCR 5

- Worked on CNC lathes

- Hardening of 700 HV 40 for a depth of 0.4 mm

- Modern broaching guarantees an exact fit size on the motor shaft

- Radial and axial runout tolerance of less than 0.1mm

- 100% Made in Germany

- OEM quality

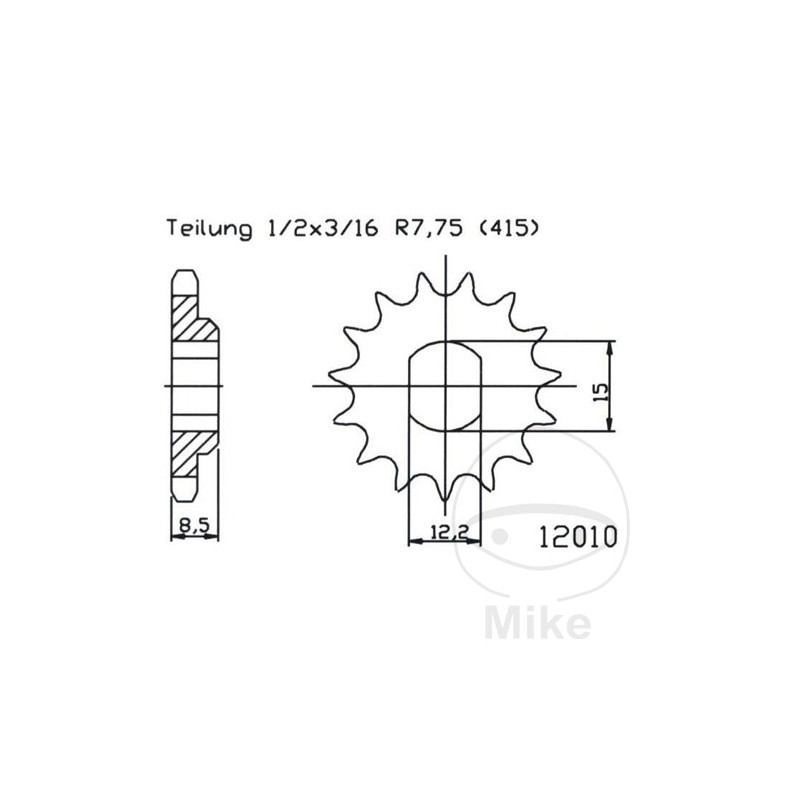

DIVISION: 415
CENTER FIXATION: LANGLOCH
INSIDE DIAMETER MIN.: 12.2 MM
MAX INTERNAL DIAMETER: 15 MM
QUANTITY OF HOLES: WITHOUT HOLE
WIDTH: 8.5MM
VERSION: STANDARD
QTY TEETH: 10


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Husqvarna TC 50 1cil. - Bastidores: --- 2017-2021
Husqvarna TC 50 Mini 1cil. - Bastidores: --- 2018-2021
KTM Mini Adventure 50 1,5 CV, 1,1 kw 1cil. - Bastidores: --- 2000
KTM Mini Adventure 50 2 CV, 1,4 kw 1cil. - Bastidores: --- 2001
KTM Mini Adventure 50 2 CV, 1,4 kw 1cil. - Bastidores: --, 2002
KTM Mini Adventure 50 2 CV, 1,5 kw 1cil. - Bastidores: --- 2003-2006
KTM Mini Adventure 50 2,2 CV, 1,6 kw 1cil. - Bastidores: --- 2007
KTM Mini Adventure 50 Junior 5 CV, 3,7 kw 1cil. - Bastidores: --- 2002-2003
KTM Mini Adventure 50 Senior 6 CV, 4,4 kw 1cil. - Bastidores: --- 2006-2007
KTM Mini Adventure 50 Senior 6,4 CV, 4,7 kw 1cil. - Bastidores: --- 2002-2005
KTM SX 50 LC 1cil. - Bastidores: --- 2006-2007
KTM SX 50 LC 1cil. - Bastidores: --- 2017-2022
KTM SX 50 LC 10,5 CV, 7,7 kw 1cil. - Bastidores: --- 2009-2016
KTM SX 50 LC 11 CV, 8,1 kw 1cil. - Bastidores: --- 2008
KTM SX 50 LC Factory Edition 1cil. - Bastidores: --- 2021-2022
KTM SX 50 LC Mini 1cil. - Bastidores: --- 2017-2018
KTM SX 50 LC Mini 1cil. - Bastidores: --- 2021-2022
KTM SX 50 LC Pro-Junior 10 CV, 7,4 kw 1cil. - Bastidores: --- 2002-2005
KTM SX 50 LC Pro-Senior 12 CV, 8,8 kw 1cil. - Bastidores: --- 2002-2005
