JT SPROCKETS coarse gear transmission pinion 14T 520 6 Ø21/25 726.42.94

JT Sprockets Manufacturing is today the largest and most modern production facility for sprockets and pinions worldwide,

equipped, among others, with the latest generation of CNC manufacturing machines.

JT Sprockets produces the entire range of sprockets and sprockets for the original equipment and aftermarket.

Each sprocket and sprocket goes through 25 stages of production, going through more than ten individual quality tests to successfully roll off the production line.

JT Sprockets manufactures the right way - turning, milling and drilling! This is the only way to achieve the highest quality with the tightest tolerances and the best tooth profile.

After post heat treatment, each item is checked by hand, thus setting new JT Sprockets quality standards in the motorcycle industry.

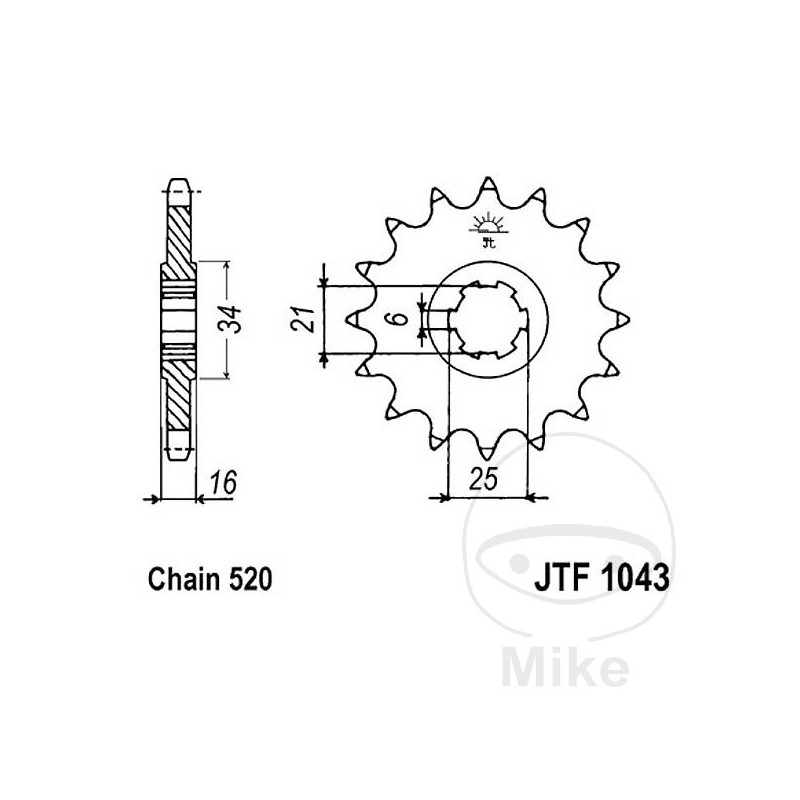

DIVISION: 520
CENTRAL FIXING: COARSE GEAR
INSIDE DIAMETER MIN.: 21 MM
MAX INTERNAL DIAMETER: 25 MM
INNER GEAR (QUANTITY OF TEETH): 6
INNER GEAR (DISTANCE): 6 MM
QUANTITY OF HOLES: WITHOUT HOLE
HOLES DISTANCE: 34 MM
WIDTH: 16MM
VERSION: STANDARD
QTY TEETH: 14


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Kymco Venox 250 27 CV, 20 kw 2cil. R20010 Bastidores: RFBR20010-- 2002-2004
Kymco Venox 250 27 CV, 20 kw 2cil. R20011 Bastidores: RFBR20011-- 2004-2006
Kymco Venox 250 i 29,7 CV, 21,8 kw 2cil. R20012 Bastidores: RFBR20012-- 2007-2013
