JT SPROCKETS Fine gear transmission pinion 14T 520 Ø21.4/23 726.42.78

The JT Sprockets production is today the largest and most modern production facility for sprockets and sprockets in the world.

equipped with the latest generation of CNC manufacturing machines.

JT Sprockets produces the full range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages and undergoes more than ten individual quality tests to successfully leave production.

JT Sprockets manufactures the right way: turning, milling, and drilling. This is the only way to achieve the highest quality with the lowest tolerances and the best tooth profile.

After subsequent heat treatment, each element is checked by hand; this is how JT Sprockets sets new standards of quality in the motorcycle industry.

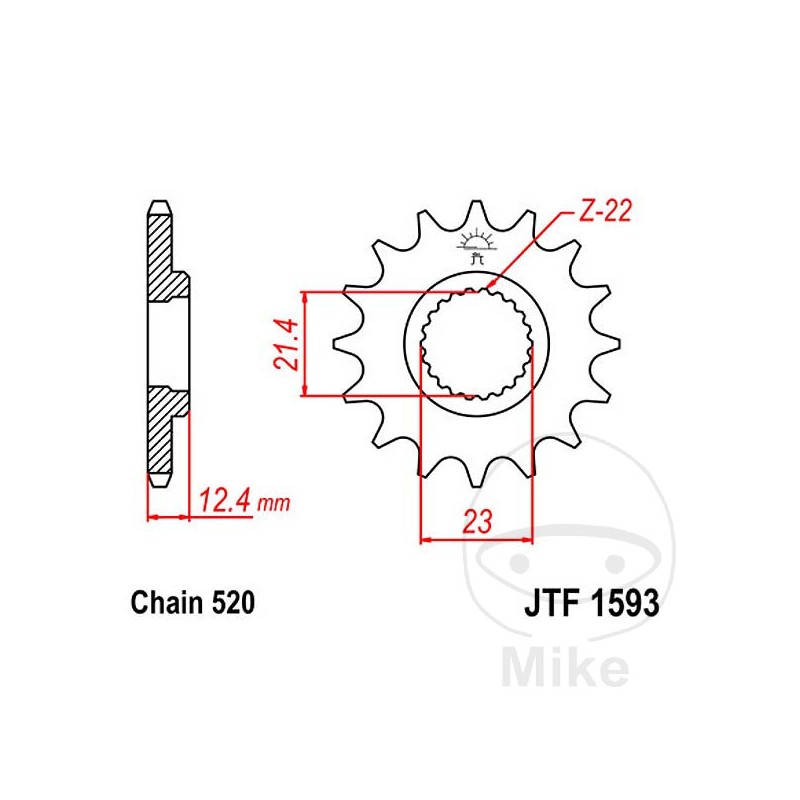

DIVISION: 520
CENTRAL FIXATION: FINE GEAR
INSIDE DIAMETER MIN.: 21.4 MM
MAX INTERNAL DIAMETER: 23 MM
INNER GEAR (QUANTITY OF TEETH): 22
QUANTITY OF HOLES: WITHOUT HOLE
WIDTH: 12.4MM
VERSION: STANDARD
QTY TEETH: 14


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha YFM 250 R SE Special Edition YFM25RSE 20 CV, 15 kw 1cil. AG03W 4D3K Bastidores: AG03W henceforth05863-- 2009
Yamaha YFM 250 R SE Special Edition YFM25RSE 20 CV, 15 kw 1cil. AG03W 4D3P Bastidores: AG03W henceforth05602-- 2009
Yamaha YFM 250 R SE Special Edition YFM25RSE 20 CV, 15 kw 1cil. AG06W 33B2 Bastidores: AG06W henceforth00808-- 2009
Yamaha YFM 250 R SE Special Edition YFM25RSE 20 CV, 15 kw 1cil. AG06W 33B3 Bastidores: AG06W henceforth00656-- 2009
Yamaha YFM 250 R YFM25R 20 CV, 15 kw 1cil. AG03W 1BT3 Bastidores: AG03W henceforth06736-- 2010
Yamaha YFM 250 R YFM25R 20 CV, 15 kw 1cil. AG03W 1BTA Bastidores: AG03W henceforth07473-- 2011
Yamaha YFM 250 R YFM25R 20 CV, 15 kw 1cil. AG03W 1BTH Bastidores: AG03W henceforth09546-- 2012
Yamaha YFM 250 R YFM25R 20 CV, 15 kw 1cil. AG03W 1BTP Bastidores: AG03W henceforth10490-- 2013-2014
Yamaha YFM 250 R YFM25R 20 CV, 15 kw 1cil. AG03W 4D33 Bastidores: AG03W henceforth00047-- 2008
Yamaha YFM 250 R YFM25R 20 CV, 15 kw 1cil. AG03W 4D37 Bastidores: AG03W henceforth00669-- 2008
Yamaha YFM 250 R YFM25R 20 CV, 15 kw 1cil. AG03W 4D3B Bastidores: AG03W henceforth00638-- 2008
Yamaha YFM 250 R YFM25R 20 CV, 15 kw 1cil. AG03W 4D3F Bastidores: AG03W henceforth05034-- 2009
Yamaha YFM 250 R YFM25R 20 CV, 15 kw 1cil. AG06W 33B1 Bastidores: AG06W henceforth00017-- 2009
Yamaha YFM 250 R YFM25R 20 CV, 15 kw 1cil. AG06W 33B4 Bastidores: AG06W henceforth01750-- 2010
Yamaha YFM 250 R YFM25R 20 CV, 15 kw 1cil. AG06W 33B5 Bastidores: AG06W henceforth02432-- 2011
Yamaha YFM 250 R YFM25R 20 CV, 15 kw 1cil. AG06W 33B7 Bastidores: AG06W henceforth03346-- 2012
Yamaha YFM 250 R YFM25R 20 CV, 15 kw 1cil. AG06W 33B8 Bastidores: AG06W henceforth03346-- 2013-2014
