JT SPROCKETS Fine gear transmission pinion 12T 520 Ø22/25 726.37.34

JT Sprockets Manufacturing is today the largest and most modern production facility for sprockets and pinions worldwide,

equipped, among others, with the latest generation of CNC manufacturing machines.

JT Sprockets produces the entire range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages, going through more than ten individual quality controls to successfully leave the production line.

JT Sprockets manufactures the right way - turning, milling and drilling! This is the only way to achieve the highest quality with the tightest tolerances and the best tooth profile.

After post heat treatment, each item is checked by hand, thus setting new JT Sprockets quality standards in the motorcycle industry.

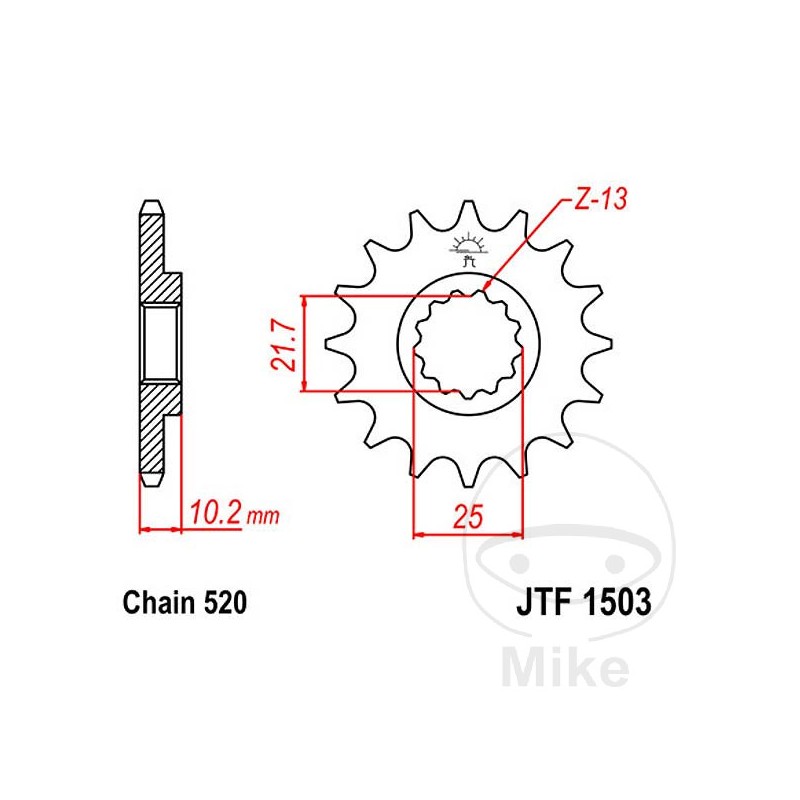

DIVISION: 520
CENTRAL FIXATION: FINE GEAR
INSIDE DIAMETER MIN.: 21.7 MM
MAX INTERNAL DIAMETER: 25 MM
INNER GEAR (QUANTITY OF TEETH): 13
QUANTITY OF HOLES: WITHOUT HOLE
WIDTH: 10.2MM
VERSION: STANDARD
QTY TEETH: 12


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Kawasaki KEF 300 B Lakota Sport 21,5 CV, 15,8 kw 1cil. - 1 Bastidores: --- 2001
Kawasaki KEF 300 B Lakota Sport 21,5 CV, 15,8 kw 1cil. - 2 Bastidores: --- 2002
Kawasaki KEF 300 B Lakota Sport 21,5 CV, 15,8 kw 1cil. - 3 Bastidores: --- 2003
Kawasaki KFX 250 A Mojave KSF 25 CV, 18,4 kw 1cil. SF250AAB 14 Bastidores: SF250AAB-602101-SF250AAB-603000 2000
Kawasaki KFX 250 A Mojave KSF 25 CV, 18,4 kw 1cil. SF250AAB 15 Bastidores: SF250AAB-603001-SF250AAB-604000 2001
Kawasaki KFX 250 A Mojave KSF 25 CV, 18,4 kw 1cil. SF250AAB 16 Bastidores: SF250AAB-604001-SF250AAB-604400 2002
Kawasaki KFX 250 A Mojave KSF 25 CV, 18,4 kw 1cil. SF250AAB 17 Bastidores: SF250AAB-604401-SF250AAB-605000 2003
Kawasaki KFX 250 A Mojave KSF 25 CV, 18,4 kw 1cil. SF250AAB 18 Bastidores: SF250AAB-605001-SF250AAB-999999 2004
