JT SPROCKETS coarse gear transmission pinion 14T 428 5 Ø18/22 726.34.86

JT Sprockets Manufacturing is today the largest and most modern production facility for sprockets and pinions worldwide,

equipped, among others, with the latest generation of CNC manufacturing machines.

JT Sprockets produces the entire range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages, going through more than ten individual quality controls to successfully leave the production line.

JT Sprockets manufactures the right way - turning, milling and drilling! This is the only way to achieve the highest quality with the tightest tolerances and the best tooth profile.

After post heat treatment, each item is checked by hand, thus setting new JT Sprockets quality standards in the motorcycle industry.

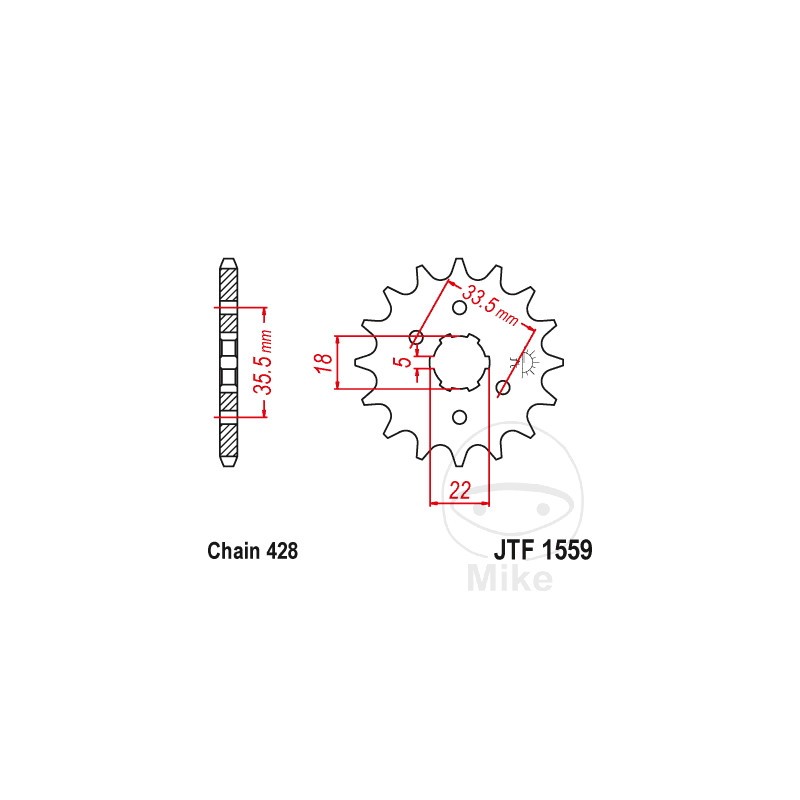

DIVISION: 428
CENTRAL FIXING: COARSE GEAR
INSIDE DIAMETER MIN.: 18 MM
MAX INTERNAL DIAMETER: 22 MM
INNER GEAR (QUANTITY OF TEETH): 6
INNER GEAR (DISTANCE): 5 MM
HOLES QUANTITY: 2
HOLES DISTANCE: 35.5 MM
VERSION: STANDARD
QTY TEETH: 14


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha TW 125 H Trailway 12 CV, 8,7 kw 1cil. DE011 5EK1 Bastidores: DE011 henceforth00301-- 1999
Yamaha TW 125 H Trailway 12 CV, 8,7 kw 1cil. DE011 5EK3 Bastidores: DE011 henceforth09747-- 2000
Yamaha TW 125 H Trailway 12 CV, 8,7 kw 1cil. DE011 5EK5 Bastidores: DE011 henceforth19542-- 2001
Yamaha TW 125 H Trailway 12 CV, 8,7 kw 1cil. DE051 5RS1 Bastidores: DE051 henceforth00301-- 2002
Yamaha TW 125 H Trailway 12 CV, 8,7 kw 1cil. DE054 5RS3 Bastidores: DE054 henceforth00301-- 2003
Yamaha TW 125 H Trailway 12 CV, 8,7 kw 1cil. DE054 5RS5 Bastidores: DE054 henceforth04976-- 2004
Yamaha TW 125 N Trailway 80 Km/h 12 CV, 8,7 kw 1cil. DE012 5EK2 Bastidores: DE012 henceforth00301-- 1999
Yamaha TW 125 N Trailway 80 Km/h 12 CV, 8,7 kw 1cil. DE012 5EK4 Bastidores: DE012 henceforth01270-- 2000
Yamaha TW 125 N Trailway 80 Km/h 12 CV, 8,7 kw 1cil. DE012 5EK6 Bastidores: DE012 henceforth01510-- 2001
Yamaha TW 125 N Trailway 80 Km/h 12 CV, 8,7 kw 1cil. DE052 5RS2 Bastidores: DE052 henceforth00301-- 2002
Yamaha TW 125 N Trailway 80 Km/h 12 CV, 8,7 kw 1cil. DE055 5RS4 Bastidores: DE055 henceforth00301-- 2003
Yamaha TW 200 E Trailway 16 CV, 11,7 kw 1cil. 3AW 10D8 Bastidores: 3AW-118626-- 2008-2015
Yamaha TW 200 E Trailway 16 CV, 11,7 kw 1cil. 3LY 3LY1 Bastidores: 3LY henceforth00101-- 1989-1993
Yamaha TW 200 E Trailway 16 CV, 11,7 kw 1cil. 3LY 3LY2 Bastidores: 3LY henceforth03101-3LY henceforth05999 1994
Yamaha TW 200 E Trailway 16 CV, 11,7 kw 1cil. 3XT 3XTD Bastidores: 3XT henceforth08595-- 2003
Yamaha TW 200 E Trailway 16 CV, 11,7 kw 1cil. 3XT 3XTE Bastidores: 3XT henceforth08847-- 2004
Yamaha TW 200 E Trailway 16 CV, 11,7 kw 1cil. 3XT 3XTF Bastidores: 3XT henceforth09401-- 2005
Yamaha TW 200 E Trailway 16 CV, 11,7 kw 1cil. 3XT 3XTG Bastidores: 3XT henceforth10175-- 2006
Yamaha TW 200 E Trailway 16 CV, 11,7 kw 1cil. 3XT 3XTH Bastidores: 3XT henceforth11053-- 2007
Yamaha TW 200 Trailway 16 CV, 11,7 kw 1cil. 2JL 2JL Bastidores: 2JL henceforth00101-- 1987-1990
Yamaha TW 200 Trailway 16 CV, 11,7 kw 1cil. 2JL 4CS1 Bastidores: 2JL henceforth11101-- 1991
Yamaha YS 125 CBS 10,6 CV, 7,8 kw 1cil. RE331 BT41 Bastidores: RE331 henceforth00006-- 2017-2021
