JT SPROCKETS Fine gear transmission pinion 12T 520 Ø18/20 726.32.62

JT Sprockets Manufacturing is today the largest and most modern production facility for sprockets and pinions worldwide,

equipped, among others, with the latest generation of CNC manufacturing machines.

JT Sprockets produces the entire range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages, going through more than ten individual quality controls to successfully leave the production line.

JT Sprockets manufactures the right way - turning, milling and drilling! This is the only way to achieve the highest quality with the tightest tolerances and the best tooth profile.

After subsequent heat treatment, each item is checked by hand, thus setting new quality standards in the motorcycle industry.

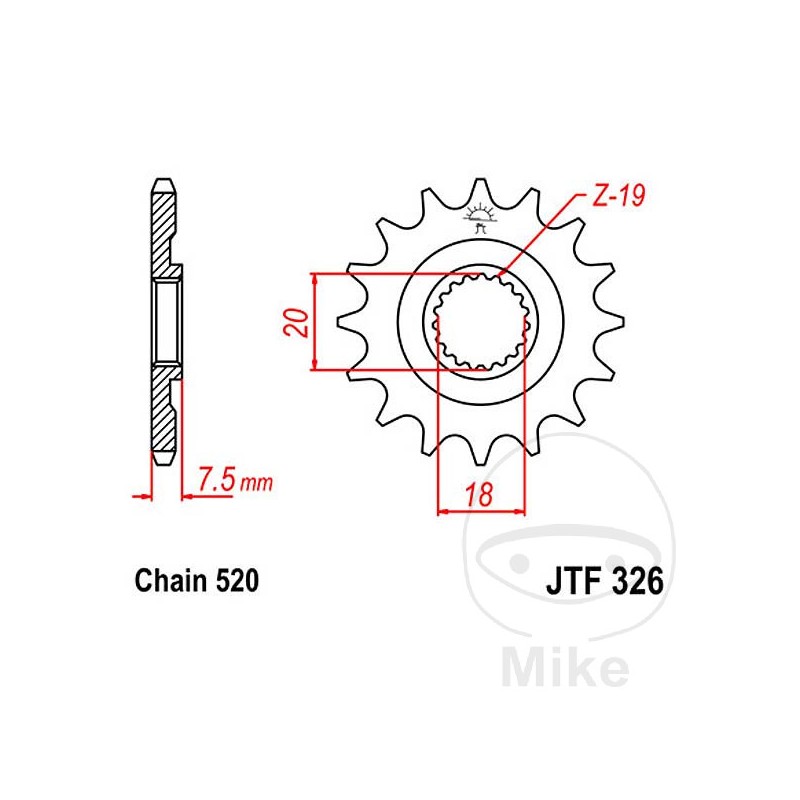

DIVISION: 520
CENTRAL FIXATION: FINE GEAR
INSIDE DIAMETER MIN.: 18 MM
MAX INSIDE DIAMETER: 20 MM
INNER GEAR (QUANTITY OF TEETH): 19
QUANTITY OF HOLES: WITHOUT HOLE
WIDTH: 7.5MM
VERSION: STANDARD
QTY TEETH: 12


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda CR 125 R 1cil. JE01 J Bastidores: JE01-5900001-JE01-5904696 1988
Honda CR 125 R 1cil. JE01 K Bastidores: JE01-5000001-- 1989
Honda CR 125 R 1cil. JE01 L Bastidores: JE01-5100531-JE01-5103518 1990
Honda CR 125 R 1cil. JE01 M Bastidores: JE01-5200661-JE01-5203405 1991
Honda CR 125 R 1cil. JE010 H Bastidores: JH2 JE010-HC800417-JH2 JE010-HC806957 1987
Honda CR 125 R 35 CV, 25,5 kw 1cil. JE01 N Bastidores: JE01-5300001-JE01-5303393 1992
Honda CR 125 R 40 CV, 30 kw 1cil. JE01 P Bastidores: JE01-5400001-JE01-5404242 1993
Honda CR 125 R 40 CV, 30 kw 1cil. JE01 R Bastidores: JE01-5500001-JE01-5503569 1994
Honda CR 125 R 40 CV, 30 kw 1cil. JE01 S Bastidores: JE01-5600001-JE01-5602273 1995
Honda CR 125 R 41 CV, 30 kw 1cil. JE01A 1 Bastidores: JH2 JE01A-1M500001-- 2001
Honda CR 125 R 41 CV, 30 kw 1cil. JE01A 2 Bastidores: JH2 JE01A-2M600001-JH2 JE01A-2M699999 2002
Honda CR 125 R 41 CV, 30 kw 1cil. JE01A 3 Bastidores: JH2 JE01A-3M700001-JH2 JE01A-3M799999 2003
Honda CR 125 R 41 CV, 30 kw 1cil. JE01A T Bastidores: JE01A-TM000006-- 1996
Honda CR 125 R 41 CV, 30 kw 1cil. JE01A V Bastidores: JE01A-VM100001-- 1997
Honda CR 125 R 41 CV, 30 kw 1cil. JE01A W Bastidores: JE01A-WM200001-- 1998
Honda CR 125 R 41 CV, 30 kw 1cil. JE01A X Bastidores: JE01A-XM300001-- 1999
Honda CR 125 R 41 CV, 30 kw 1cil. JE01A Y Bastidores: JH2 JE01A-YM400001-- 2000
