JT SPROCKETS Fine gear transmission pinion 16T 520 Ø22/24 726.31.30

JT Sprockets Manufacturing is today the largest and most modern production facility for sprockets and pinions worldwide,

equipped, among others, with the latest generation of CNC manufacturing machines.

JT Sprockets produces the entire range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages, going through more than ten individual quality controls to successfully leave the production line.

JT Sprockets manufactures the right way - turning, milling and drilling! This is the only way to achieve the highest quality with the tightest tolerances and the best tooth profile.

After subsequent heat treatment, each item is checked by hand, thus setting new quality standards in the motorcycle industry.

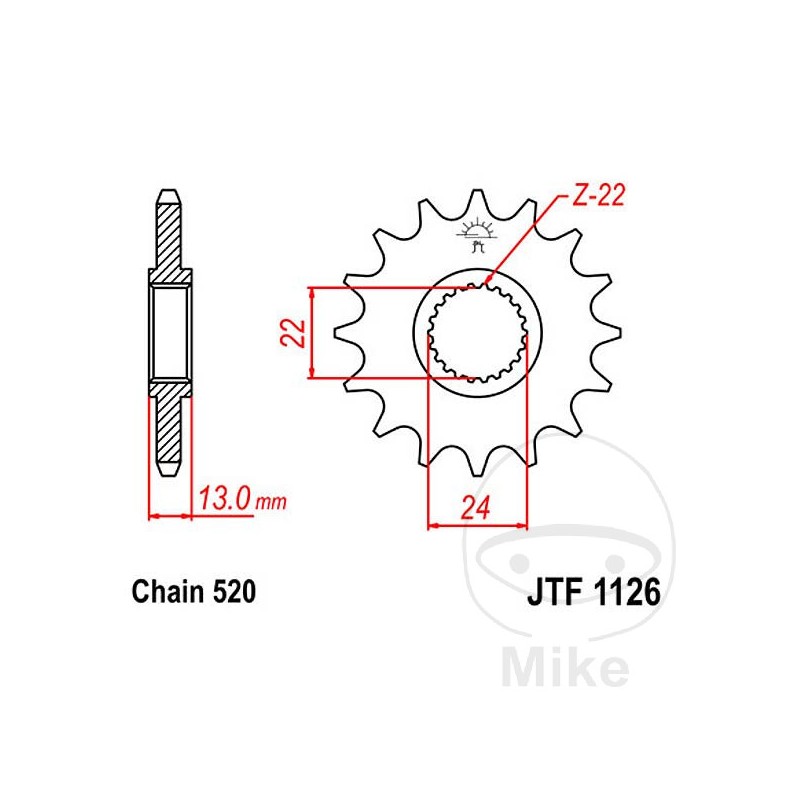

DIVISION: 520
CENTRAL FIXATION: FINE GEAR
INSIDE DIAMETER MIN.: 22 MM
MAX INTERNAL DIAMETER: 24 MM
INNER GEAR (QUANTITY OF TEETH): 22
QUANTITY OF HOLES: WITHOUT HOLE
VERSION: STANDARD
QTY TEETH: 16


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Aprilia Pegaso 650 N 48/27 CV, 35/20 kw 1cil. GA Bastidores: --- 1992
Aprilia Pegaso 650 P 48/27 CV, 35/20 kw 1cil. GA Bastidores: --- 1993
Aprilia Pegaso 650 R 48/34 CV, 35/25 kw 1cil. GA Bastidores: --- 1994
Aprilia Pegaso 650 S 48/34 CV, 35/25 kw 1cil. GA Bastidores: --- 1995
