JT SPROCKETS Fine gear transmission pinion 14T 532 Ø21.6/25 726.28.76

JT Sprockets Manufacturing is today the largest and most modern sprocket and pinion manufacturing facility in the world,

equipped with the latest generation of CNC manufacturing machines.

JT Sprockets produces the entire range of sprockets and sprockets for the original equipment and aftermarket.

Each sprocket and sprocket goes through 25 production stages and undergoes more than ten individual quality checks to successfully leave production.

JT Sprockets manufactures the right way - by turning, milling and drilling! This is the only way to achieve the highest quality with the smallest tolerances and the best tooth profile.

After post heat treatment, each item is checked by hand – this is how JT Sprockets sets new quality standards in the motorcycle industry.

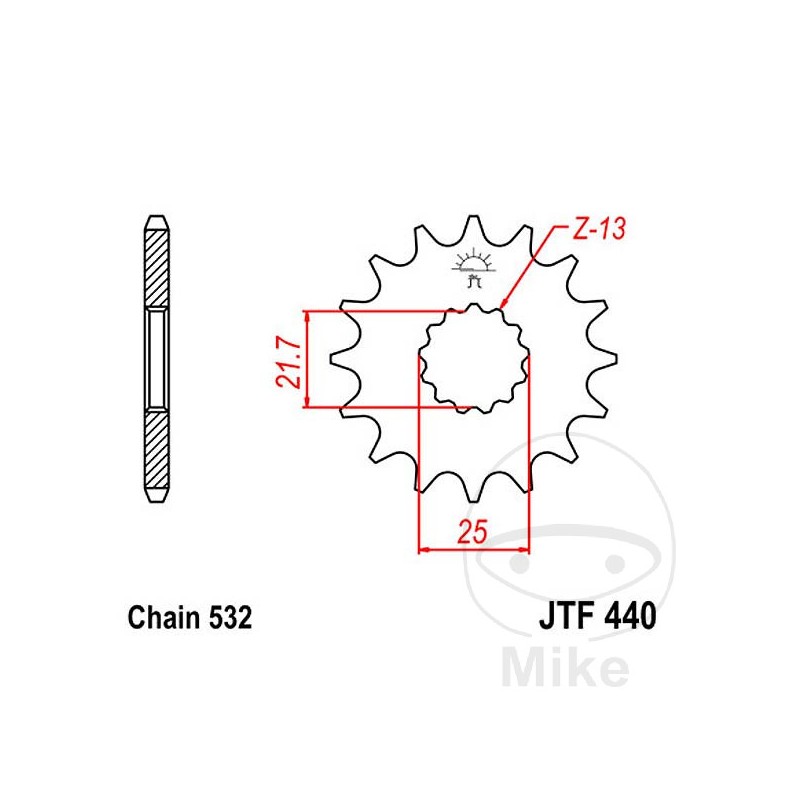

DIVISION: 532
CENTRAL FIXATION: FINE GEAR
INSIDE DIAMETER MIN.: 21.7 MM
MAX INTERNAL DIAMETER: 25 MM
INNER GEAR (QUANTITY OF TEETH): 13
QUANTITY OF HOLES: WITHOUT HOLE
VERSION: STANDARD
QTY TEETH: 14


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki GSX 1100 F 100 CV, 74 kw 4cil. GV72A J Bastidores: GV72A-100001-GV72A-101092 1988
Suzuki GSX 1100 F 100 CV, 74 kw 4cil. GV72B J Bastidores: GV72B-100001-GV72B-102204 1988
Suzuki GSX 1100 F 100 CV, 74 kw 4cil. GV72C J Bastidores: GV72C-100001-GV72C-102647 1988
Suzuki GSX 1100 F 100 CV, 74 kw 4cil. GV72C K Bastidores: GV72C-102648-GV72C-104408 1989
Suzuki GSX 1100 F 100 CV, 74 kw 4cil. GV72C L Bastidores: GV72C-104409-GV72C-105273 1990
Suzuki GSX 1100 F 100 CV, 74 kw 4cil. GV72C M Bastidores: GV72C-105273-GV72C-106115 1991
Suzuki GSX 1100 F 100 CV, 74 kw 4cil. GV72C N Bastidores: GV72C-106116-GV72C-108890 1992-1993
Suzuki GSX 1100 F 98 CV, 72 kw 4cil. GV72C R Bastidores: GV72C-108891-- 1994-1996
Suzuki GSX-R 1100 100 CV, 74 kw 4cil. GU74CD G Bastidores: GU74CD-100001-GU74CD-103178 1986
Suzuki GSX-R 1100 100 CV, 74 kw 4cil. GU74CD H Bastidores: GU74CD-103179-GU74CD-106097 1987
Suzuki GSX-R 1100 100 CV, 74 kw 4cil. GU74CD J Bastidores: GU74CD-106098-- 1988
Suzuki GSX-R 1100 100 CV, 74 kw 4cil. GV73C K Bastidores: GV73C-100001-GV73C-102566 1989
Suzuki GSX-R 1100 100 CV, 74 kw 4cil. GV73C L Bastidores: GV73C-102567-GV73C-104826 1990
Suzuki GSX-R 1100 100 CV, 74 kw 4cil. GV73C M Bastidores: GV73C-104827-GV73C-107721 1991
Suzuki GSX-R 1100 100 CV, 74 kw 4cil. GV73C N Bastidores: GV73C-107722-- 1992
Suzuki GSX-R 1100 W 155/98 CV,114/72kw 4cil. GU75C P Bastidores: GU75C-100001-GU75C-103514 1993
Suzuki GSX-R 1100 W 155/98 CV,114/72kw 4cil. GU75C R Bastidores: GU75C-103515-GU75C-104538 1994
Suzuki GSX-R 1100 W 155/98 CV,114/72kw 4cil. GU75C S Bastidores: GU75C-104539-GU75C-105331 1995
Suzuki GSX-R 1100 W 155/98 CV,114/72kw 4cil. GU75C T Bastidores: GU75C-105332-- 1996-1997
Suzuki RF 900 R 139/98 CV,102/72 kw 4cil. GT73B R Bastidores: GT73B-100001-GT73B-101314 1994
Suzuki RF 900 R 139/98 CV,102/72 kw 4cil. GT73B S Bastidores: GT73B-101315-GT73B-102476 1995
Suzuki RF 900 R 139/98 CV,102/72 kw 4cil. GT73B T Bastidores: GT73B-102477-GT73B-103181 1996
Suzuki RF 900 R 139/98 CV,102/72 kw 4cil. GT73B V Bastidores: GT73B-103182-- 1997
