JT SPROCKETS Fine gear transmission pinion 15T 630 Ø24/28.5 726.26.29

The JT Sprockets production is today the largest and most modern production facility for sprockets and sprockets in the world.

equipped with the latest generation of CNC manufacturing machines.

JT Sprockets produces the full range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages and undergoes more than ten individual quality tests to successfully leave production.

JT Sprockets manufactures the right way: turning, milling, and drilling. This is the only way to achieve the highest quality with the lowest tolerances and the best tooth profile.

After subsequent heat treatment, each element is checked by hand; this is how JT Sprockets sets new standards of quality in the motorcycle industry.

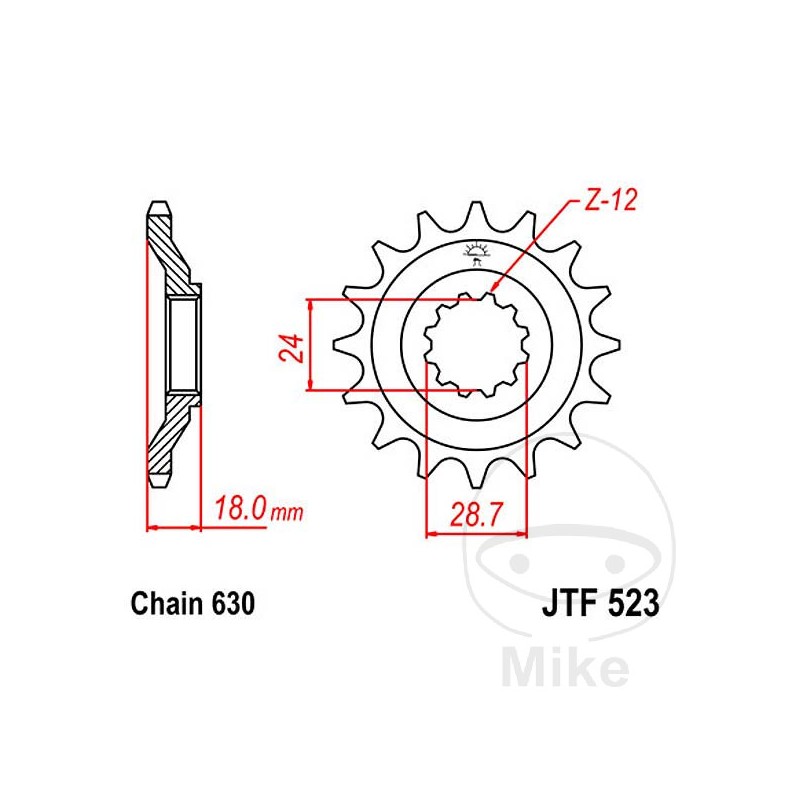

DIVISION: 630
CENTRAL FIXATION: FINE GEAR
INSIDE DIAMETER MIN.: 24 MM
MAX INTERNAL DIAMETER: 28.7 MM
INNER GEAR (QUANTITY OF TEETH): 12
QUANTITY OF HOLES: WITHOUT HOLE
WIDTH: 18MM
VERSION: STANDARD
QTY TEETH: 15


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Kawasaki GPZ 1100 A Uni Trak 120/100/98 CV, 88/74/72 kw 4cil. ZXT10A 1 Bastidores: ZXT10A henceforth00001-ZXT10A henceforth10800 1983
Kawasaki GPZ 1100 A Uni Trak 120/100/98 CV, 88/74/72 kw 4cil. ZXT10A 2 Bastidores: ZXT10A henceforth10801-ZXT10A henceforth15900 1984
Kawasaki GPZ 1100 A Uni Trak 120/100/98 CV, 88/74/72 kw 4cil. ZXT10A 3 Bastidores: ZXT10A henceforth15901-- 1985
