JT SPROCKETS Fine gear transmission pinion 15T 630 Ø21.6/25 726.23.63

JT Sprockets Manufacturing is today the largest and most modern production facility for sprockets and pinions worldwide,

equipped, among others, with the latest generation of CNC manufacturing machines.

JT Sprockets produces the entire range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages, going through more than ten individual quality controls to successfully leave the production line.

JT Sprockets manufactures the right way - turning, milling and drilling! This is the only way to achieve the highest quality with the tightest tolerances and the best tooth profile.

After post heat treatment, each item is checked by hand, thus setting new JT Sprockets quality standards in the motorcycle industry.

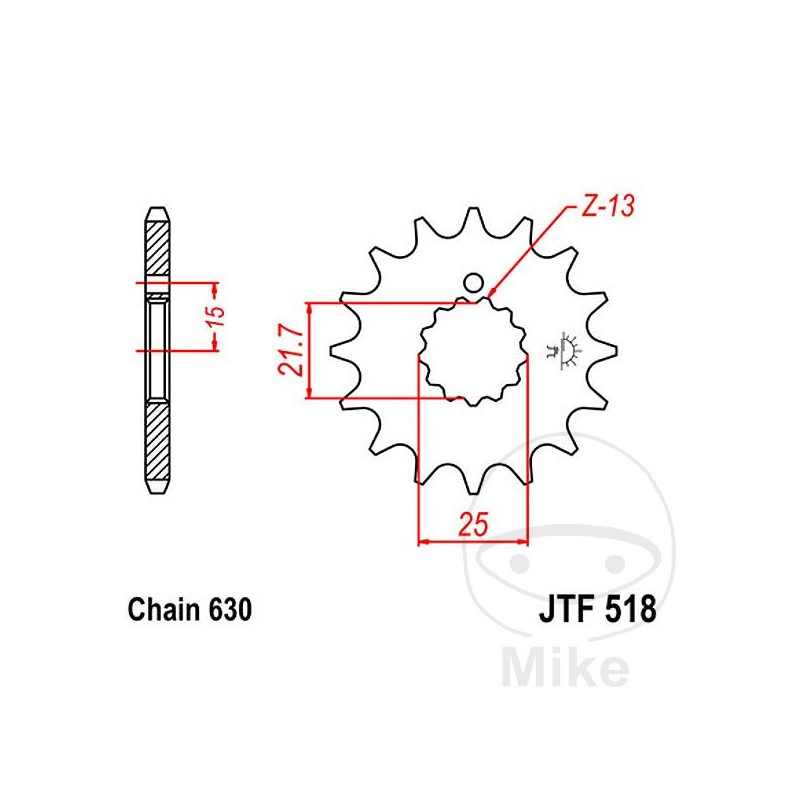

DIVISION: 630
CENTRAL FIXATION: FINE GEAR
INSIDE DIAMETER MIN.: 21.7 MM
MAX INTERNAL DIAMETER: 25 MM
INNER GEAR (QUANTITY OF TEETH): 13
HOLES QUANTITY: 1
HOLES DISTANCE: 15 MM
VERSION: STANDARD
QTY TEETH: 15


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Kawasaki Z 650 F 67/50 CV, 49/37 kw 4cil. KZ650F 2 Bastidores: KZ650F henceforth07201-KZ650F henceforth12000 1981
Kawasaki Z 650 F 67/50 CV, 49/37 kw 4cil. KZ650F 3 Bastidores: KZ650F henceforth12001-KZ650F henceforth12013 1982
Kawasaki Z 650 F 67/50 CV, 49/37 kw 4cil. KZ650F 3 Bastidores: KZ650F henceforth12401-- 1982
Kawasaki Z 650 F 67/50 CV, 49/37 kw 4cil. KZ650F 4 Bastidores: KZ650F henceforth14301-- 1983
Kawasaki Z 750 E 74 CV, 54 kw 4cil. KZ750E 1 Bastidores: KZ750E henceforth00001-- 1980
Kawasaki Z 750 GP 80 CV, 59 kw 4cil. KZ750R R1 Bastidores: KZ750R henceforth00001-- 1982
Kawasaki Z 750 H Ltd 4 cilindros 74 CV, 54 kw 4cil. KZ750H 1 Bastidores: KZ750H henceforth00001-KZ750H henceforth13500 1980
Kawasaki Z 750 H Ltd 4 cilindros 74 CV, 54 kw 4cil. KZ750H 2 Bastidores: KZ750H henceforth13501-KZ750H henceforth31600 1981
Kawasaki Z 750 H Ltd 4 cilindros 74 CV, 54 kw 4cil. KZ750H 3 Bastidores: KZ750H henceforth31601-- 1982
Kawasaki Z 750 L 78 CV, 57 kw 4cil. KZ750E 1 Bastidores: KZ750E henceforth12001-KZ750E henceforth32400 1981
Kawasaki Z 750 L 78 CV, 57 kw 4cil. KZ750E 2 Bastidores: KZ750E henceforth32401-- 1982
Kawasaki Z 750 L 80 CV, 59 kw 4cil. KZ750R 3 Bastidores: KZ750R henceforth14501-KZ750R henceforth17200 1983
Kawasaki Z 750 L 80 CV, 59 kw 4cil. KZ750R 4 Bastidores: KZ750R henceforth17201-- 1984
Kawasaki ZX 750 E Turbo 112/100 CV, 82/74 kw 4cil. ZX750E 1 Bastidores: ZX750E henceforth00001-ZX750E henceforth05500 1984
Kawasaki ZX 750 E Turbo 112/100 CV, 82/74 kw 4cil. ZX750E 2 Bastidores: ZX750E henceforth05501-- 1985
Kawasaki ZX 750 E Turbo 112/100 CV, 82/74 kw 4cil. ZX750EE 1 Bastidores: ZX750EE henceforth00001-ZX750EE henceforth06500 1984
Kawasaki ZX 750 E Turbo 112/100 CV, 82/74 kw 4cil. ZX750EE 2 Bastidores: ZX750EE henceforth06501-- 1985
Suzuki GS 750 D llanta de radios 63 CV, 46 kw 4cil. GS750D B Bastidores: GS750D-10001-GS750D-20096 1977
Suzuki GS 750 D llanta de radios 63 CV, 46 kw 4cil. GS750D C Bastidores: GS750D-20097-GS750D-22016 1978
Suzuki GS 750 D llanta de radios 63 CV, 46 kw 4cil. GS750D N Bastidores: GS750D-22017-- 1979
Suzuki GS 750 E llanta de fundición 63 CV, 46 kw 4cil. GS750E C Bastidores: GS750E-10001-GS750E-34214 1978
Suzuki GS 750 E llanta de fundición 63 CV, 46 kw 4cil. GS750E N Bastidores: GS750E-34215-- 1979
Suzuki GS 750 L 63 CV, 46 kw 4cil. GS750E N Bastidores: GS750E-700001-- 1979
Suzuki GS 750 llanta de radios 63 CV, 46 kw 4cil. GS750 B Bastidores: GS750-10001-GS750-32603 1977
Suzuki GS 750 llanta de radios 63 CV, 46 kw 4cil. GS750 C Bastidores: GS750-32604-GS750-45133 1978
Suzuki GS 750 llanta de radios 63 CV, 46 kw 4cil. GS750 N Bastidores: GS750-45134-- 1979
