ESJOT Fine gear transmission pinion 13T 428 Ø15/18 726.22.64

ESJOT gear designed specifically for high OEM requirements and among the world's best sprockets on the market.

A special steel, high-quality hardening and optimum gearing guarantee extremely high strength and durability - ideal for high-wear conditions in all areas

- Steel 16 MnCR 5

- Worked on CNC lathes

- Hardening of 700 HV 40 for a depth of 0.4 mm

- Modern broaching guarantees an exact fit size on the motor shaft

- Radial and axial runout tolerance of less than 0.1mm

- 100% Made in Germany

- OEM quality

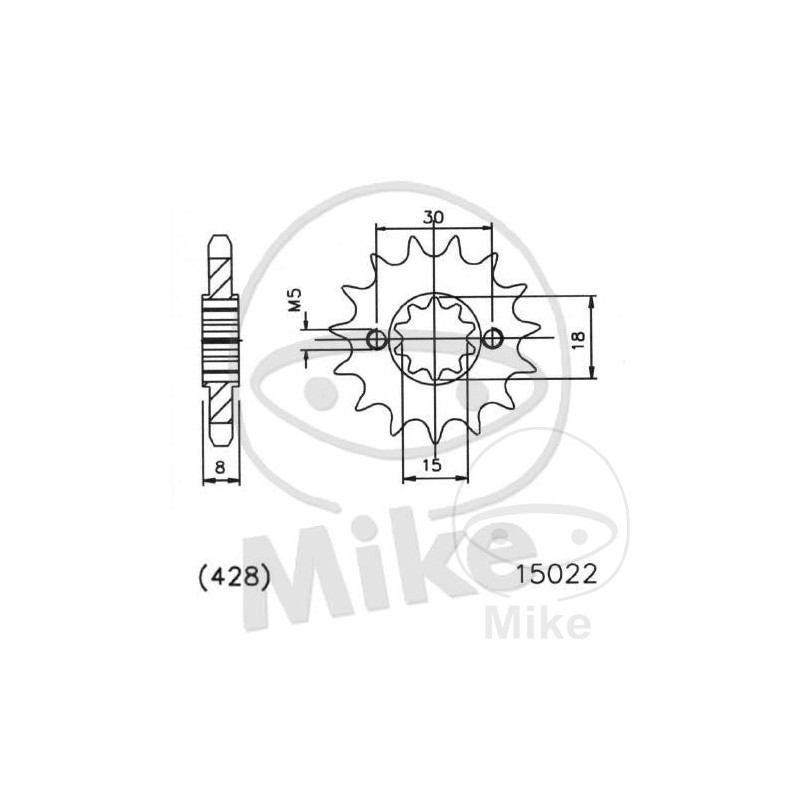

DIVISION: 428
CENTRAL FIXATION: FINE GEAR
INSIDE DIAMETER MIN.: 15 MM
MAX INTERNAL DIAMETER: 18 MM
INNER GEAR (QUANTITY OF TEETH): 15
HOLES QUANTITY: 2
HOLES DISTANCE: 30 MM
WIDTH: 8MM
VERSION: STANDARD
QTY TEETH: 13


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Hercules ZX 50 5 CV, 3,7 kw 1cil. 693 001 Bastidores: --- 1995-1996
Sachs ZX 50 5 CV, 3,7 kw 1cil. 693 693 Bastidores: --- 1996-2000
