JT SPROCKETS Fine gear transmission pinion 15T 630 Ø21.6/25 726.22.31

JT Sprockets Manufacturing is today the largest and most modern production facility for sprockets and pinions worldwide,

equipped, among others, with the latest generation of CNC manufacturing machines.

JT Sprockets produces the entire range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages, going through more than ten individual quality controls to successfully leave the production line.

JT Sprockets manufactures the right way - turning, milling and drilling! This is the only way to achieve the highest quality with the tightest tolerances and the best tooth profile.

After post heat treatment, each item is checked by hand, thus setting new JT Sprockets quality standards in the motorcycle industry.

with flange

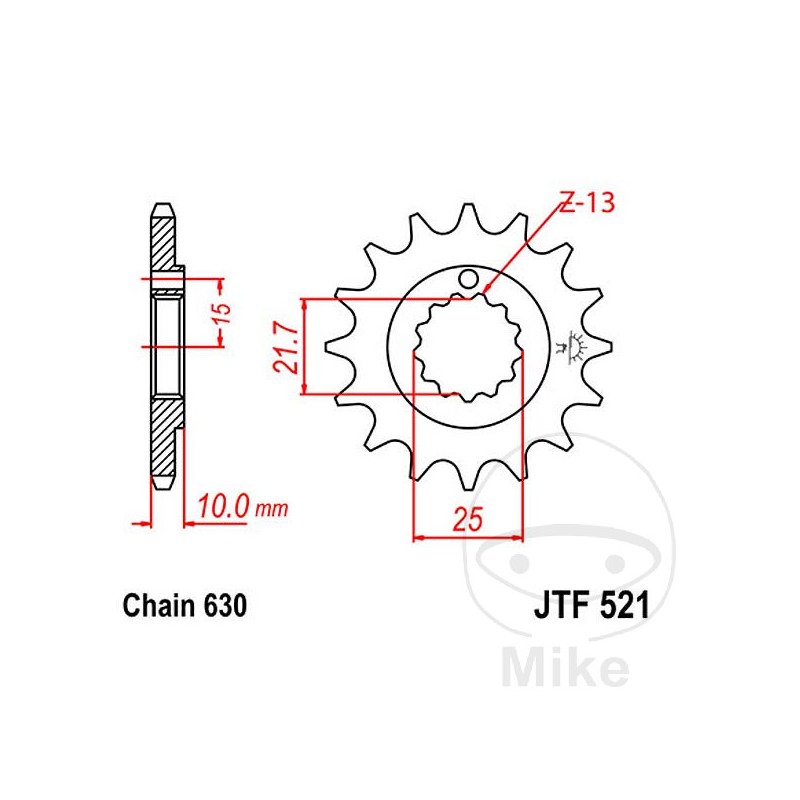

DIVISION: 630
CENTRAL FIXATION: FINE GEAR
INSIDE DIAMETER MIN.: 21.7 MM
MAX INTERNAL DIAMETER: 25 MM
INNER GEAR (QUANTITY OF TEETH): 13
HOLES QUANTITY: 1
HOLES DISTANCE: 15 MM
WIDTH: 10MM
VERSION: STANDARD
QTY TEETH: 15


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Kawasaki Z 1000 A 85 CV, 63 kw 4cil. KZT00A 1 Bastidores: KZT00A henceforth00001-KZT00A henceforth27500 1977
Kawasaki Z 1000 A 85 CV, 63 kw 4cil. KZT00A 2 Bastidores: KZT00A henceforth27501-- 1978-1979
Kawasaki Z 1000 H Injection 96 CV 71 kw 4cil. KZT00H 1 Bastidores: KZT00H henceforth00001-- 1980
Kawasaki Z 1000 MK2 94 CV, 69 kw 4cil. KZT00A Bastidores: KZT00A henceforth38416-KZT00A henceforth43000 1979
Kawasaki Z 1000 MK2 94 CV, 69 kw 4cil. KZT00A Bastidores: KZT00A henceforth43001-KZT00A henceforth43006 1980
Kawasaki Z 1000 MK2 94 CV, 69 kw 4cil. KZT00A Bastidores: KZT00A henceforth43027-- 1980
Kawasaki Z 900 A 81 CV, 60 kw 4cil. Z1F 4 Bastidores: Z1F henceforth89701-- 1976
Kawasaki Z1 900 79 CV, 59 kw 4cil. Z1F Bastidores: Z1F henceforth00001-Z1F henceforth20000 1973
Kawasaki Z1A 900 79 CV, 58 kw 4cil. Z1F Bastidores: Z1F-20001-Z1F-47499 1974
Kawasaki Z1B 900 79 CV, 58 kw 4cil. Z1F Bastidores: Z1F-47500-Z1F henceforth85700 1975
Kawasaki Z1R 1000 D 90 CV, 66 kw 4cil. KZT00D 1 Bastidores: KZT00D henceforth00001-- 1978-1980
