JT Sprockets Manufacturing is today the largest and most modern production facility for sprockets and pinions worldwide,

equipped, among others, with the latest generation of CNC manufacturing machines.

JT Sprockets produces the entire range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages, going through more than ten individual quality controls to successfully leave the production line.

JT Sprockets manufactures the right way - turning, milling and drilling! This is the only way to achieve the highest quality with the tightest tolerances and the best tooth profile.

After post heat treatment, each item is checked by hand, thus setting new JT Sprockets quality standards in the motorcycle industry.

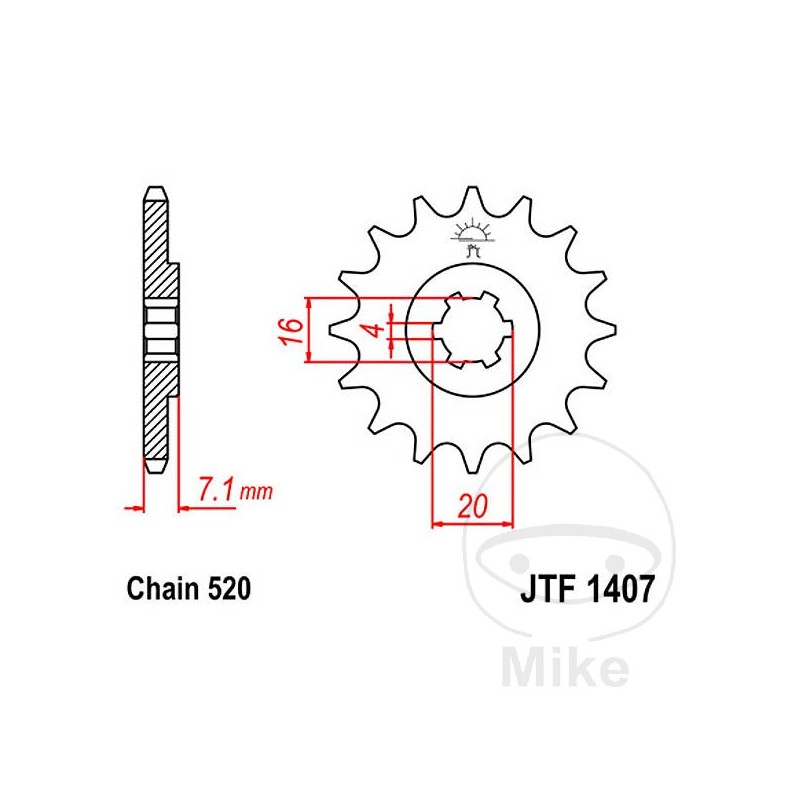

DIVISION: 520
CENTRAL FIXING: COARSE GEAR
INSIDE DIAMETER MIN.: 16 MM
MAX INSIDE DIAMETER: 20 MM
INNER GEAR (QUANTITY OF TEETH): 6
INNER GEAR (DISTANCE): 4 MM
QUANTITY OF HOLES: WITHOUT HOLE
WIDTH: 7.1MM
VERSION: STANDARD
QTY TEETH: 10


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Kawasaki KFX 80 A KSF 1cil. LM4AC11C31 1 Bastidores: LM4AC11C31-100001-LM4AC11C31-999999 2003
Kawasaki KFX 80 A KSF 1cil. LM4AC11C41 2 Bastidores: LM4AC11C41-100001-LM4AC11C41-999999 2004
Kawasaki KFX 80 A KSF 1cil. RK7AC11C51 3 Bastidores: RK7AC11C51-100001-RK7AC11C51-999999 2005
Kawasaki KFX 80 A KSF 1cil. RK7AC11C61 6F Bastidores: RK7AC11C61-100001-RK7AC11C61-999999 2006
Suzuki LT 80 7,3 CV, 5,4 kw 1cil. AC113 K1 Bastidores: AC113-11100001-- 2001
Suzuki LT 80 7,3 CV, 5,4 kw 1cil. AC113 K2 Bastidores: AC113-21100001-- 2002
Suzuki LT 80 7,3 CV, 5,4 kw 1cil. AC113 K3 Bastidores: AC113-31100001-- 2003
Suzuki LT 80 7,3 CV, 5,4 kw 1cil. AC11A S Bastidores: AC11A-S1100001-- 1995
Suzuki LT 80 7,3 CV, 5,4 kw 1cil. AC11A T Bastidores: AC11A-T1100001-- 1996
Suzuki LT 80 7,3 CV, 5,4 kw 1cil. AC11A V Bastidores: AC11A-V1100001-- 1997
Suzuki LT 80 7,3 CV, 5,4 kw 1cil. AC11A W Bastidores: AC11A-W1100001-- 1998
Suzuki LT 80 7,3 CV, 5,4 kw 1cil. AC11A X Bastidores: AC11A-X1100001-- 1999
Suzuki LT 80 7,3 CV, 5,4 kw 1cil. AC11A Y Bastidores: AC11A-Y1100001-- 2000
Suzuki LT 80 Quadsport 6,7 CV, 4,9 kw 1cil. AC113 K4 Bastidores: AC113-41100001-- 2004
Suzuki LT 80 Quadsport 6,7 CV, 4,9 kw 1cil. AC113 K5 Bastidores: AC113-51100001-- 2005
Suzuki LT 80 Quadsport 6,7 CV, 4,9 kw 1cil. AC113 K6 Bastidores: AC113-61100001-- 2006
