JT SPROCKETS Fine gear transmission pinion 14T 520 Ø21.7/25 726.11.22

JT Sprockets Manufacturing is today the largest and most modern production facility for sprockets and pinions worldwide,

equipped, among others, with the latest generation of CNC manufacturing machines.

JT Sprockets produces the entire range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages, going through more than ten individual quality controls to successfully leave the production line.

JT Sprockets manufactures the right way - turning, milling and drilling! This is the only way to achieve the highest quality with the tightest tolerances and the best tooth profile.

After post heat treatment, each item is checked by hand, thus setting new JT Sprockets quality standards in the motorcycle industry.

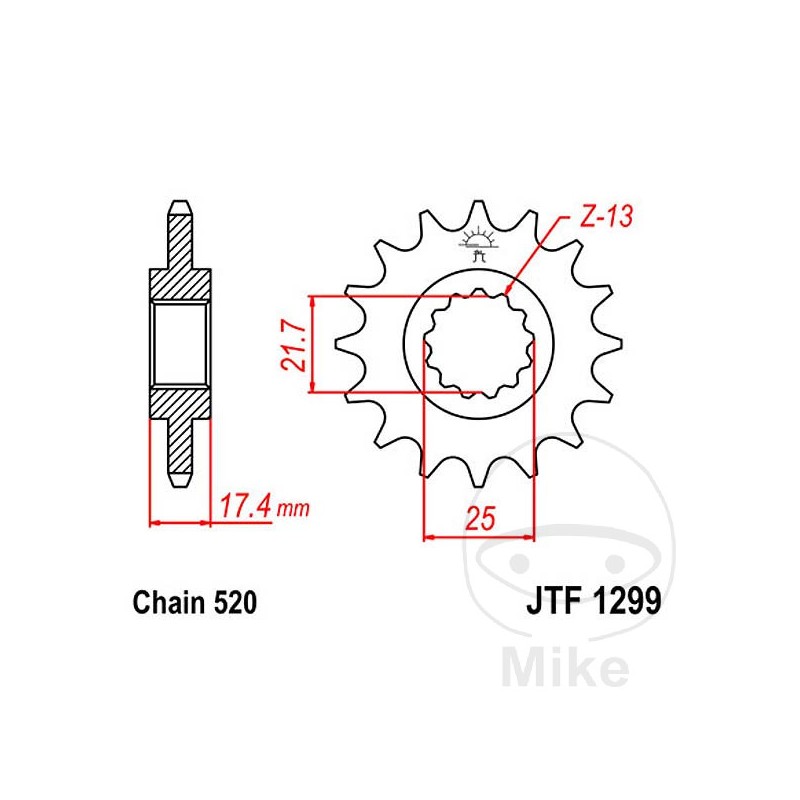

DIVISION: 520
CENTRAL FIXATION: FINE GEAR
INSIDE DIAMETER MIN.: 21.7 MM
MAX INTERNAL DIAMETER: 25 MM
INNER GEAR (QUANTITY OF TEETH): 13
QUANTITY OF HOLES: WITHOUT HOLE
VERSION: STANDARD
QTY TEETH: 14


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda CB 250 F Hornet 40 CV, 29 kw 4cil. MC31 1 Bastidores: MC31-1250001-MC31-1299999 2001
Honda CB 250 F Hornet 40 CV, 29 kw 4cil. MC31 T Bastidores: MC31-1000001-MC31-1008816 1996
Honda CB 250 F Hornet 40 CV, 29 kw 4cil. MC31 V Bastidores: MC31-1100001-MC31-1149999 1997-1998
Honda CB 250 F Hornet 40 CV, 29 kw 4cil. MC31 X Bastidores: MC31-1150001-MC31-1199999 1999
Honda CB 250 F Hornet 40 CV, 29 kw 4cil. MC31 Y Bastidores: MC31-1200001-MC31-1249999 2000
Honda VT 250 C Magna 27 CV, 19 kw 2cil. MC29 R Bastidores: MC29-1000001-MC29-1029392 1994-1995
Honda VT 250 C Magna 27 CV, 19 kw 2cil. MC29 T Bastidores: MC29-1100001-MC29-1199999 1996
Honda VT 250 C Magna 27 CV, 19 kw 2cil. MC29 V Bastidores: MC29-1200001-MC29-1499999 1997
Honda VTR 250 29,9 CV, 22 kw 2cil. MC33A 9 Bastidores: JH2 MC33A-9K000001-JH2 MC33A-9K99999 2009-2011
