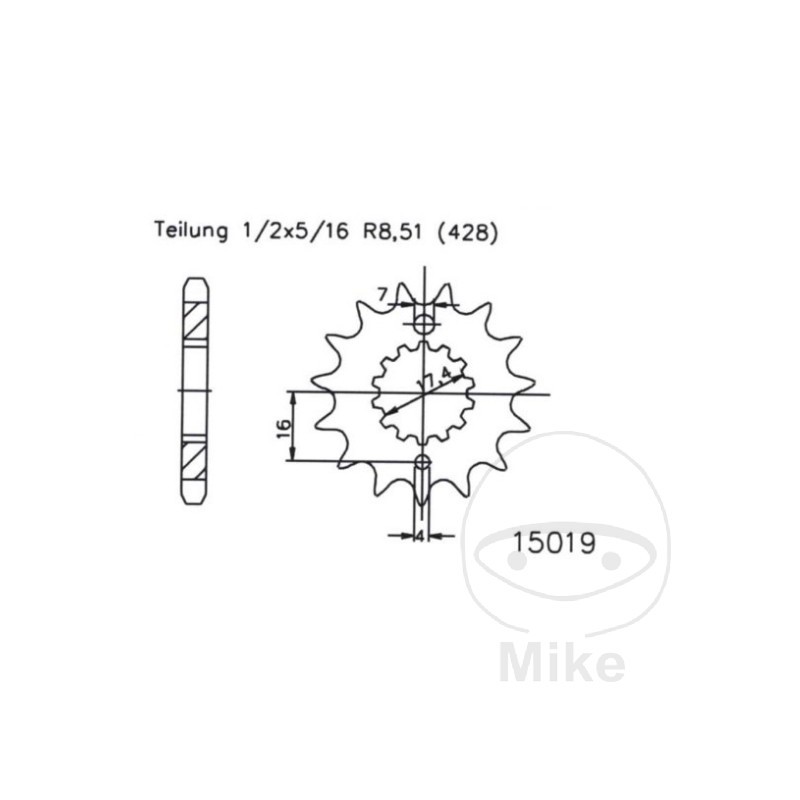

ESJOT Fine gear transmission pinion 16T 428 Ø17.4/20 726.10.27

ESJOT gear designed specifically for high OEM requirements and among the world's best sprockets on the market.

A special steel, high-quality hardening and optimum gearing guarantee extremely high strength and durability - ideal for high-wear conditions in all areas

- Steel 16 MnCR 5

- Worked on CNC lathes

- Hardening of 700 HV 40 for a depth of 0.4 mm

- Modern broaching guarantees an exact fit size on the motor shaft

- Radial and axial runout tolerance of less than 0.1mm

- 100% Made in Germany

- OEM quality
DIVISION: 428
CENTRAL FIXATION: FINE GEAR
INSIDE DIAMETER MIN.: 17.4 MM
MAX INSIDE DIAMETER: 20 MM
INNER GEAR (QUANTITY OF TEETH): 14
HOLES QUANTITY: 1
VERSION: STANDARD
QTY TEETH: 16


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
MZ/MUZ RT 125 15 CV, 11 kw 1cil. - Bastidores: --- 2000-2008
MZ/MUZ RT 125 Classic 15 CV, 11 kw 1cil. - Bastidores: --- 2001-2008
MZ/MUZ SM 125 15 CV, 11 kw 1cil. - Bastidores: --- 2001-2008
MZ/MUZ SM 125 Cup Replica 15 CV, 11 kw 1cil. - Bastidores: --- 2006-2008
MZ/MUZ SM 125 Gangsta 15 CV, 11 kw 1cil. - Bastidores: --- 2006-2007
MZ/MUZ SX 125 15 CV, 11 kw 1cil. - Bastidores: --- 2001-2008
Yamaha SR 250 1cil. - 21L1 Bastidores: --- 1991-1993
Yamaha SR 250 1cil. - 3TH3 Bastidores: --- 1992
Yamaha SR 250 20 CV, 17,7 kw 1cil. 3Y9 4GR1 Bastidores: 3Y9 henceforth30101-3Y8 henceforth31000 1992
Yamaha SR 250 SP 1cil. - 3TH1 Bastidores: --- 1989
Yamaha SR 250 SP 1cil. - 3TH2 Bastidores: --- 1990
Yamaha SR 250 SP 1cil. - 3TH5 Bastidores: --- 1996
Yamaha SR 250 SP 1cil. 1KJ 1KJ Bastidores: --- 1985
