JT SPROCKETS Fine gear transmission pinion 11T 520 Ø19.5/22 726.07.22

The JT Sprockets production is today the largest and most modern production facility for sprockets and sprockets in the world.

equipped with the latest generation of CNC production machines.

JT Sprockets produces the full range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages and undergoes more than ten individual quality tests to successfully leave production.

JT Sprockets manufactures the right way: turning, milling and drilling. This is the only way to achieve the highest quality with the lowest tolerances and the best tooth profile.

After subsequent heat treatment, each item is checked by hand; this is how JT Sprockets sets new standards of quality in the motorcycle industry.

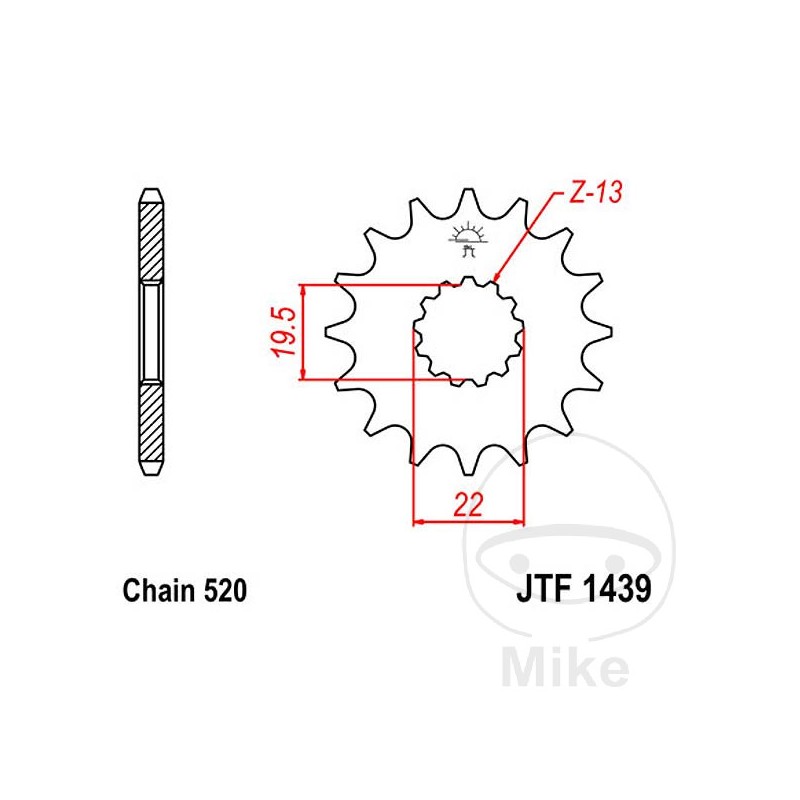

DIVISION: 520
CENTRAL FIXATION: FINE GEAR
INSIDE DIAMETER MIN.: 19.5 MM
MAX INTERNAL DIAMETER: 22 MM
INNER GEAR (QUANTITY OF TEETH): 13
QUANTITY OF HOLES: WITHOUT HOLE
VERSION: STANDARD
QTY TEETH: 11


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki LT-F 160 13,6 CV, 10 kw 1cil. AG43A K1 Bastidores: AG43A-11100001-- 2001-2002
Suzuki LT-F 160 13,6 CV, 10 kw 1cil. AG43A K3 Bastidores: AG43A-31100001-- 2003
Suzuki LT-F 160 13,6 CV, 10 kw 1cil. AG43A K4 Bastidores: AG43A-41100001-- 2004
Suzuki LT-F 160 13,6 CV, 10 kw 1cil. AG43A V Bastidores: AG43A-V1100001-- 1997
Suzuki LT-F 160 13,6 CV, 10 kw 1cil. AG43A W Bastidores: AG43A-W1100001-- 1998
Suzuki LT-F 160 13,6 CV, 10 kw 1cil. AG43A X Bastidores: AG43A-X1100001-- 1999
Suzuki LT-F 160 13,6 CV, 10 kw 1cil. AG43A Y Bastidores: AG43A-Y1100001-- 2000
