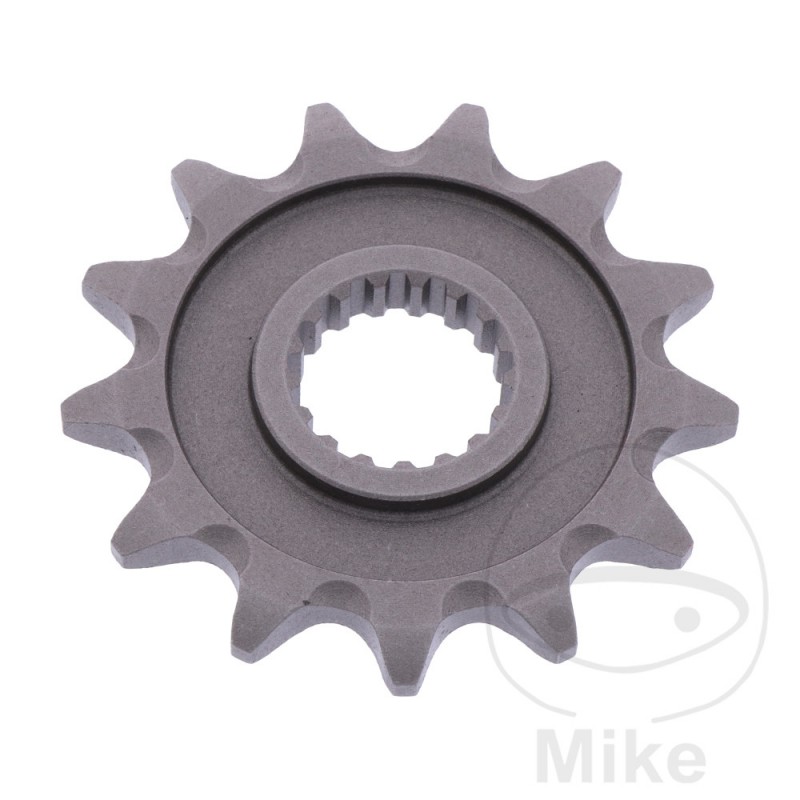

ESJOT transmission sprocket 13T 520 726.05.31

The JT Sprockets production is today the largest and most modern production facility for sprockets and sprockets in the world.

equipped with the latest generation of CNC manufacturing machines.

JT Sprockets produces the full range of sprockets and sprockets for the original equipment and aftermarket.



Each pinion and sprocket goes through 25 production stages and undergoes more than ten individual quality tests to successfully leave production.



JT Sprockets manufactures the right way: turning, milling, and drilling. This is the only way to achieve the highest quality with the lowest tolerances and the best tooth profile.

After subsequent heat treatment, each item is checked by hand; this is how JT Sprockets sets new standards of quality in the motorcycle industry.
DIVISION: 520
CENTRAL FIXATION: FINE GEAR
INSIDE DIAMETER MIN.: 21.2 MM
MAX INSIDE DIAMETER: 23.8 MM
INNER GEAR (QUANTITY OF TEETH): 17
QUANTITY OF HOLES: WITHOUT HOLE
WIDTH: 7.8MM
VERSION: STANDARD
QTY TEETH: 13


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda CRF 250 R 1cil. ME12A J Bastidores: JH2 ME12A-JK000001-JH2 ME12A-JK099999 2018
Honda CRF 250 R 1cil. ME12A K Bastidores: JH2 ME12A-KK100001-JH2 ME12A-KK199999 2019
Honda CRF 250 R 1cil. ME12A L Bastidores: JH2 ME12A-LK200001-- 2020-2021
Honda CRF 250 R Red Moto 1cil. - Bastidores: --- 2020-2021
Honda CRF 250 RX 1cil. ME12A K Bastidores: JH2 ME12A-KK100001-JH2 ME12A-KK199999 2019
Honda CRF 250 RX 1cil. ME12A L Bastidores: JH2 ME12A-LK200001-- 2020-2021
Honda CRF 250 RX Red Moto 1cil. - Bastidores: --- 2020-2021
Honda CRF 250 RX Red Moto Special 1cil. - Bastidores: --- 2021
