JT SPROCKETS Fine gear transmission pinion 17T 532 Ø26/30 726.05.24

The JT Sprockets production is today the largest and most modern production facility for sprockets and sprockets in the world.

equipped with the latest generation of CNC manufacturing machines.

JT Sprockets produces the full range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages and undergoes more than ten individual quality tests to successfully leave production.

JT Sprockets manufactures the right way: turning, milling, and drilling. This is the only way to achieve the highest quality with the lowest tolerances and the best tooth profile.

After subsequent heat treatment, each element is checked by hand; this is how JT Sprockets sets new standards of quality in the motorcycle industry.

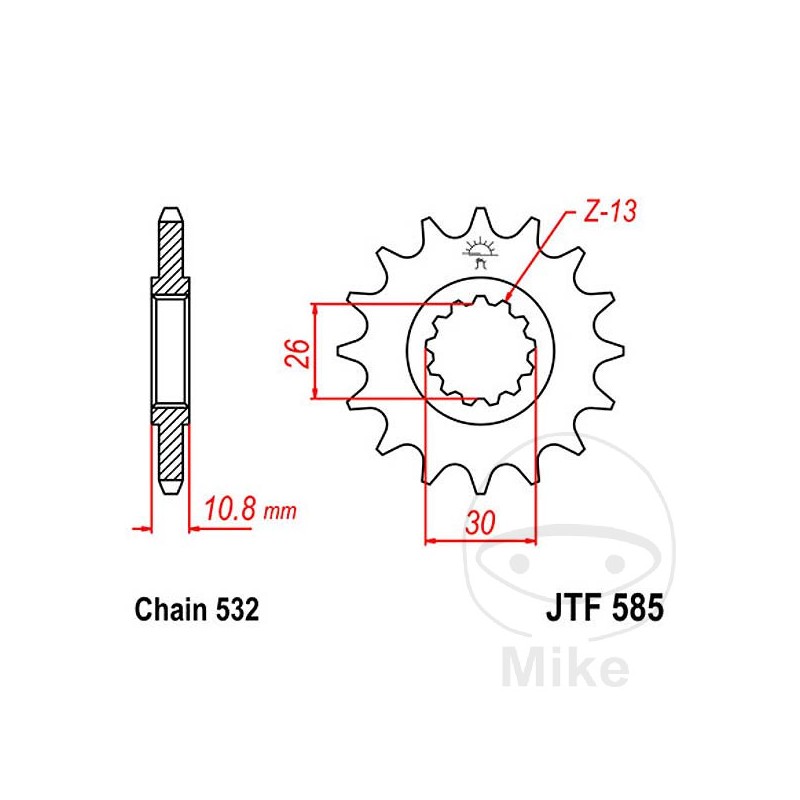

DIVISION: 532
CENTRAL FIXATION: FINE GEAR
INSIDE DIAMETER MIN.: 26 MM
MAX INSIDE DIAMETER: 30 MM
INNER GEAR (QUANTITY OF TEETH): 13
QUANTITY OF HOLES: WITHOUT HOLE
WIDTH: 10.8MM
VERSION: STANDARD
QTY TEETH: 17


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha XJR 1200 98 CV, 72 kw 4cil. 4PU 4PU1 Bastidores: 4PU henceforth00101-4PU henceforth07099 1995
Yamaha XJR 1200 98 CV, 72 kw 4cil. 4PU 4PU3 Bastidores: 4PU henceforth09101-- 1996
Yamaha XJR 1200 98 CV, 72 kw 4cil. 4PU 4PU7 Bastidores: 4PU henceforth24919-- 1997
Yamaha XJR 1200 98 CV, 72 kw 4cil. 4PU 4PU9 Bastidores: 4PU henceforth31361-- 1998
Yamaha XJR 1200 SP 98 CV, 72 kw 4cil. 4PU 4PU5 Bastidores: 4PU henceforth22962-- 1997
Yamaha XJR 1200 SP 98 CV, 72 kw 4cil. 4PU 4PUB Bastidores: 4PU henceforth33271-- 1998
