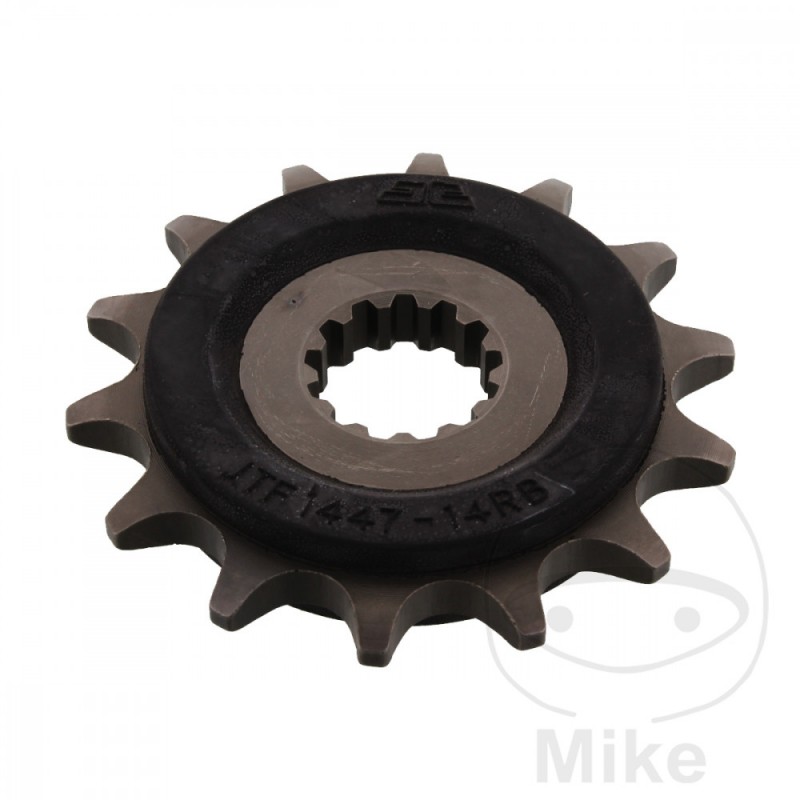

JT SPROCKETS Transmission pinion with rubber 14T 520 726.05.20

The JT Sprockets production is today the largest and most modern production facility for sprockets and sprockets in the world.

equipped with the latest generation of CNC manufacturing machines.

JT Sprockets produces the full range of sprockets and sprockets for the original equipment and aftermarket.



Each pinion and sprocket goes through 25 production stages and undergoes more than ten individual quality tests to successfully leave production.



JT Sprockets manufactures the right way: turning, milling, and drilling. This is the only way to achieve the highest quality with the lowest tolerances and the best tooth profile.

After subsequent heat treatment, each element is checked by hand; this is how JT Sprockets sets new standards of quality in the motorcycle industry.
DIVISION: 520
CENTRAL FIXATION: FINE GEAR
INSIDE DIAMETER MIN.: 19.9 MM
MAX INTERNAL DIAMETER: 22.8 MM
INNER GEAR (QUANTITY OF TEETH): 13
QUANTITY OF HOLES: WITHOUT HOLE
WIDTH: 8.5MM
VERSION: RUBBERIZED
QTY TEETH: 14


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki DL 250 A V-Strom ABS 25 CV, 18,4 kw 2cil. DS12AZ L8 Bastidores: DS12AZ-J1100001-DS12AZ-J1199999 2017-2018
Suzuki DL 250 A V-Strom ABS 25 CV, 18,4 kw 2cil. DS12AZ L9 Bastidores: DS12AZ-K1100001-DS12AZ-K9999999 2019
Suzuki DL 250 A V-Strom ABS 25 CV, 18,4 kw 2cil. DS12AZ M0 Bastidores: DS12AZ-L1100001-DS12AZ-L1999999 2020
Suzuki DL 250 A V-Strom ABS 25 CV, 18,4 kw 2cil. DS12AZ M1 Bastidores: DS12AZ-M1100001-DS12AZ-M1999999 2021
Suzuki GSX 250 RA ABS 25 CV, 18 kw 2cil. DN12AZ L8 Bastidores: DN12AZ-J1100001-DN12AZ-J1199999 2017-2018
Suzuki GSX 250 RA ABS 25 CV, 18 kw 2cil. DN12AZ L9 Bastidores: DN12AZ-K1100001-DN12AZ-K1199999 2019
Suzuki GSX 250 RA ABS 25 CV, 18 kw 2cil. DN12AZ M0 Bastidores: DN12AZ-L1100001-DN12AZ-L1199999 2020-2021
Suzuki GSX 250 RZA ABS 25 CV, 18 kw 2cil. DN12AZ L8 Bastidores: DN12AZ-J1100001-DN12AZ-J1199999 2017-2018
Suzuki GSX 250 RZA ABS 25 CV, 18 kw 2cil. DN12AZ L9 Bastidores: DN12AZ-K1100001-DN12AZ-K1199999 2019
Suzuki GSX 250 RZA ABS 25 CV, 18 kw 2cil. DN12AZ M0 Bastidores: DN12AZ-L1100001-DN12AZ-L1199999 2020-2021
Suzuki GW 250 F Inazuma 24 CV, 18 kw 2cil. DC1121 L5 Bastidores: --- 2015-2016
Suzuki GW 250 F Inazuma 24 CV, 18 kw 2cil. DC1121 L7 Bastidores: DC1121 henceforth1100001-- 2017
Suzuki GW 250 Inazuma 24 CV, 18 kw 2cil. DC1111 L3 Bastidores: DC1111 henceforth1100001-- 2013-2016
Suzuki GW 250 Inazuma 24 CV, 18 kw 2cil. DC1111 L7 Bastidores: DC1111 henceforth1100001-- 2017
Suzuki GW 250 Z Inazuma 24 CV, 18 kw 2cil. DC1111 L7 Bastidores: DC1111 henceforth1100001-- 2015-2017
