JT SPROCKETS Fine gear transmission pinion 13T 520 Ø19/22 726.04.15

The JT Sprockets production is today the largest and most modern production facility for sprockets and sprockets in the world.

equipped with the latest generation of CNC manufacturing machines.

JT Sprockets produces the full range of sprockets and sprockets for the original equipment and aftermarket.



Each pinion and sprocket goes through 25 production stages and undergoes more than ten individual quality tests to successfully leave production.



JT Sprockets manufactures the right way: turning, milling, and drilling. This is the only way to achieve the highest quality with the lowest tolerances and the best tooth profile.

After subsequent heat treatment, each element is checked by hand; this is how JT Sprockets sets new standards of quality in the motorcycle industry.

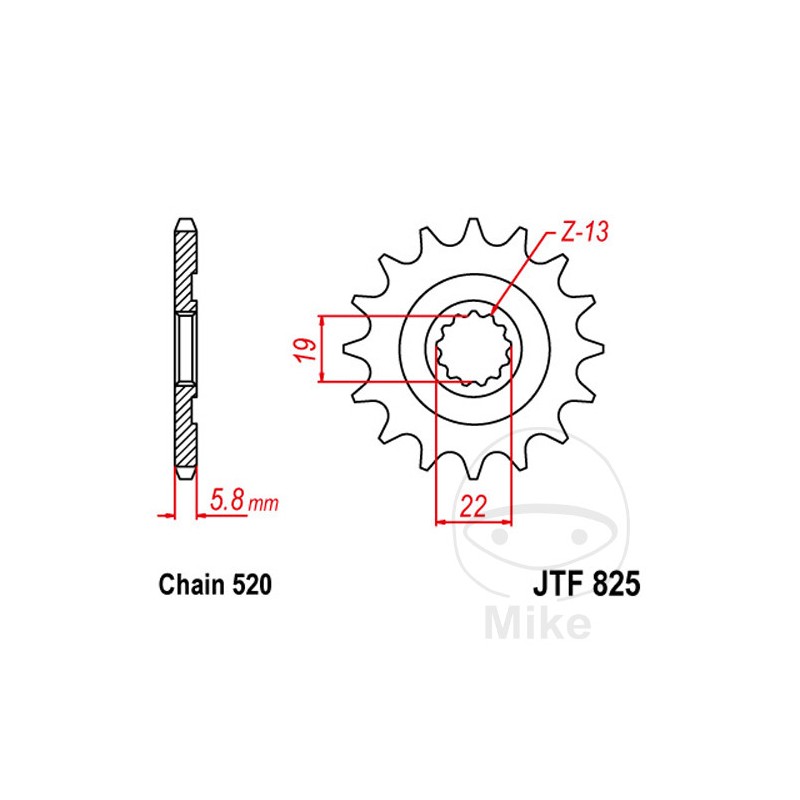

DIVISION: 520
CENTRAL FIXATION: FINE GEAR
INSIDE DIAMETER MIN.: 19 MM
MAX INTERNAL DIAMETER: 22 MM
INNER GEAR (QUANTITY OF TEETH): 13
QUANTITY OF HOLES: WITHOUT HOLE
WIDTH: 5.8MM
VERSION: STANDARD
QTY TEETH: 13


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Husqvarna TC 250 4T 1cil. A300AA Bastidores: ZKH A300AA-AV050001-- 2010
Husqvarna TC 250 ie 1cil. A300AA Bastidores: ZKH A300AA-BV050000-- 2011
Husqvarna TC 250 ie 1cil. A300AA Bastidores: ZKH A300AA-CV050000-- 2012
Husqvarna TC 250 R ie 1cil. A300AA Bastidores: ZKH A300AA-DV050000-- 2013
Husqvarna TE 250 ie 12,2 CV, 9 kw 1cil. A300AA Bastidores: ZKH A300AA-AV000001-ZKHA300AA-AV049999 2010
Husqvarna TE 250 ie 12,2 CV, 9 kw 1cil. A300AA Bastidores: ZKH A300AA-BV000000-ZKH A300AA-BV049999 2011
Husqvarna TE 250 ie 12,2 CV, 9 kw 1cil. A300AA Bastidores: ZKH A300AA-CV000000-- 2012
Husqvarna TE 250 ie 12,2 CV, 9 kw 1cil. A300AA Bastidores: ZKH A300AA-DV000000-- 2013
Husqvarna TE 310 ie 13,6 CV, 10 kw 1cil. A301AA Bastidores: ZKH A301AA-BV000000-- 2011
Husqvarna TE 310 ie 13,6 CV, 10 kw 1cil. A301AA Bastidores: ZKH A301AA-CV000000-- 2012
Husqvarna TE 310 ie 19 CV, 14 kw 1cil. A301AA Bastidores: ZKH A301AA-DV000001-- 2013
