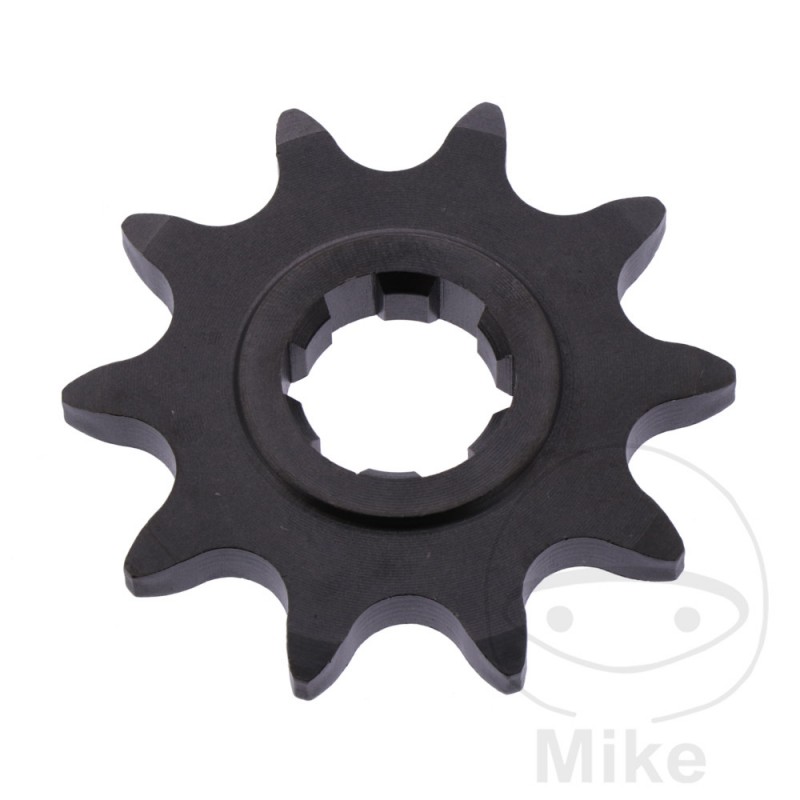

ESJOT coarse gear transmission pinion 10T 520 5 Ø17/20 726.03.41

ESJOT gear designed specifically for high OEM requirements and among the world's best sprockets on the market.

A special steel, high-quality hardening and optimum gearing guarantee extremely high strength and durability - ideal for high-wear conditions in all areas

- Steel 16 MnCR 5

- Worked on CNC lathes

- Hardening of 700 HV 40 for a depth of 0.4 mm

- Modern broaching guarantees an exact fit size on the motor shaft

- Radial and axial runout tolerance of less than 0.1mm

- 100% Made in Germany

- OEM quality
DIVISION: 520
CENTRAL FIXING: COARSE GEAR
INSIDE DIAMETER MIN.: 17 MM
MAX INSIDE DIAMETER: 20 MM
INNER GEAR (QUANTITY OF TEETH): 6
INNER GEAR (DISTANCE): 5 MM
QUANTITY OF HOLES: WITHOUT HOLE
WIDTH: 8MM
VERSION: STANDARD
QTY TEETH: 10


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Sherco Trial 125 125 1cil. - Bastidores: --- 2013-2015
Sherco Trial 125 125 10 CV, 7 kw 1cil. - Bastidores: --- 2007-2012
Sherco Trial 125 125 Anniversary 1cil. - Bastidores: --- 2019
Sherco Trial 125 125 ST 1cil. - Bastidores: --- 2016
Sherco Trial 125 125 ST Factory 1cil. - Bastidores: --- 2016-2017
Sherco Trial 125 125 ST Factory 1cil. - Bastidores: --- 2019-2022
Sherco Trial 125 125 ST Fajardo Replica 1cil. - Bastidores: --- 2020-2021
Sherco Trial 125 125 ST Racing 1cil. - Bastidores: --- 2018-2021
Sherco Trial 250 25 1cil. - Bastidores: --- 2013-2015
Sherco Trial 250 25 17 CV, 12 kw 1cil. - Bastidores: --- 2007-2012
Sherco Trial 250 25 Anniversary 1cil. - Bastidores: --- 2019
Sherco Trial 250 25 ST 1cil. - Bastidores: --- 2016-2017
Sherco Trial 250 25 ST Factory 1cil. - Bastidores: --- 2016-2017
Sherco Trial 250 25 ST Factory 1cil. - Bastidores: --- 2019-2022
Sherco Trial 250 25 ST Fajardo Replica 1cil. - Bastidores: --- 2020-2021
Sherco Trial 250 25 ST Racing 1cil. - Bastidores: --- 2018-2021
Sherco Trial 290 29 1cil. - Bastidores: --- 2013-2015
Sherco Trial 290 29 20 CV, 15 kw 1cil. - Bastidores: --- 2007-2012
Sherco Trial 290 29 Cabestany 20 CV, 15 kw 1cil. - Bastidores: --- 2007-2007
Sherco Trial 290 29 Cabestany 20 CV, 15 kw 1cil. - Bastidores: --- 2012-2012
Sherco Trial 300 30 1cil. - Bastidores: --- 2013-2015
Sherco Trial 300 30 Anniversary 1cil. - Bastidores: --- 2019
Sherco Trial 300 30 Cabestany 1cil. - Bastidores: --- 2013
Sherco Trial 300 30 ST 1cil. - Bastidores: --- 2016-2017
Sherco Trial 300 30 ST Factory 1cil. - Bastidores: --- 2016-2017
Sherco Trial 300 30 ST Factory 1cil. - Bastidores: --- 2019-2022
Sherco Trial 300 30 ST Fajardo Replica 1cil. - Bastidores: --- 2020-2021
Sherco Trial 300 30 ST Racing 1cil. - Bastidores: --- 2018-2021
Sherco Trial 305 30 ST Factory 1cil. - Bastidores: --- 2014-2015
Sherco Trial 305 30 ST Racing 1cil. - Bastidores: --- 2015
Sherco Trial 320 32 1cil. - Bastidores: --- 2007-2009
Sherco Trial 320 32 ST 1cil. - Bastidores: --- 2010-2012
Sherco Trial 80 08 1cil. - Bastidores: --- 2007-2016
Sherco X-Ride 125 1cil. - Bastidores: --- 2012-2019
