ESJOT Fine gear transmission pinion 15T 428 Ø17.7/20 726.02.86

ESJOT sprocket has been specifically developed to meet OEM requirements and is among the world's best sprockets on the market.

A special steel, high-quality hardening and precise teeth provide extremely high strength and durability - ideal for wear-intensive conditions in all areas

- Steel 16 MnCR 5

- worked on CNC lathes

- hardening of 700 HV 40, for a depth of 0.4 mm

- modern broaching ensure a precise fit size on the motor shaft

- radial and axial run-out tolerance of less than 0.1 mm

- 100% Made in Germany

- OEM quality
DIVISION: 428
CENTRAL FIXATION: FINE GEAR

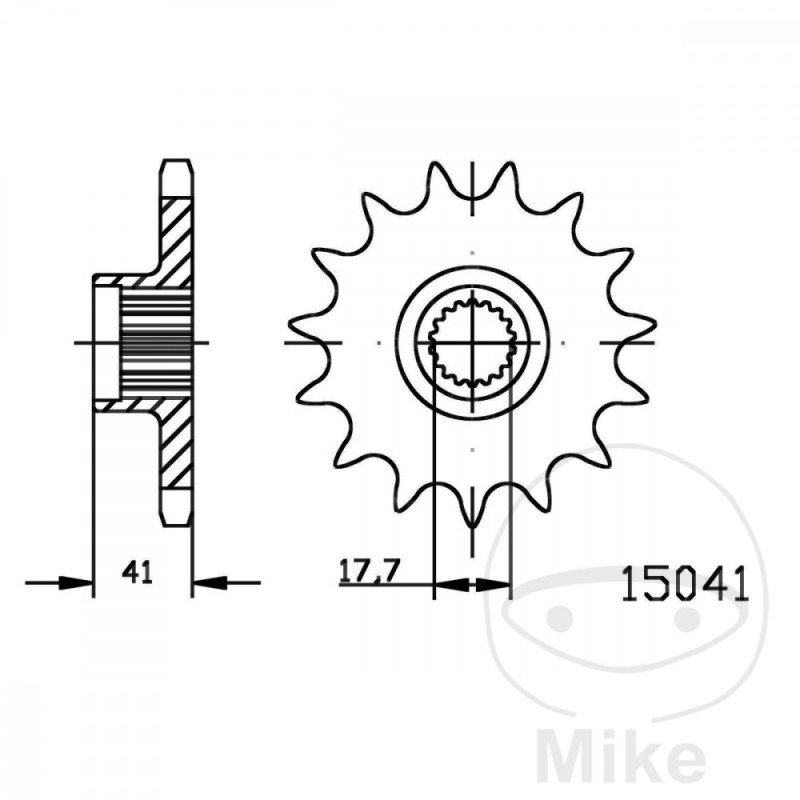

INSIDE DIAMETER MIN.: 17.7 MM
MAX INSIDE DIAMETER: 20 MM
INNER GEAR (QUANTITY OF TEETH): 18
QUANTITY OF HOLES: WITHOUT HOLE
WIDTH: 41MM
VERSION: STANDARD
QTY TEETH: 15


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Adly/Herchee ATV 50 3,8 CV, 2,8 kw 1cil. - Bastidores: --- 2004-2006
Adly/Herchee ATV 50 VG 3,8 CV, 2,8 kw 1cil. - Bastidores: --- 2004-2017
Adly/Herchee ATV 50 VS 3,8 CV, 2,8 kw 1cil. - Bastidores: --- 2004-2009
Aeon Revo 50 Mini Kolt 2WD 3,1 CV, 2,3 kw 1cil. - AT60B Bastidores: --- 2004-2007
Polaris Predator 50 2WD 1cil. - Bastidores: --- 2004-2007
Polaris Predator 90 2WD 1cil. - Bastidores: --- 2003-2004
Polaris Sportsman 90 2T 2WD 1cil. - Bastidores: --- 2002-2006
Polaris Sportsman 90 4T 2WD 5,4 CV, 4 kw 1cil. - Bastidores: --- 2007-2015
