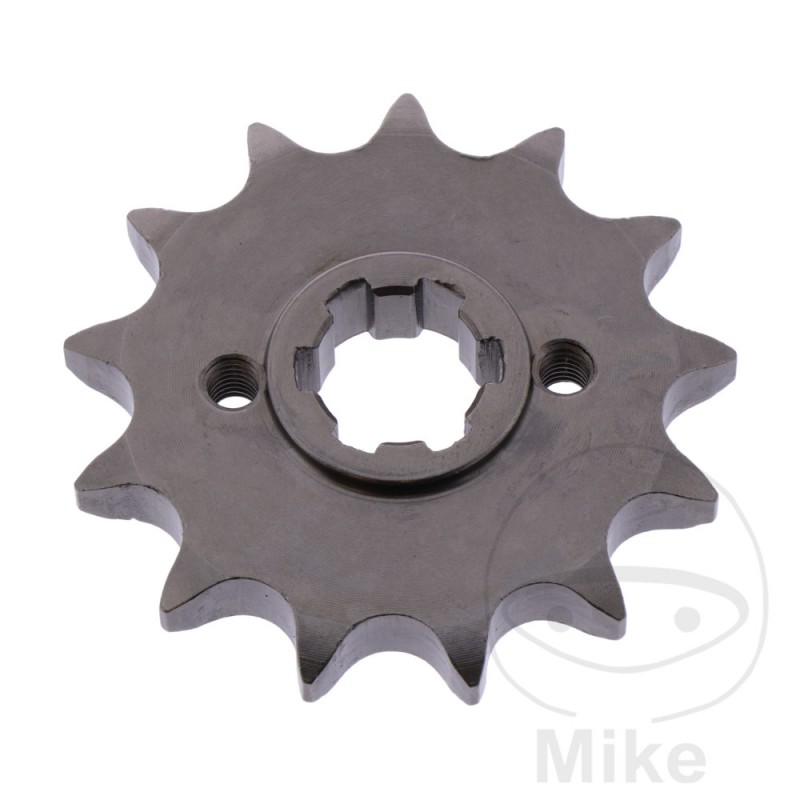

JT SPROCKETS coarse gear transmission pinion 13T 428 4 Ø14/17 726.02.85

JT Sprockets Manufacturing is today the largest and most modern sprocket and pinion manufacturing facility in the world,

equipped with the latest generation of CNC manufacturing machines.

JT Sprockets produces the entire range of sprockets and sprockets for the original equipment and aftermarket.



Each sprocket and sprocket goes through 25 production stages and undergoes more than ten individual quality checks to successfully leave production.



JT Sprockets manufactures the right way - by turning, milling and drilling! This is the only way to achieve the highest quality with the smallest tolerances and the best tooth profile.

After post heat treatment, each item is checked by hand – this is how JT Sprockets sets new quality standards in the motorcycle industry.
DIVISION: 428
CENTRAL FIXING: COARSE GEAR
INSIDE DIAMETER MIN.: 14 MM
MAX INTERNAL DIAMETER: 17 MM
INNER GEAR (QUANTITY OF TEETH): 6
INNER GEAR (DISTANCE): 4 MM
HOLES QUANTITY: 2
HOLES DISTANCE: 28 MM
WIDTH: 9MM
VERSION: STANDARD
QTY TEETH: 13


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Aprilia RS 125 4T ABS 15 CV, 11 kw 1cil. KC000 Bastidores: --- 2017-2020
Aprilia RS 125 4T ABS Euro4 15 CV, 11 kw 1cil. KC000 Bastidores: --- 2021
Aprilia RS 125 4T ABS Euro5 15 CV, 11 kw 1cil. XAA00 Bastidores: --- 2021-2022
Aprilia RS 125 4T Replica ABS 15 CV, 11 kw 1cil. KC000 Bastidores: --- 2017-2020
Aprilia RS 125 4T Replica ABS Euro4 15 CV, 11 kw 1cil. KC000 Bastidores: --- 2021
Aprilia RS 125 GP 4T Replica ABS Euro5 15 CV, 11 kw 1cil. - Bastidores: --- 2023
Aprilia RS 125 GP 4T Replica ABS Euro5 15 CV, 11 kw 1cil. XAA00 Bastidores: --- 2021-2022
Aprilia RS4 125 4T 15 CV, 11 kw 1cil. TW000 Bastidores: --- 2011-2016
Aprilia RS4 125 4T Replica 15 CV, 11 kw 1cil. TW000 Bastidores: --- 2011-2016
Aprilia RX 125 4T ABS 15 CV, 11 kw 1cil. KXA00 Bastidores: --- 2018-2019
Aprilia RX 125 4T ABS 15 CV, 11 kw 1cil. KXJA0 Bastidores: --- 2020
Aprilia RX 125 4T ABS Euro5 15 CV, 11 kw 1cil. KTA00 Bastidores: --- 2021
Aprilia SX 125 4T ABS 15 CV, 11 kw 1cil. KXB00 Bastidores: --- 2018-2020
Aprilia Tuono 125 4T ABS 15 CV, 11 kw 1cil. KCA00 Bastidores: --- 2017-2020
Aprilia Tuono 125 4T ABS Euro4 15 CV, 11 kw 1cil. KCA00 Bastidores: --- 2021
Aprilia Tuono 125 4T ABS Euro5 15 CV, 11 kw 1cil. XAB00 Bastidores: --- 2021-2022
FBMondial HPS 125 i CBS 13,6 CV, 10 kw 1cil. - Bastidores: --- 2017-2019
FBMondial HPS 125 i Limited Edition CBS 13,6 CV, 10 kw 1cil. - Bastidores: --- 2019
FBMondial SMX 125 i Enduro CBS 15 CV, 11 kw 1cil. - Bastidores: --- 2017-2021
FBMondial SMX 125 i Supermoto CBS 15 CV, 11 kw 1cil. - Bastidores: --- 2017-2020
FBMondial Sport Classic 125 i Pagani 1948 ABS 13,6 CV, 10 kw 1cil. - Bastidores: --- 2020-2021
Malaguti Dune 125 Enduro CBS 15 CV, 11 kw 1cil. - Bastidores: --- 2019-2020
Malaguti Dune 125 Enduro CBS Euro4 15 CV, 11 kw 1cil. - Bastidores: --- 2021
Malaguti Dune 125 X Black Edition CBS 15 CV, 11 kw 1cil. - Bastidores: --- 2019-2020
Malaguti Dune 125 X Black Edition CBS Euro4 15 CV, 11 kw 1cil. - Bastidores: --- 2021
Malaguti Monte Pro 125 Anniversay Edition CBS 15 CV, 11 kw 1cil. - Bastidores: --- 2020-2021
Malaguti Monte Pro 125 CBS 15 CV, 11 kw 1cil. - Bastidores: --- 2019-2021
Malaguti RST 125 CBS 15 CV, 11 kw 1cil. - Bastidores: --- 2019-2021
Malaguti XSM 125 Supermoto CBS 15 CV, 11 kw 1cil. - Bastidores: --- 2019-2020
Malaguti XTM 125 Enduro CBS 15 CV, 11 kw 1cil. - Bastidores: --- 2019-2020
UM DSR 125 EX i 14.8 CV, 11 kw 1cil. - UM125-DEX Bastidores: --- 2018-2020
UM DSR 125 i Adventure llanta de fundición 14.8 CV, 11 kw 1cil. - UM125-ADV Bastidores: --- 2018-2020
UM DSR 125 SM i Supermotard 14.8 CV, 11 kw 1cil. - UM125-DSM Bastidores: --- 2018-2020
UM DSR 125 TT ie Adventure llanta de radios 14.8 CV, 11 kw 1cil. - UM125-ADT Bastidores: --- 2018-2020
UM Renegade 125 i Scrambler Classic llanta de radios 14.8 CV, 11 kw 1cil. - UM125-SC Bastidores: --- 2018-2020
UM Renegade 125 S i Scrambler Sport llanta de fundición 14.8 CV, 11 kw 1cil. - UM125-SS Bastidores: --- 2018-2020
Zündapp ZXA 125 ie Adventure CBS 15 CV, 11 kw 1cil. - Bastidores: --- 2018-2020
Zündapp ZXA 125 TT ie Adventure CBS 15 CV, 11 kw 1cil. - Bastidores: --- 2018-2021
Zündapp ZXE 125 ie Enduro CBS 15 CV, 11 kw 1cil. - Bastidores: --- 2018-2021
Zündapp ZXM 125 ie Supermoto CBS 15 CV, 11 kw 1cil. - Bastidores: --- 2018-2021
Zündapp ZXS 125 ie Scrambler CBS 15 CV, 11 kw 1cil. - Bastidores: --- 2018-2021
Zündapp ZXS 125 S ie Sport CBS 15 CV, 11 kw 1cil. - Bastidores: --- 2018-2021
