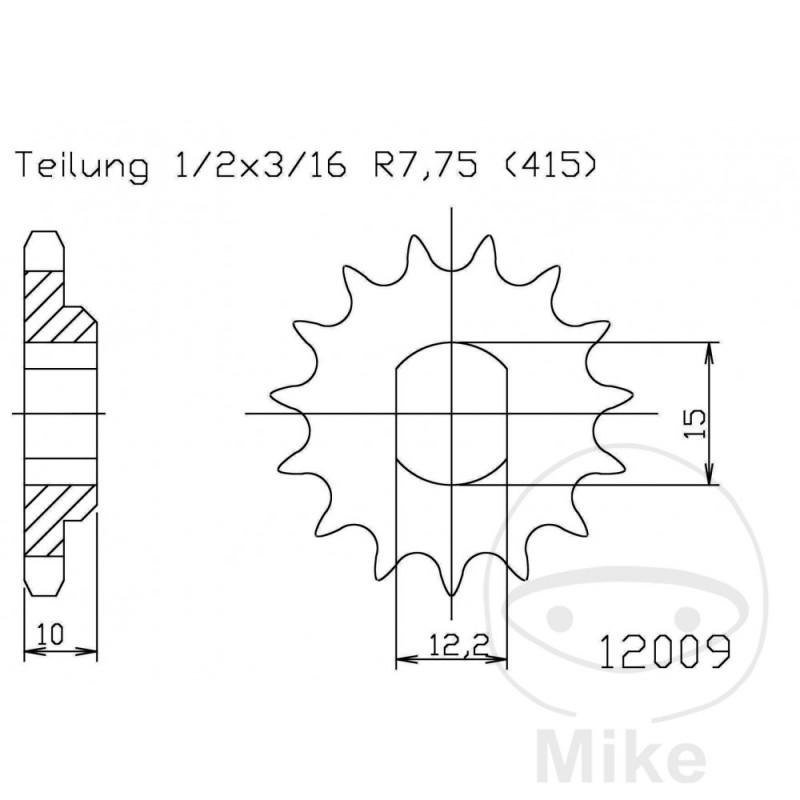

ESJOT Transmission sprocket long hole 11T 415 12.2/15 726.02.72

ESJOT sprocket has been specifically developed to meet OEM requirements and is among the world's best sprockets on the market.

A special steel, high-quality hardening and precise teeth provide extremely high strength and durability - ideal for wear-intensive conditions in all areas

- Steel 16 MnCR 5

- worked on CNC lathes

- hardening of 700 HV 40, for a depth of 0.4 mm

- modern broaching ensure a precise fit size on the motor shaft

- radial and axial run-out tolerance of less than 0.1 mm

- 100% Made in Germany

- OEM quality
DIVISION: 415
CENTER FIXATION: LANGLOCH
INSIDE DIAMETER MIN.: 12.2 MM
MAX INTERNAL DIAMETER: 15 MM
QUANTITY OF HOLES: WITHOUT HOLE
WIDTH: 10MM
VERSION: STANDARD
QTY TEETH: 11


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Beta Minicross 50 R10 3,3 CV, 2,4 kw 1cil. - Bastidores: --- 2005-2017
Beta Minicross 50 R12 3,8 CV, 2,8 kw 1cil. - Bastidores: --- 2005-2017
Beta Minitrial 70 LC 3,3 CV, 2,4 kw 1cil. - Bastidores: --- 2013-2017
Husqvarna CR 50 11,2 CV, 8,2 kw 1cil. CR5030BV Bastidores: ZKH CR5030-BV000001-- 2011-2014
Husqvarna SM 50 11,2 CV, 8,2 kw 1cil. SM5050BV Bastidores: ZKH SM5030-BV000001-- 2011-2016
