JT SPROCKETS Fine gear transmission pinion 12T 520 Ø20/22 726.00.66

JT Sprockets Manufacturing is today the largest and most modern production facility for sprockets and pinions worldwide,

equipped, among others, with the latest generation of CNC manufacturing machines.

JT Sprockets produces the entire range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages, going through more than ten individual quality controls to successfully leave the production line.

JT Sprockets manufactures the right way - turning, milling and drilling! This is the only way to achieve the highest quality with the tightest tolerances and the best tooth profile.

After post heat treatment, each item is checked by hand, thus setting new JT Sprockets quality standards in the motorcycle industry.

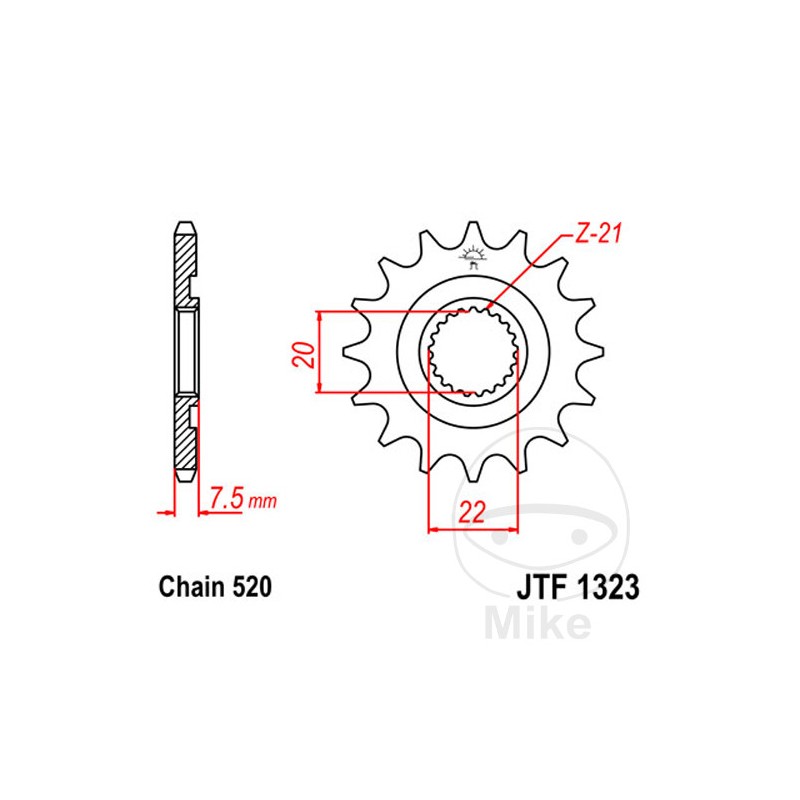

DIVISION: 520
CENTRAL FIXATION: FINE GEAR
INSIDE DIAMETER MIN.: 20 MM
MAX INTERNAL DIAMETER: 22 MM
INNER GEAR (QUANTITY OF TEETH): 21
QUANTITY OF HOLES: WITHOUT HOLE
WIDTH: 7.5MM
VERSION: STANDARD
QTY TEETH: 12


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
HM-Moto CRE-F 250 R 42,1 CV, 31 kw 1cil. F250NEC 5 Bastidores: ZENF250NEC0500001-ZENF250NEC0599999 2005
HM-Moto CRE-F 250 R 42,1 CV, 31 kw 1cil. F250NEC 6 Bastidores: ZENF250NEC0600001-ZENF250NEC0699999 2006
HM-Moto CRE-F 250 R 42,1 CV, 31 kw 1cil. F250NEC 7 Bastidores: ZENF250NEC0700001-- 2007
HM-Moto CRE-F 250 R 42,1 CV, 31 kw 1cil. F250NEC 8 Bastidores: ZENF250NEC0800001-- 2008
HM-Moto CRE-F 250 R 42,1 CV, 31 kw 1cil. H250REC 8 Bastidores: ZENH250REC8800001-- 2008
HM-Moto CRE-F 250 R 42,1 CV, 31 kw 1cil. H250REC 9 Bastidores: ZENH250REC8900001-- 2009
HM-Moto CRE-F 250 R 42,1 CV, 31 kw 1cil. H250REC 9 Bastidores: ZENH250REC9900001-- 2009
HM-Moto CRE-F 250 R ie 13 CV, 9,5 kw 1cil. J2500EC 12 Bastidores: ZENFJ2500EC200001-ZENFJ2500EC299999 2012
HM-Moto CRE-F 250 R ie 13 CV, 9,5 kw 1cil. J2500ED 13 Bastidores: ZENFJ2500ED300001-ZENFJ2500ED399999 2013
HM-Moto CRE-F 250 R ie 44,1 CV, 32,4 kw 1cil. H250REC A Bastidores: ZENH250REC0100001-- 2010
HM-Moto CRE-F 250 R ie 44,1 CV, 32,4 kw 1cil. H250REC B Bastidores: ZENH250REC1100001-- 2011
HM-Moto CRE-F 250 X 1cil. F250XEC 4 Bastidores: ZENF250XEC0400001-ZENF250XEC0499999 2004
HM-Moto CRE-F 250 X 1cil. F250XEC 5 Bastidores: ZENF250XEC0500001-ZENF250XEC0599999 2005
HM-Moto CRE-F 250 X 1cil. F250XEC 6 Bastidores: ZENF250XEC0600001-ZENF250XEC0699999 2006
HM-Moto CRE-F 250 X 1cil. F250XEC 7 Bastidores: ZENF250XEC0700001-ZENF250XEC0799999 2007
HM-Moto CRE-F 250 X 1cil. F250XEC 8 Bastidores: ZENF250XEC0800001-- 2008
HM-Moto CRE-F 250 X 1cil. H250XEC 8 Bastidores: ZENH250XEC8800001-- 2008
HM-Moto CRE-F 250 X 29,8/21,5 CV, 21,9/15,8 kw 1cil. H250XEC 8 Bastidores: ZENH250XEC8900001-ZENH250XEC8999999 2008
HM-Moto CRE-F 250 X 29,8/21,5 CV, 21,9/15,8 kw 1cil. H250XEC 9 Bastidores: ZENH250XEC9000001-- 2009
HM-Moto CRE-F 250 X 29,8/21,5 CV, 21,9/15,8 kw 1cil. H250XEC 9 Bastidores: ZENH250XEC9900001-- 2009
HM-Moto CRE-F 250 X 29,8/21,5 CV, 21,9/15,8 kw 1cil. H250XEC A Bastidores: ZENH250XEC9900001-- 2010
HM-Moto CRE-F 250 X 29,8/21,5 CV, 21,9/15,8 kw 1cil. H250XEC B Bastidores: ZENH250XEC1100001-- 2011-2013
HM-Moto CRE-F 250 X ie 1cil. F25XJEC 7 Bastidores: ZENF25XJEC0700001-ZENF25XJEC0799999 2007
HM-Moto CRE-F 250 X ie 1cil. F25XJEC 8 Bastidores: ZENF25XJEC8800001-- 2008
HM-Moto CRE-F 290 X ie 1cil. F29XJEC 7 Bastidores: ZENF29XJEC0700001-ZENF29XJEC0799999 2007
HM-Moto CRE-F 290 X ie 1cil. F29XJEC 8 Bastidores: ZENF29XJEC8800001-- 2008
HM-Moto CRE-F 300 R ie 20,4 CV, 15 kw 1cil. FJ3000EC 12 Bastidores: ZENFJ3000EC200001-ZENFJ3000EC299999 2012
HM-Moto CRE-F 300 R ie 20,4 CV, 15 kw 1cil. FJ3000ED 13 Bastidores: ZENFJ3000ED300001-ZENFJ3000ED399999 2013
HM-Moto CRE-F 300 X 32/18,2 CV, 23,6/13,4 kw 1cil. H290XEC 8 Bastidores: ZENH290XEC8800001-ZENH290XEC8899999 2008
HM-Moto CRE-F 300 X 32/18,2 CV, 23,6/13,4 kw 1cil. H290XEC 9 Bastidores: ZENH290XEC8900001-ZENH290XEC8999999 2009
HM-Moto CRE-F 300 X 32/18,2 CV, 23,6/13,4 kw 1cil. H290XEC 9 Bastidores: ZENH290XEC9900001-- 2009-2010
HM-Moto CRE-F 300 X 32/18,2 CV, 23,6/13,4 kw 1cil. H290XEC B Bastidores: ZENH290XEC1100001-- 2011-2013
Honda CR 125 R 41 CV, 30 kw 1cil. JE01A 4 Bastidores: JH2 JE01A-4M800001-JH2 JE01A-4M899999 2004
Honda CR 125 R 42 CV, 31 kw 1cil. JE01A 5 Bastidores: JH2 JE01A-5M900001-JH2 JE01A-5M999999 2005
Honda CR 125 R 42 CV, 31 kw 1cil. JE01A 6 Bastidores: JH2 JE01A-6M000001-JH2 JE01A-6M099999 2006
Honda CR 125 R 42,6 CV, 31,3 kw 1cil. JE01A 7 Bastidores: JH2 JE01A-7M100001-- 2007
Honda CRF 250 R 38,1 CV, 28 kw 1cil. ME10A D Bastidores: JH2 ME10A-DK900001-- 2013
Honda CRF 250 R 38,1 CV, 28 kw 1cil. ME10A E Bastidores: JH2 ME10A-EK100001-JH2 ME10A-EK199999 2014
Honda CRF 250 R 38,1 CV, 28 kw 1cil. ME10A F Bastidores: JH2 ME10A-FK200001-JH2 ME10A-FK299999 2015
Honda CRF 250 R 40 CV, 29,4 kw 1cil. ME10A G Bastidores: JH2 ME10A-GK300001-JH2 ME10A-GK399999 2016
Honda CRF 250 R 40 CV, 29,4 kw 1cil. ME10A H Bastidores: JH2 ME10A-HK400001-- 2017
Honda CRF 250 R 42,1 CV, 31 kw 1cil. ME10A 4 Bastidores: JH2 ME10A-4K010001-JH2 ME10A-4K099999 2004
Honda CRF 250 R 42,1 CV, 31 kw 1cil. ME10A 4 Bastidores: JH2 ME10A-4M000001-JH2 ME10A-4M009999 2004
Honda CRF 250 R 42,1 CV, 31 kw 1cil. ME10A 5 Bastidores: JH2 ME10A-5K110001-JH2 ME10A-5K149999 2005
Honda CRF 250 R 42,1 CV, 31 kw 1cil. ME10A 5 Bastidores: JH2 ME10A-5M100001-JH2 ME10A-5M109999 2005
Honda CRF 250 R 42,1 CV, 31 kw 1cil. ME10A 5 Bastidores: JH2 ME10A-5M150001-JH2 ME10A-5M199999 2005
Honda CRF 250 R 42,1 CV, 31 kw 1cil. ME10A 6 Bastidores: JH2 ME10A-6K210001-JH2 ME10A-6K219999 2006
Honda CRF 250 R 42,1 CV, 31 kw 1cil. ME10A 6 Bastidores: JH2 ME10A-6M200001-JH2 ME10A-6M209999 2006
Honda CRF 250 R 42,1 CV, 31 kw 1cil. ME10A 6 Bastidores: JH2 ME10A-6M230001-JH2 ME10A-6M239999 2006
Honda CRF 250 R 42,1 CV, 31 kw 1cil. ME10A 7 Bastidores: JH2 ME10A-7K310001-JH2 ME10A-7K319999 2007
Honda CRF 250 R 42,1 CV, 31 kw 1cil. ME10A 7 Bastidores: JH2 ME10A-7M300001-JH2 ME10A-7M309999 2007
Honda CRF 250 R 42,1 CV, 31 kw 1cil. ME10A 7 Bastidores: JH2 ME10A-7M330001-JH2 ME10A-7M339999 2007
Honda CRF 250 R 42,1 CV, 31 kw 1cil. ME10A 8 Bastidores: JH2 ME10A-8K410001-JH2 ME10A-8K419999 2008
Honda CRF 250 R 42,1 CV, 31 kw 1cil. ME10A 8 Bastidores: JH2 ME10A-8M400001-JH2 ME10A-8M409999 2008
Honda CRF 250 R 43,5 CV, 32 kw 1cil. ME10A 9 Bastidores: JH2 ME10A-9K500001-- 2009
Honda CRF 250 R 43,5 CV, 32 kw 1cil. ME10A B Bastidores: JH2 ME10A-BK700001-JH2 ME10A-BK799999 2011
Honda CRF 250 R 43,5 CV, 32 kw 1cil. ME10A C Bastidores: JH2 ME10A-CK800001-JH2 ME10A-CK899999 2012
Honda CRF 250 R 44 CV, 32,4 kw 1cil. ME10A A Bastidores: JH2 ME10A-AK600001-JH2 ME10A-AK699999 2010
Honda CRF 250 RE 40 CV, 29,4 kw 1cil. - G Bastidores: --- 2016
Honda CRF 250 RE 40 CV, 29,4 kw 1cil. - H Bastidores: --- 2017
Honda CRF 250 X 1cil. ME11A 9 Bastidores: JH2 ME11A-9K500001-JH2 ME11A-9K509999 2009-2010
Honda CRF 250 X 1cil. ME11A B Bastidores: JH2 ME11A-BK600001-JH2 ME11A-BK699999 2011
Honda CRF 250 X 28 CV, 21 kw 1cil. ME11A 4 Bastidores: JH2 ME11A-4K000001-JH2 ME11A-4K099999 2004
Honda CRF 250 X 28 CV, 21 kw 1cil. ME11A 5 Bastidores: JH2 ME11A-5K110001-JH2 ME11A-5K199999 2005
Honda CRF 250 X 28 CV, 21 kw 1cil. ME11A 6 Bastidores: JH2 ME11A-6K210001-JH2 ME11A-6K219999 2006
Honda CRF 250 X 28 CV, 21 kw 1cil. ME11A 6 Bastidores: JH2 ME11A-6M200001-JH2 ME11A-6M209999 2006
Honda CRF 250 X 28 CV, 21 kw 1cil. ME11A 6 Bastidores: JH2 ME11A-6M220001-JH2 ME11A-6M229999 2006
Honda CRF 250 X 28 CV, 21 kw 1cil. ME11A 7 Bastidores: JH2 ME11A-7K310001-JH2 ME11A-7K319999 2007
Honda CRF 250 X 28 CV, 21 kw 1cil. ME11A 7 Bastidores: JH2 ME11A-7M300001-JH2 ME11A-7M309999 2007
Honda CRF 250 X 28 CV, 21 kw 1cil. ME11A 7 Bastidores: JH2 ME11A-7M320001-JH2 ME11A-7M329999 2007
Honda CRF 250 X 28 CV, 21 kw 1cil. ME11A 8 Bastidores: JH2 ME11A-8K410001-JH2 ME11A-8K419999 2008
Honda CRF 250 X 28 CV, 21 kw 1cil. ME11A 8 Bastidores: JH2 ME11A-8M400001-JH2 ME11A-8M409999 2008
Honda CRF 250 X 29,8 CV, 21,9 kw 1cil. ME11A C Bastidores: JH2 ME11A-CK700001-- 2012
Honda CRF 250 X 29,8 CV, 21,9 kw 1cil. ME11A D Bastidores: JH2 ME11A-DK800001-- 2013-2019
