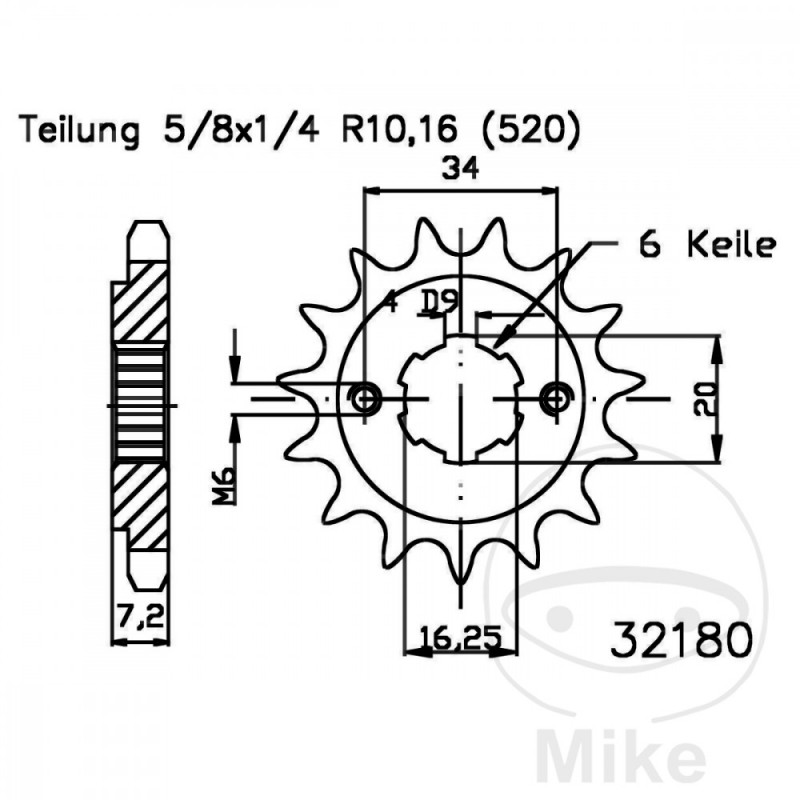

ESJOT coarse gear transmission pinion 13T 520 6 Ø16.2/20 726.00.49

ESJOT sprocket has been specifically developed to meet OEM requirements and is among the world's best sprockets on the market.

A special steel, high-quality hardening and precise teeth provide extremely high strength and durability - ideal for wear-intensive conditions in all areas

- Steel 16 MnCR 5

- worked on CNC lathes

- hardening of 700 HV 40, for a depth of 0.4 mm

- modern broaching ensure a precise fit size on the motor shaft

- radial and axial run-out tolerance of less than 0.1 mm

- 100% Made in Germany

- OEM quality
DIVISION: 520
CENTRAL FIXING: COARSE GEAR
INSIDE DIAMETER MIN.: 16.25 MM
MAX INSIDE DIAMETER: 20 MM
INNER GEAR (QUANTITY OF TEETH): 6
INNER GEAR (DISTANCE): 4 MM
HOLES QUANTITY: 2
HOLES DISTANCE: 34 MM
WIDTH: 7.2MM
VERSION: STANDARD
QTY TEETH: 13


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
SYM CR 300 i Wolf Cafe Racer ABS 27,2 CV, 20 kw 1cil. PF30A3-EU Bastidores: --- 2018-2021
SYM Wolf 250 N i SB250Ni 25,5 CV, 18,7 kw 1cil. PD25A1-6 Bastidores: --- 2013-2016
