JT SPROCKETS coarse gear transmission pinion 15T 520 ALTN: 7260353 726.00.44

JT Sprockets Manufacturing is today the largest and most modern production facility for sprockets and pinions worldwide,

equipped, among others, with the latest generation of CNC manufacturing machines.

JT Sprockets produces the entire range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages, going through more than ten individual quality controls to successfully leave the production line.

JT Sprockets manufactures the right way - turning, milling and drilling! This is the only way to achieve the highest quality with the tightest tolerances and the best tooth profile.

After post heat treatment, each item is checked by hand, thus setting new JT Sprockets quality standards in the motorcycle industry.

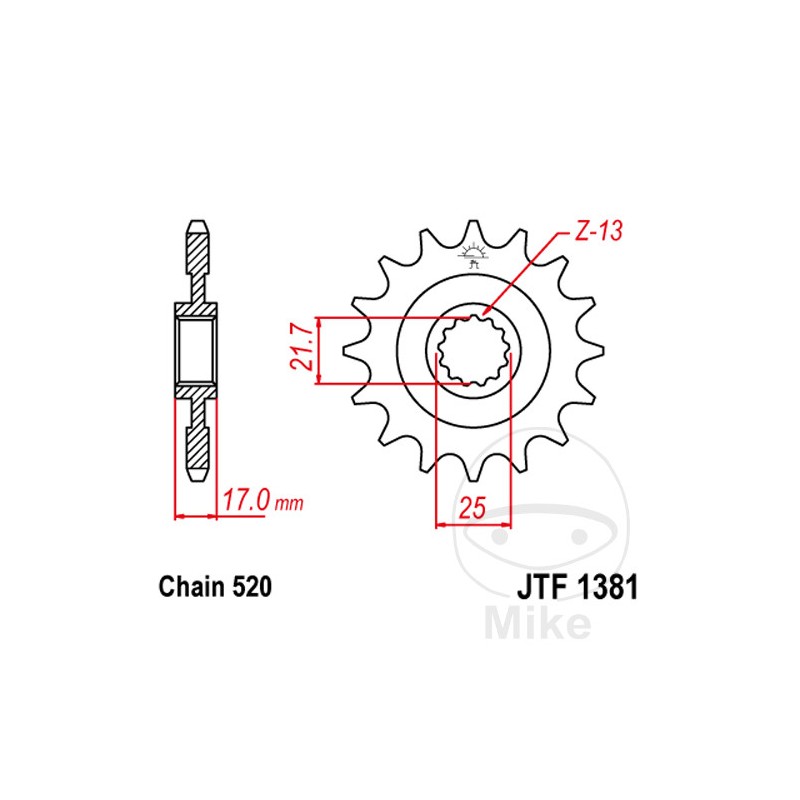

DIVISION: 520
CENTRAL FIXING: COARSE GEAR
INSIDE DIAMETER MIN.: 21.7 MM
MAX INTERNAL DIAMETER: 25 MM
INNER GEAR (QUANTITY OF TEETH): 13
QUANTITY OF HOLES: WITHOUT HOLE
WIDTH: 17MM
VERSION: STANDARD
QTY TEETH: 15


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Brixton Crossfire 500 ABS 48 CV, 35 kw 2cil. - Bastidores: --- 2020-2022
Brixton Crossfire 500 X ABS 48 CV, 35 kw 2cil. - Bastidores: --- 2020-2022
Brixton Crossfire 500 XC ABS 48 CV, 35 kw 2cil. - Bastidores: --- 2022
Honda CB 500 F 48 CV, 35 kw 2cil. PC45A D Bastidores: MLH PC45A-D5000001-MLH PC45A-D5999999 2013
Honda CB 500 F 48 CV, 35 kw 2cil. PC45A E Bastidores: MLH PC45A-E5100001-MLH PC45A-E5199999 2014
Honda CB 500 F 48 CV, 35 kw 2cil. PC45A F Bastidores: MLH PC45A-F5200001-- 2015
Honda CB 500 FA ABS 48 CV, 35 kw 2cil. PC45B D Bastidores: MLH PC45B-D5000001-MLH PC45B-D5999999 2013
Honda CB 500 FA ABS 48 CV, 35 kw 2cil. PC45B E Bastidores: MLH PC45B-E5100001-MLH PC45B-E5199999 2014
Honda CB 500 FA ABS 48 CV, 35 kw 2cil. PC45B F Bastidores: MLH PC45B-F5200001-- 2015
Honda CB 500 FA ABS 48 CV, 35 kw 2cil. PC45B G Bastidores: MLH PC45B-G5300001-MLH PC45B-G5399999 2016
Honda CB 500 FA ABS 48 CV, 35 kw 2cil. PC58A H Bastidores: MLH PC58A-H5000001-MLH PC58A-H5099999 2017
Honda CB 500 FA ABS 48 CV, 35 kw 2cil. PC58A J Bastidores: MLH PC58A-J5100001-- 2018
Honda CB 500 FA ABS 48 CV, 35 kw 2cil. PC63A K Bastidores: MLH PC63A-K5000001-MLH PC63A-K5099999 2019-2020
Honda CB 500 FA ABS 48 CV, 35 kw 2cil. PC63A M Bastidores: MLH PC63A-M5100001-MLH PC63A-M5199999 2021
Honda CB 500 FA ABS 48 CV, 35 kw 2cil. PC63A N Bastidores: MLH PC63A-N5200001-- 2022
Honda CB 500 X 48 CV, 35 kw 2cil. PC46A F Bastidores: MLH PC46A-F5200001-- 2015
Honda CB 500 XA ABS 48 CV, 35 kw 2cil. PC46B D Bastidores: MLH PC46B-D5000001-MLH PC46B-D5099999 2013
Honda CB 500 XA ABS 48 CV, 35 kw 2cil. PC46B E Bastidores: MLH PC46B-E5100001-MLH PC46B-E5199999 2014
Honda CB 500 XA ABS 48 CV, 35 kw 2cil. PC46B F Bastidores: MLH PC46B-F5200001-- 2015
Honda CB 500 XA ABS 48 CV, 35 kw 2cil. PC46B G Bastidores: MLH PC46B-G5300001-MLH PC46B-G5399999 2016
Honda CB 500 XA ABS 48 CV, 35 kw 2cil. PC59A H Bastidores: MLH PC59A-H5000001-- 2017
Honda CB 500 XA ABS 48 CV, 35 kw 2cil. PC59A J Bastidores: MLH PC59A-J5100001-- 2018
Honda CB 500 XA ABS 48 CV, 35 kw 2cil. PC64A K Bastidores: MLH PC64A-K5000001-MLH PC64A-K5099999 2019-2020
Honda CB 500 XA ABS 48 CV, 35 kw 2cil. PC64A M Bastidores: MLH PC64A-M5100001-MLH PC64A-M5199999 2021
Honda CB 500 XA ABS 48 CV, 35 kw 2cil. PC64A N Bastidores: MLH PC64A-N5200001-- 2022
Honda CBR 500 RA ABS 48 CV, 35 kw 2cil. PC44B D Bastidores: MLH PC44B-D5000001-MLH PC44B-D5999999 2013
Honda CBR 500 RA ABS 48 CV, 35 kw 2cil. PC44B E Bastidores: MLH PC44B-E5100001-- 2014
Honda CBR 500 RA ABS 48 CV, 35 kw 2cil. PC44B F Bastidores: MLH PC44B-F5200001-- 2015
Honda CBR 500 RA ABS 48 CV, 35 kw 2cil. PC44B G Bastidores: MLH PC44B-G5300001-MLH PC44B-G5399999 2016
Honda CBR 500 RA ABS 48 CV, 35 kw 2cil. PC57A H Bastidores: MLH PC57A-H5000001-MLH PC57A-H5099999 2017
Honda CBR 500 RA ABS 48 CV, 35 kw 2cil. PC57A J Bastidores: MLH PC57A-J5100001-- 2018
Honda CBR 500 RA ABS 48 CV, 35 kw 2cil. PC62A K Bastidores: MLH PC62A-KK5000001-MLH PC62A-K5099999 2019-2020
Honda CBR 500 RA ABS 48 CV, 35 kw 2cil. PC62A M Bastidores: MLH PC62A-M5100001-- 2021
Honda CBR 500 RA ABS 48 CV, 35 kw 2cil. PC62A N Bastidores: MLH PC62A-N5200001-- 2022
Honda CMX 500 A Rebel ABS 46 CV, 34 kw 2cil. PC56A H Bastidores: MLH PC56A-H5000001-MLH PC56A-H5099999 2017-2018
Honda CMX 500 A Rebel ABS 46 CV, 34 kw 2cil. PC56A K Bastidores: MLH PC56A-K5100001-- 2019
Honda CMX 500 A Rebel ABS 46 CV, 34 kw 2cil. PC56A L Bastidores: MLH PC56A-L5200001-MLH PC56A-L5299999 2020-2021
Honda CMX 500 A Rebel ABS 46 CV, 34 kw 2cil. PC56A N Bastidores: MLH PC56A-N5300001-MLH PC56A-N5399999 2022
Honda CMX 500 S A2 Rebel Special Edition ABS 46 CV, 34 kw 2cil. PC56A L Bastidores: MLH PC56A-L5200001-MLH PC56A-L5299999 2020-2021
Honda CMX 500 S A2 Rebel Special Edition ABS 46 CV, 34 kw 2cil. PC56A N Bastidores: MLH PC56A-L5300001-MLH PC56A-N5399999 2022
